Series	Category	Parts	Status	Description

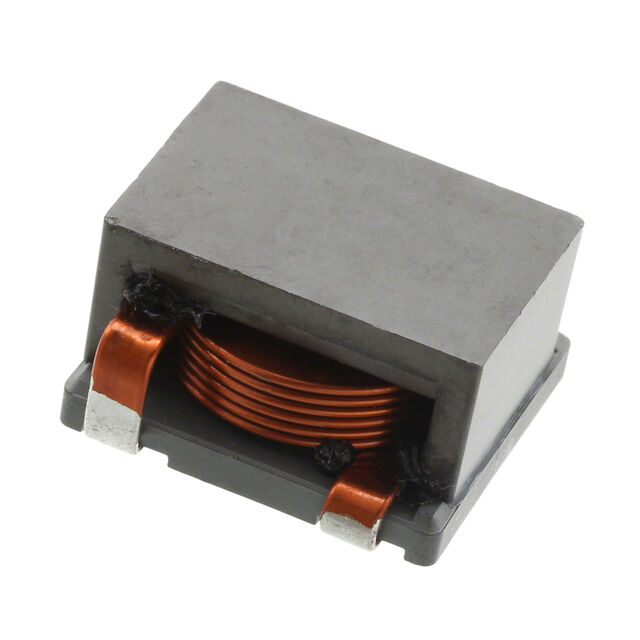

HA65A	Inductors, Coils, Chokes	4	Unknown

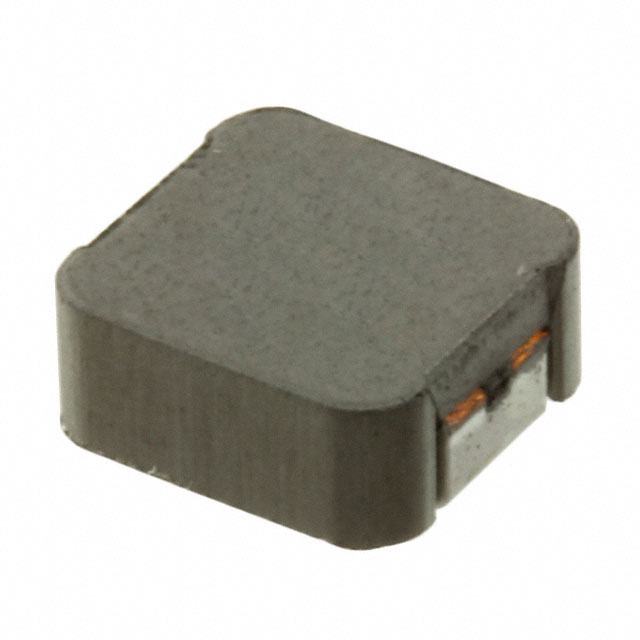

HA72E	Fixed Inductors	14	Unknown

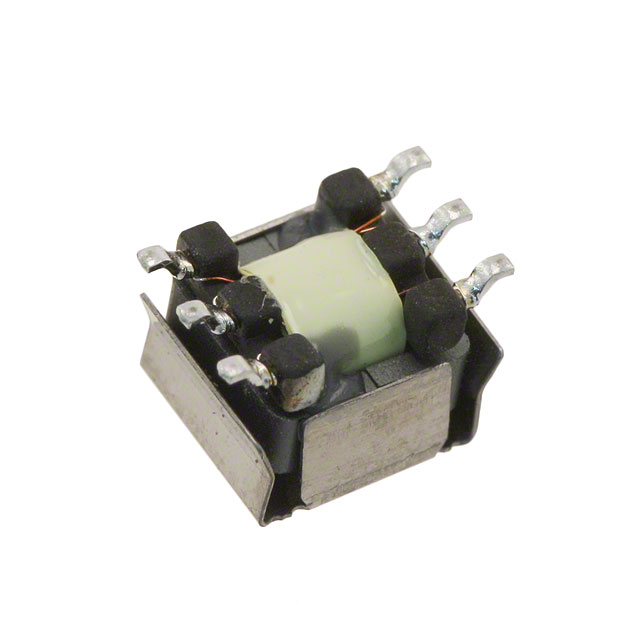

HM42	Pulse Transformers	3	Unknown
HM65	Inductors, Coils, Chokes	1	Unknown
HM66	Fixed Inductors	4	Unknown

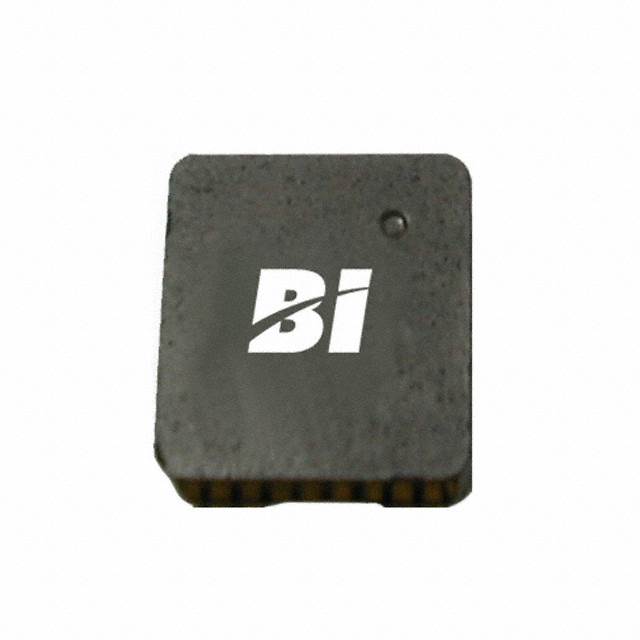

HM72A	Inductors, Coils, Chokes	2	Unknown
HM72B	Inductors, Coils, Chokes	3	Unknown

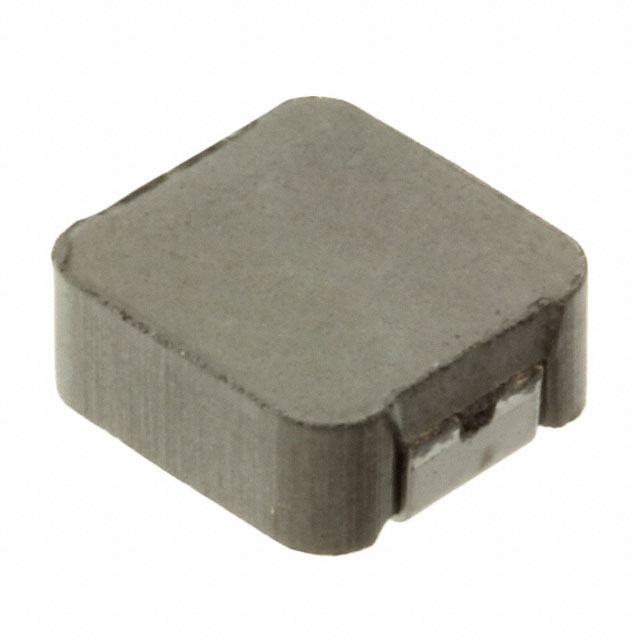

HM72E	Inductors, Coils, Chokes	11	Unknown
HM73	Inductors, Coils, Chokes	3	Unknown

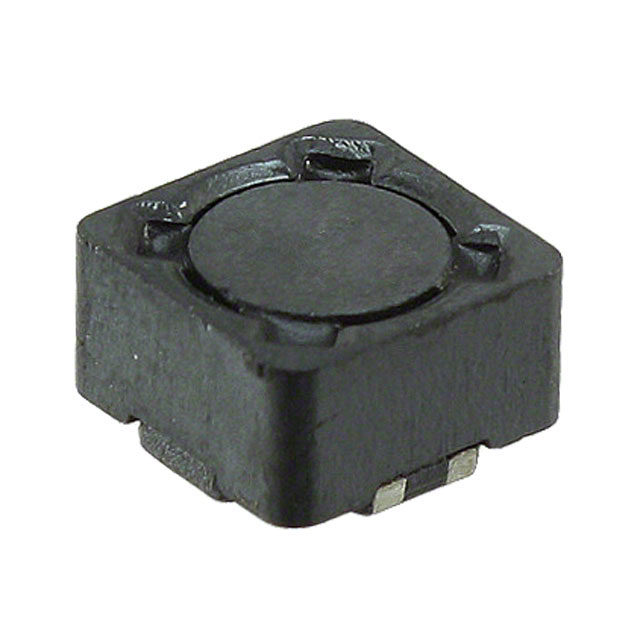

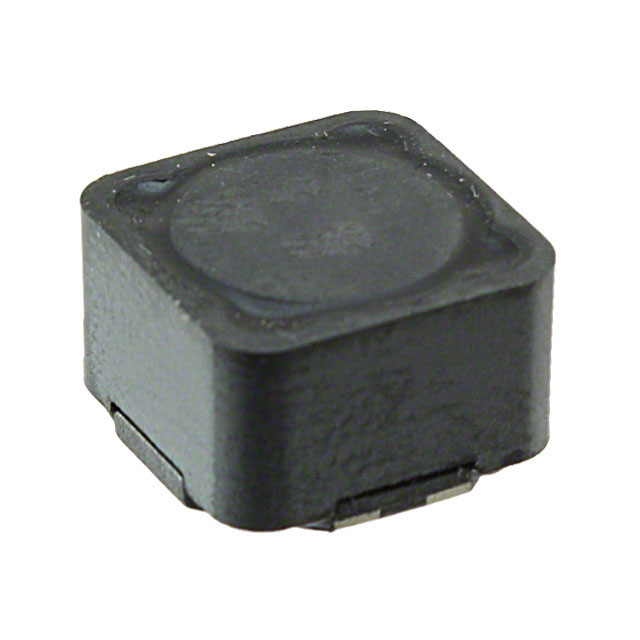

HM78D	Inductors, Coils, Chokes	20	Unknown

Standalone parts(2)

Parts from TT Electronics/BI Magnetics that are not part of a series

Part Information	Pricing (lowest)	Current - Saturation (Isat)	Package / Case	Shielding	Height - Seated (Max)	Current Rating	Inductance Frequency - Test	Mounting Type	Size / Dimension Length	Size / Dimension Width	Tolerance	Operating Temperature (Max)	Operating Temperature (Min)	Inductance	DC Resistance (DCR) (Max)	DC Resistance (DCR) - Series (Max)	Inductance - Connected In Series	Current Rating - Parallel	Current Rating - Series	Inductance - Connected In Parallel	DC Resistance (DCR) - Parallel (Max)	Current Saturation - Parallel	Current Saturation - Series	Number of Coils	Height
HM73-10R47LFTR13 TT Electronics/BI Magnetics FIXED IND 470NH 15A 3.16MOHM SMD	Sign in to see pricing Log in Sign up free	23 A	Nonstandard	Shielded	0.157 in	15 A	100 kHz	Surface Mount	0.285 in	0.265 in	20 %	155 °C	-40 °C	470 nH	3.16 mOhm	—	—	—	—	—	—	—	—	—	—
HM78D-1210100MLFTR TT Electronics/BI Magnetics INDUCT ARRAY 2 COIL 10UH SMD	Sign in to see pricing Log in Sign up free	—	Nonstandard	Shielded	—	—	—	Surface Mount	0.492 in	0.492 in	20 %	125 °C	-40 °C	—	—	80 mOhm	41.12 µH	3.2 A	1.6 A	10 µH	20 mOhm	11.75 A	5.85 A	2	0.413 in
