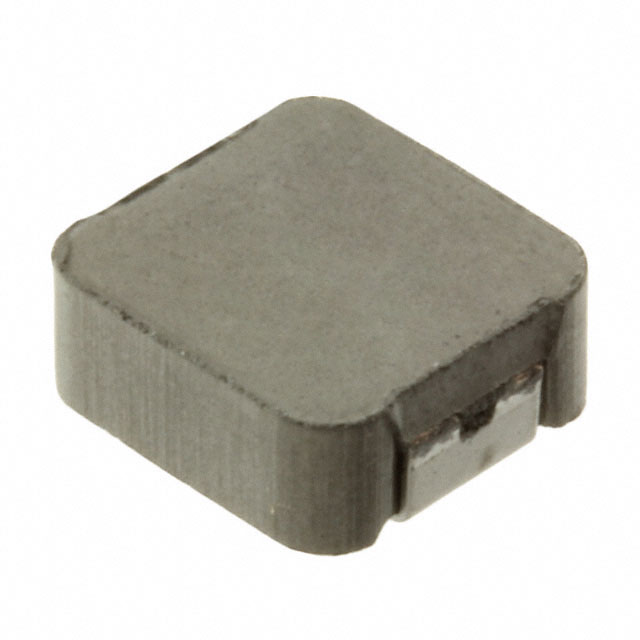

HM72E Series
Manufacturer: TT Electronics/BI Magnetics
Beta
⌘K
FIXED IND 1.5UH 27A 3 MOHM SMD
| Part | DC Resistance (DCR) | Package / Case | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Inductance Frequency - Test | Shielding | Current - Saturation (Isat) | Type | Current Rating (Amps) | Tolerance | Inductance | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TT Electronics/BI Magnetics | 3 mOhm | Nonstandard | Surface Mount | -40 C | 155 C | 100 kHz | Unshielded | 27 A | Molded | 27 A | 20 % | 1.5 µH | 6.5 mm | 0.256 in | 0.512 " | 0.549 in | 13.95 mm | 13 mm | |||
 TT Electronics/BI Magnetics | 14 mOhm | 2-SMD | Surface Mount | -40 C | 155 C | 100 kHz | Unshielded | 10 A | Molded | 8.4 A | 20 % | 1.5 µH | 0.268 " | 0.285 " | 7.23 mm | 6.8 mm | 0.118 " | 3 mm | |||
TT Electronics/BI Magnetics | 2-SMD | Surface Mount | -40 C | 155 C | 100 kHz | Unshielded | 6.5 A | Molded | 5.4 A | 20 % | 4.7 ÁH | 0.268 " | 0.285 " | 7.23 mm | 6.8 mm | 0.118 " | 3 mm | 42 mOhm | |||
TT Electronics/BI Magnetics | 2-SMD | Surface Mount | -40 C | 155 C | 100 kHz | Unshielded | 2.5 A | Molded | 1.8 A | 20 % | 33 µH | 0.268 " | 0.285 " | 7.23 mm | 6.8 mm | 0.118 " | 3 mm | 332 mOhm | |||
TT Electronics/BI Magnetics | 2-SMD | Surface Mount | -40 C | 155 C | 100 kHz | Unshielded | 22 A | Molded | 18 A | 20 % | 330 nH | 0.268 " | 0.285 " | 7.23 mm | 6.8 mm | 0.118 " | 3 mm | 3.9 mOhm | |||
TT Electronics/BI Magnetics | 2-SMD | Surface Mount | -40 C | 155 C | 100 kHz | Unshielded | 8 A | Molded | 6.6 A | 20 % | 3.3 µH | 0.268 " | 0.285 " | 7.23 mm | 6.8 mm | 0.118 " | 3 mm | 30 mOhm | |||
TT Electronics/BI Magnetics | 4.2 mOhm | Nonstandard | Surface Mount | -40 C | 155 C | 100 kHz | Unshielded | 24 A | Molded | 22 A | 20 % | 2.2 µH | 6.5 mm | 0.256 in | 0.512 " | 0.549 in | 13.95 mm | 13 mm | |||
TT Electronics/BI Magnetics | 6.8 mOhm | Nonstandard | Surface Mount | -40 C | 155 C | 100 kHz | Unshielded | 20 A | Molded | 18 A | 20 % | 3.3 µH | 6.5 mm | 0.256 in | 0.512 " | 0.549 in | 13.95 mm | 13 mm | |||
TT Electronics/BI Magnetics | 17.2 mOhm | Nonstandard | Surface Mount | -40 C | 155 C | 100 kHz | Unshielded | 9 A | Molded | 10 A | 20 % | 10 µH | 6.5 mm | 0.256 in | 0.512 " | 0.549 in | 13.95 mm | 13 mm | |||
TT Electronics/BI Magnetics | 40.5 mOhm | Nonstandard | Surface Mount | -40 C | 155 C | 100 kHz | Unshielded | 8 A | Molded | 5 A | 20 % | 20 µH | 6.5 mm | 0.256 in | 0.512 " | 0.549 in | 13.95 mm | 13 mm |
