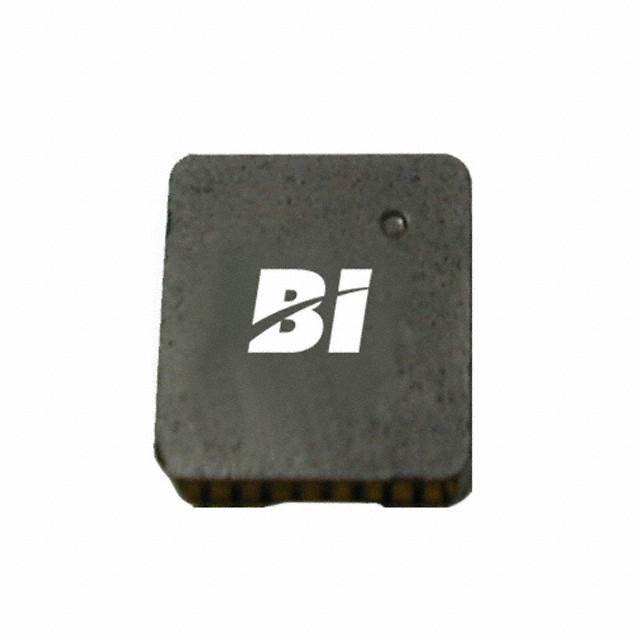

HM72A Series
Manufacturer: TT Electronics/BI Magnetics
Beta
⌘K
FIXED IND 3.3UH 6.6A 28 MOHM SMD
| Part | Type | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Tolerance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Shielding | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | DC Resistance (DCR) | Inductance Frequency - Test | Mounting Type | Inductance | Current - Saturation (Isat) | Height - Seated (Max) | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TT Electronics/BI Magnetics | Molded | 6.6 A | 130 °C | -40 C | Nonstandard | 20 % | 6.8 mm | 7.23 mm | 0.268 " | 0.285 " | Unshielded | 0.118 " | 3 mm | 28 mOhm | 100 kHz | Surface Mount | 3.3 µH | 13.5 A | ||
TT Electronics/BI Magnetics | Molded | 12 Amps | 130 °C | -40 C | Nonstandard | 20 % | 10.5 mm | 11.5 mm | 0.413 in | 0.453 " | Unshielded | 5.8 mOhm | 100 kHz | Surface Mount | 1.5 µH | 27.5 A | 4 mm | 0.157 in |
