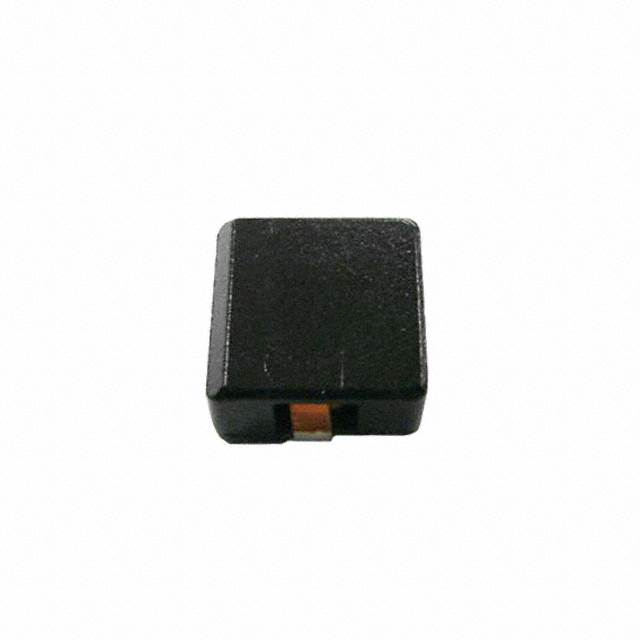

HM73 Series
Manufacturer: TT Electronics/BI Magnetics
Beta
⌘K
FIXED IND 470NH 17A 1.55 MOHM
| Part | Inductance Frequency - Test | Shielding | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Inductance | DC Resistance (DCR) | Height - Seated (Max) | Height - Seated (Max) [Max] | Current - Saturation (Isat) | Mounting Type | Tolerance | Current Rating (Amps) | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | DC Resistance (DCR) [Max] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TT Electronics/BI Magnetics | 100 kHz | Shielded | Nonstandard | -40 C | 155 C | 470 nH | 1.55 mOhm | 4 mm | 0.157 in | 35 A | Surface Mount | 20 % | 17 A | 11.7 mm | 0.461 " | 0.413 in | 10.5 mm | |||
TT Electronics/BI Magnetics | 100 kHz | Shielded | Nonstandard | -40 C | 155 C | 10 µH | 0.197 in | 10 A | Surface Mount | 20 % | 6 A | 13 mm | 0.512 " | 0.512 " | 13 mm | 26 mOhm | 5 mm | |||
TT Electronics/BI Magnetics | 100 kHz | Shielded | Nonstandard | -40 C | 155 C | 500 nH | 1 mOhm | 49 A | Surface Mount | 20 % | 40 A | 14.1 mm | 0.555 in | 0.512 " | 13 mm | 0.256 in | 6.5 mm |
