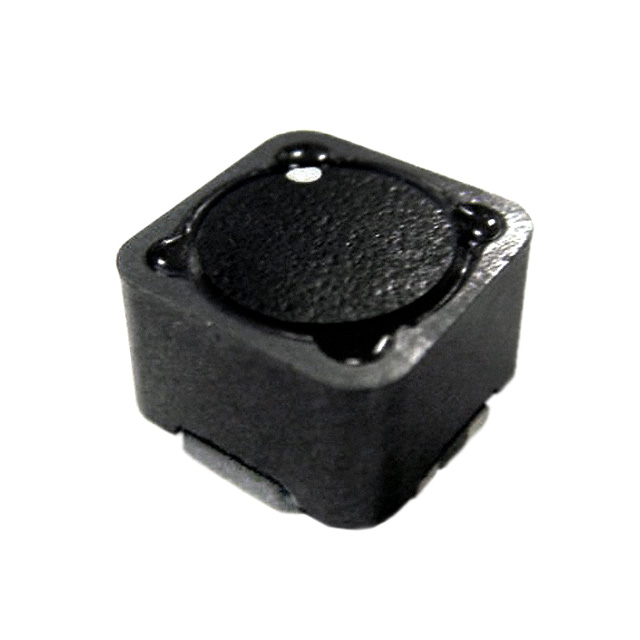

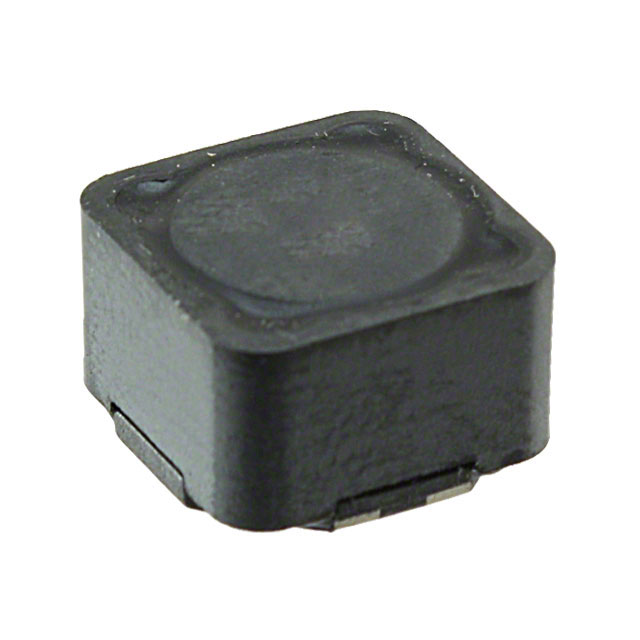

HM78D Series

Manufacturer: TT Electronics/BI Magnetics

Catalog

INDUCT ARRAY 2 COIL 8.2UH SMD

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current Rating - Series	DC Resistance (DCR) - Parallel [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Height [z]	Height [z]	Number of Coils	Current Saturation - Parallel	Inductance - Connected In Series	Tolerance	DC Resistance (DCR) - Series [Max]	Mounting Type	Current Saturation - Series	Package / Case	Shielding	Inductance - Connected In Parallel	Current Rating - Parallel	DC Resistance (DCR) - Parallel	DC Resistance (DCR) - Series	Height	Height
TT Electronics/BI Magnetics HM78D-12108R2MLFTR	12.5 mm	0.492 "	12.5 mm	0.492 "	1.125 A	18 mOhm	125 °C	-40 C	10.5 mm	0.413 in	2	12.85 A	32.8 µH	20 %	72 mOhm	Surface Mount	6.45 A	Nonstandard	Shielded	8.2 µH	2.25 A
TT Electronics/BI Magnetics HM78D-128151KLFTR	12.5 mm	0.492 "	12.5 mm	0.492 "	890 mA		125 °C	-40 C	8.05 mm	0.317 in	2	2.8 A	600 µH	10 %		Surface Mount	1.4 A	Nonstandard	Shielded	150 µH	1.8 A	230 mOhm	920 mOhm
TT Electronics/BI Magnetics HM78D-128680MLFTR	12.5 mm	0.492 "	12.5 mm	0.492 "	1.3 A		125 °C	-40 C	8.05 mm	0.317 in	2	4.1 A	272 µH	20 %		Surface Mount	2.1 A	Nonstandard	Shielded	68 µH	2.6 A	105 mOhm	420 mOhm
TT Electronics/BI Magnetics HM78D-1286R8MLFTR	12.5 mm	0.492 "	12.5 mm	0.492 "	3.4 A		125 °C	-40 C	8.05 mm	0.317 in	2	13.1 A	27.2 µH	20 %		Surface Mount	6.4 A	Nonstandard	Shielded	6.8 µH	6.9 A	24 mOhm	96 mOhm
TT Electronics/BI Magnetics HM78D-7556R8MLFTR	7.7 mm	0.303 in	7.7 mm	0.303 "	1.3 A		125 °C	-40 C			2	3.67 A	29.38 µH	20 %		Surface Mount	1.84 A	Nonstandard	Shielded	6.8 µH	2.6 A	41.8 mOhm	167 mOhm	0.189 in	4.8 mm
TT Electronics/BI Magnetics HM78D-1284R7MLFTR	12.5 mm	0.492 "	12.5 mm	0.492 "	3.6 A		125 °C	-40 C	8.05 mm	0.317 in	2	14.9 A	18.8 µH	20 %		Surface Mount	7.7 A	Nonstandard	Shielded	4.7 µH	7.4 A	19 mOhm	76 mOhm
TT Electronics/BI Magnetics HM78D-128471KLFTR	12.5 mm	0.492 "	12.5 mm	0.492 "	430 mA		125 °C	-40 C	8.05 mm	0.317 in	2	1.6 A	1.88 mH	10 %		Surface Mount	800 mA	Nonstandard	Shielded	470 µH	870 mA	765 mOhm	3.06 Ohm

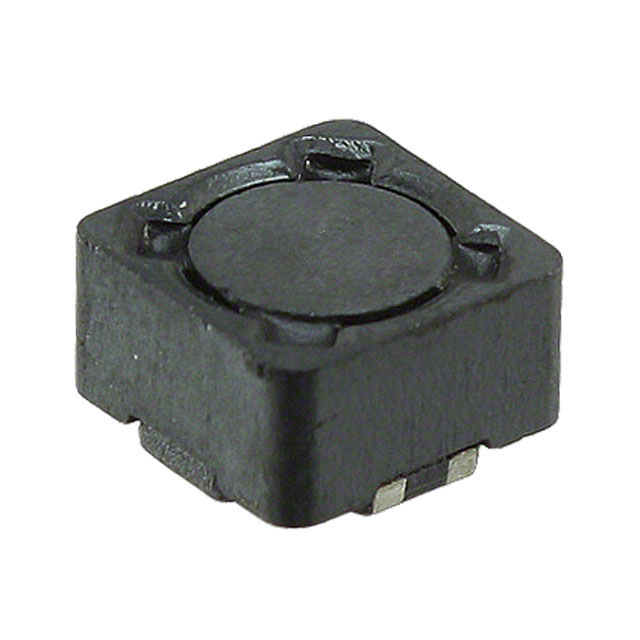

TT Electronics/BI Magnetics HM78D-755151MLFTR	7.7 mm	0.303 in	7.7 mm	0.303 "	346 mA		125 °C	-40 C			2	810 mA	600 µH	20 %		Surface Mount	410 mA	Nonstandard	Shielded	150 µH	690 mA	591 mOhm	2.37 Ohm	0.189 in	4.8 mm
TT Electronics/BI Magnetics HM78D-128330MLFTR	12.5 mm	0.492 "	12.5 mm	0.492 "	1.7 A		125 °C	-40 C	8.05 mm	0.317 in	2		132 µH	20 %		Surface Mount	3.1 A	Nonstandard	Shielded	33 µH	4.2 A	75 mOhm	300 mOhm
TT Electronics/BI Magnetics HM78D-755220MLFTR	7.7 mm	0.303 in	7.7 mm	0.303 "	874 mA		125 °C	-40 C			2	2.13 A	86.92 µH	20 %		Surface Mount	1.07 A	Nonstandard	Shielded		1.75 A	92.5 mOhm	371 mOhm	0.189 in	4.8 mm
