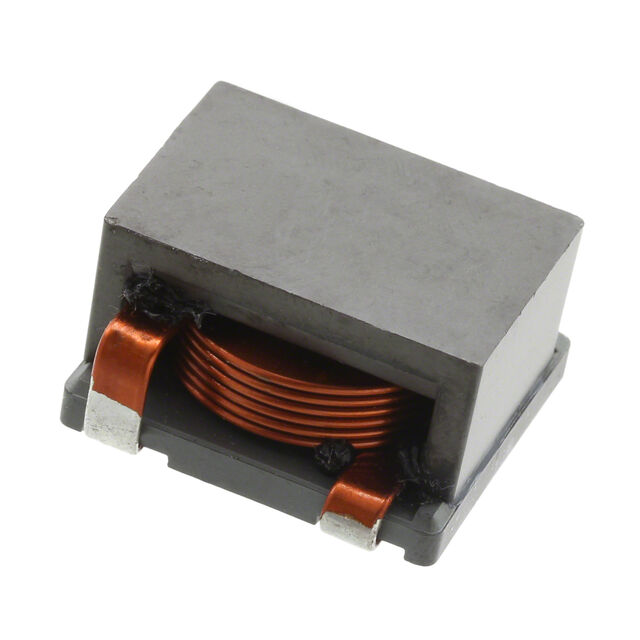

HA65A Series
Manufacturer: TT Electronics/BI Magnetics
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
FIXED IND 4.7UH 2.6 MOHM SMD
| Part | Shielding | Operating Temperature (Max) | Operating Temperature (Min) | Mounting Type | Inductance Frequency - Test | Frequency - Self Resonant | Current - Saturation (Isat) | Size / Dimension Length | Size / Dimension Width | Type | Tolerance | Ratings | DC Resistance (DCR) (Max) | Package / Case | Height - Seated (Max) | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TT Electronics/BI Magnetics | Unshielded | 155 °C | -40 °C | Surface Mount | 100 kHz | 21 MHz | 61 A | 1.043 in | 1.043 in | Wirewound | 10 % | AEC-Q200 | 2.6 mOhm | Nonstandard | 0.61 in | 4.7 µH |
TT Electronics/BI Magnetics | Unshielded | 155 °C | -40 °C | Surface Mount | 100 kHz | 9 MHz | 22 A | 1.043 in | 1.043 in | Wirewound | 10 % | AEC-Q200 | 2.6 mOhm | Nonstandard | 0.61 in | 22 µH |
TT Electronics/BI Magnetics | Unshielded | 155 °C | -40 °C | Surface Mount | 100 kHz | 6 MHz | 10.3 A | 1.043 in | 1.043 in | Wirewound | 10 % | AEC-Q200 | 2.6 mOhm | Nonstandard | 0.61 in | 33 µH |
TT Electronics/BI Magnetics | Unshielded | 155 °C | -40 °C | Surface Mount | 100 kHz | 24 MHz | 87 A | 1.043 in | 1.043 in | Wirewound | 10 % | AEC-Q200 | 2.6 mOhm | Nonstandard | 0.61 in | 3.3 µH |
