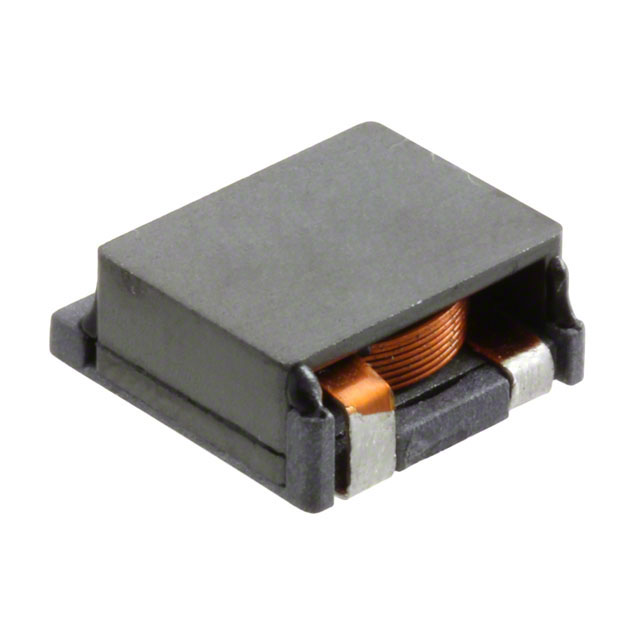

HM65 Series
Manufacturer: TT Electronics/BI Magnetics
Beta
⌘K
FIXED IND 8.2UH 4.5A 11.4 MOHM
| Part | Inductance Frequency - Test | Current Rating (Amps) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Type | Tolerance | DC Resistance (DCR) [Max] | Package / Case | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Shielding | Mounting Type | Inductance | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TT Electronics/BI Magnetics | 100 kHz | 4.5 A | 5.6 mm | 0.22 in | Wirewound | 20 % | 11.4 mOhm | Nonstandard | 12.5 mm | 13.5 mm | 0.531 in | 0.492 " | Unshielded | Surface Mount | 8.2 µH | 130 °C | -40 C |
