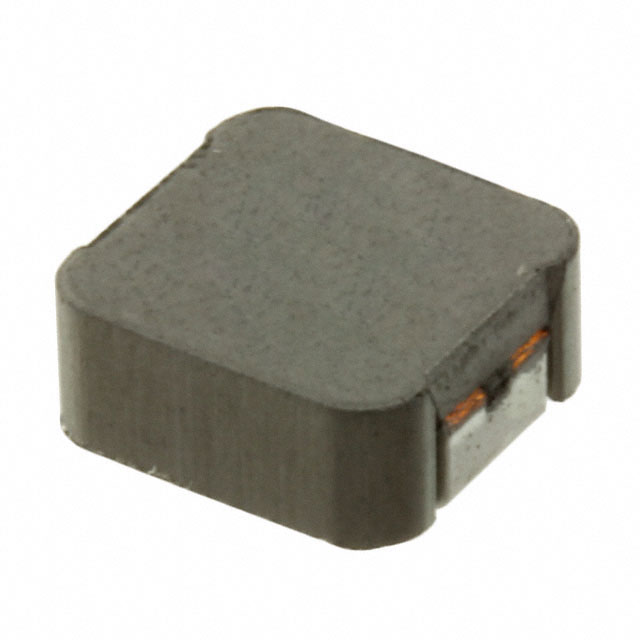

HA72E Series
Manufacturer: TT Electronics/BI Magnetics
Beta
⌘K
FIXED IND 1UH 32A 2 MOHM SMD
| Part | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Shielding | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Current - Saturation (Isat) | Mounting Type | Tolerance | Inductance Frequency - Test | Operating Temperature [Min] | Operating Temperature [Max] | Type | Ratings | DC Resistance (DCR) [Max] | Inductance | Current Rating (Amps) | Package / Case | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TT Electronics/BI Magnetics | 6.5 mm | 0.256 in | Unshielded | 0.512 " | 0.549 in | 13.95 mm | 13 mm | 31 A | Surface Mount | 20 % | 100 kHz | -40 C | 155 C | Molded | AEC-Q200 | 2 mOhm | 1 µH | 32 A | Nonstandard | |||
 TT Electronics/BI Magnetics | Unshielded | 0.268 " | 0.285 " | 7.23 mm | 6.8 mm | 6.5 A | Surface Mount | 20 % | 100 kHz | -40 C | 155 C | Molded | AEC-Q200 | 42 mOhm | 4.7 ÁH | 5.4 A | 2-SMD | 0.118 " | 3 mm | |||
TT Electronics/BI Magnetics | 6.5 mm | 0.256 in | Unshielded | 0.512 " | 0.549 in | 13.95 mm | 13 mm | 20 A | Surface Mount | 20 % | 100 kHz | -40 C | 155 C | Molded | AEC-Q200 | 3.3 µH | 18 A | Nonstandard | 6.8 mOhm | |||
TT Electronics/BI Magnetics | Unshielded | 0.268 " | 0.285 " | 7.23 mm | 6.8 mm | 8 A | Surface Mount | 20 % | 100 kHz | -40 C | 155 C | Molded | AEC-Q200 | 30 mOhm | 3.3 µH | 6.6 A | 2-SMD | 0.118 " | 3 mm | |||
TT Electronics/BI Magnetics | Unshielded | 0.268 " | 0.285 " | 7.23 mm | 6.8 mm | 8.5 A | Surface Mount | 20 % | 100 kHz | -40 C | 155 C | Molded | AEC-Q200 | 20 mOhm | 2.2 µH | 8.3 Amps | 2-SMD | 0.118 " | 3 mm | |||
TT Electronics/BI Magnetics | 6.5 mm | 0.256 in | Unshielded | 0.512 " | 0.549 in | 13.95 mm | 13 mm | 9 A | Surface Mount | 20 % | 100 kHz | -40 C | 155 C | Molded | AEC-Q200 | 10 µH | 10 A | Nonstandard | 17.2 mOhm | |||
TT Electronics/BI Magnetics | Unshielded | 0.268 " | 0.285 " | 7.23 mm | 6.8 mm | 10 A | Surface Mount | 20 % | 100 kHz | -40 C | 155 C | Molded | AEC-Q200 | 1.5 µH | 8.4 A | 2-SMD | 0.118 " | 3 mm | 14 mOhm | |||
TT Electronics/BI Magnetics | 6.5 mm | 0.256 in | Unshielded | 0.512 " | 0.549 in | 13.95 mm | 13 mm | 8 A | Surface Mount | 20 % | 100 kHz | -40 C | 155 C | Molded | AEC-Q200 | 20 µH | 5 A | Nonstandard | 40.5 mOhm | |||
TT Electronics/BI Magnetics | 6.5 mm | 0.256 in | Unshielded | 0.512 " | 0.549 in | 13.95 mm | 13 mm | 24 A | Surface Mount | 20 % | 100 kHz | -40 C | 155 C | Molded | AEC-Q200 | 2.2 µH | 22 A | Nonstandard | 4.2 mOhm | |||
TT Electronics/BI Magnetics | 6.5 mm | 0.256 in | Unshielded | 0.512 " | 0.549 in | 13.95 mm | 13 mm | 35 A | Surface Mount | 20 % | 100 kHz | -40 C | 155 C | Molded | AEC-Q200 | 0.68 µH | 35 A | Nonstandard | 1.6 mOhm |
