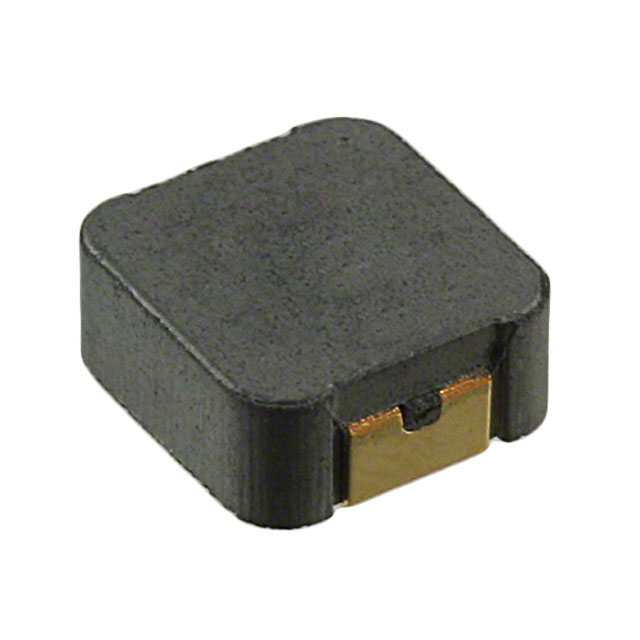

HM72B Series
Manufacturer: TT Electronics/BI Magnetics
Beta
⌘K
FIXED IND 150NH 23.3A 2.5 MOHM
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Tolerance | Package / Case | Inductance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Type | Operating Temperature [Max] | Operating Temperature [Min] | Inductance Frequency - Test | Current Rating (Amps) | Shielding | DC Resistance (DCR) [Max] | Current - Saturation (Isat) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TT Electronics/BI Magnetics | 6.8 mm | 7.23 mm | 0.268 " | 0.285 " | 20 % | Nonstandard | 150 nH | 0.118 " | 3 mm | Molded | 130 °C | -40 C | 100 kHz | 23.3 A | Unshielded | 2.5 mOhm | 52 A | Surface Mount |
TT Electronics/BI Magnetics | 6.8 mm | 7.23 mm | 0.268 " | 0.285 " | 20 % | Nonstandard | 220 nH | 0.118 " | 3 mm | Molded | 130 °C | -40 C | 100 kHz | 20.3 A | Unshielded | 2.8 mOhm | 40 A | Surface Mount |
TT Electronics/BI Magnetics | 6.8 mm | 7.23 mm | 0.268 " | 0.285 " | 20 % | Nonstandard | 6.8 µH | 0.118 " | 3 mm | Molded | 130 °C | -40 C | 100 kHz | 4.1 A | Unshielded | 68 mOhm | 8 A | Surface Mount |
