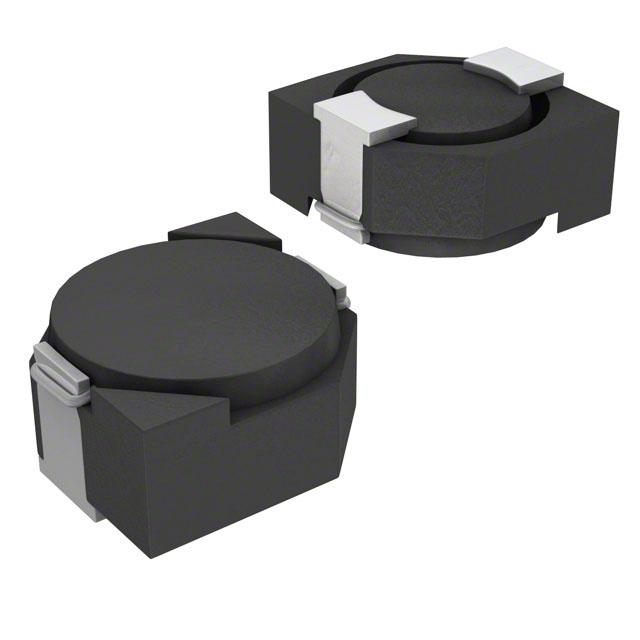

HM66 Series

Catalog

FIXED IND 12UH 1.55A 70 MOHM SMD

Part	Inductance Frequency - Test	DC Resistance (DCR)	Type	Package / Case	Tolerance	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Shielding	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max)	Height - Seated (Max) [Max]	DC Resistance (DCR) [Max]

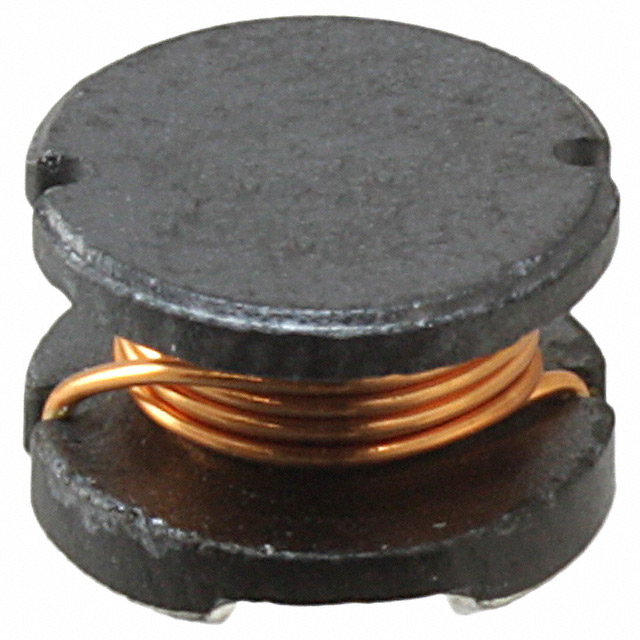

TT Electronics/BI Magnetics HM66-60120LFTR13	10 kHz	70 mOhm	Wirewound	Nonstandard	20 %	Surface Mount	0.118 "	3 mm	Shielded	1.55 A	125 °C	-40 C	12 µH

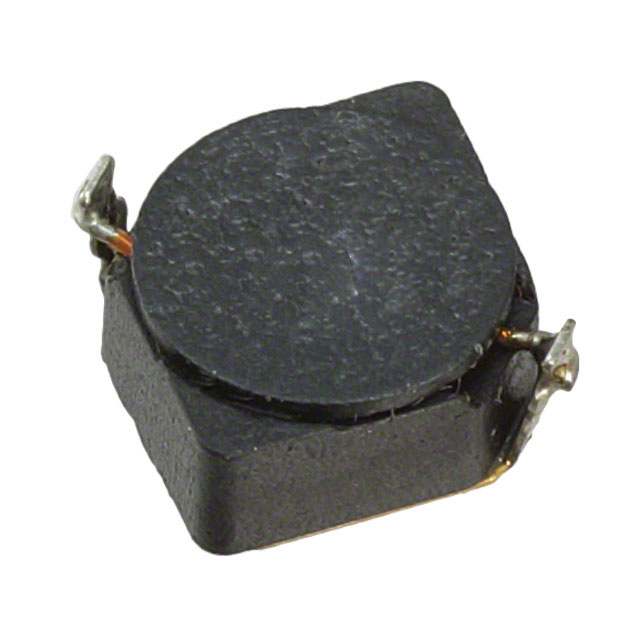

TT Electronics/BI Magnetics HM66-80151LFTR13	100 kHz	506 mOhm	Wirewound	Nonstandard	20 %	Surface Mount			Shielded	1.15 A	125 °C	-40 C	150 µH	10 mm	10.2 mm	0.402 in	0.394 in	4 mm	0.157 in
TT Electronics/BI Magnetics HM66-50680LFTR13	10 kHz	355 mOhm	Wirewound	Nonstandard	20 %	Surface Mount	0.118 "	3 mm	Shielded	0.52 A	125 °C	-40 C	68 µH	5.7 mm	5.7 mm	0.224 "	0.224 "
TT Electronics/BI Magnetics HM66-50100LFTR13	10 kHz		Wirewound	Nonstandard	20 %	Surface Mount	0.118 "	3 mm	Shielded	1.3 A	125 °C	-40 C	10 µH	5.7 mm	5.7 mm	0.224 "	0.224 "			65 mOhm
