Picker Components is an industry-leading relay manufacturer offering automotive, power, signal, and solid-state relays with 100% testing and ISO-certified quality.
Parts that are not part of a series
Company background and product focus
Picker Components was founded in 1983 with the mission of developing and manufacturing high-quality relays for the North American market. Now part of CIT Relay and Switch, Picker continues to deliver reliable relay solutions backed by decades of innovation.
The company's comprehensive relay portfolio includes:
Picker Components maintains rigorous quality standards with 80% automated production lines and 100% testing on all relays. Their manufacturing facilities hold ISO9001-2000, ISO14001:2004, and ISO/TS 16949:2002 certifications from TUV SUD, ensuring every relay exceeds published specifications.
© 2026 Zenode. All rights reserved.
Product families from Picker Components
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
| Power Relays, Over 2 Amps | 2 | Active | ||
| Relays | 1 | Active | ||
| Power Relays, Over 2 Amps | 1 | Active | ||
| Relays | 1 | Active | ||
| Relays | 1 | Active | ||
| Power Relays, Over 2 Amps | 1 | Active | ||
| Relays | 1 | Active | ||
| Relays | 1 | Active | ||
| Relays | 1 | Active | ||
| Power Relays, Over 2 Amps | 2 | Active |
Parts from Picker Components that are not part of a series
| Part Information | Pricing (lowest) | Shape | Type | Usage | Outline Length | Outline Width | Contact Material | Coil Voltage | Coil Type | Coil Insulation | Release Time | Load - Max Switching (Apparent Power) | Load - Max Switching (Real Power) | Switching Voltage AC (Max) | Switching Voltage DC (Max) | Must Operate Voltage | Operating Temperature (Min) | Operating Temperature (Max) | Approval Agency | Coil Current | Must Release Voltage | Mounting Type | Contact Form | Relay Type | Operate Time | Termination Style | Contact Rating (Current) | Pin Count | Seal Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

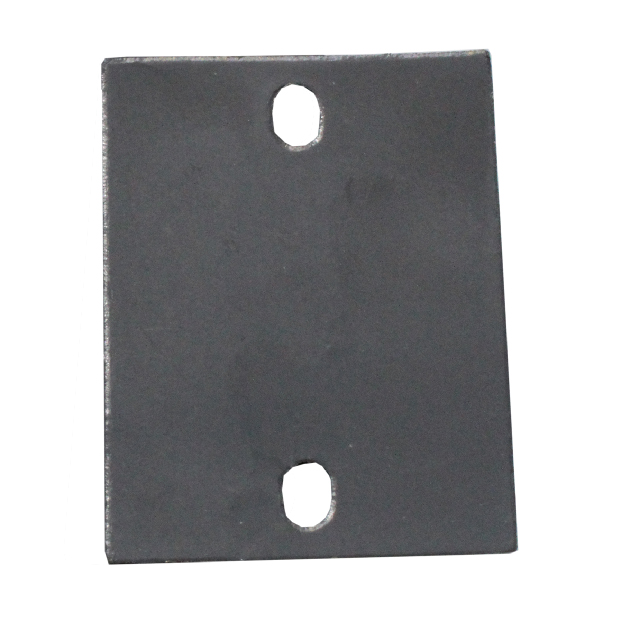

 Picker Components HEAT TRANSFER PAD | Sign in to see pricing | Rectangular | Interface Pad, Sheet | SSR | 62 mm | 45.8 mm | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
 Picker Components RELAY GEN PURPOSE DPDT 12A 120V | Sign in to see pricing | — | — | — | — | — | Silver Cadmium Oxide (AgCdO) | 120 V | Non Latching | Class F | 25 ms | 3000 VA | 336 W | 250 VAC | 28 VDC | 96 V | -40 °C | 70 °C | cURus | 26.4 mA | 36 VDC | Socketable | 2, 2 Form C, C, DPDT, Form | General Purpose | 25 ms | Solder Lug | 12 A | — | — |
 Picker Components RELAY GEN PURPOSE DPDT 12A 240V | Sign in to see pricing | — | — | — | — | — | Silver Cadmium Oxide (AgCdO) | 240 V | Non Latching | Class F | 25 ms | 3000 VA | 336 W | 250 VAC | 28 VDC | 192 VDC | -40 °C | 70 °C | cURus | 12.6 mA | 72 V | Socketable | 2, 2 Form C, C, DPDT, Form | General Purpose | 25 ms | Solder Lug | 12 A | — | — |
Picker Components RELAY GEN PURPOSE DPDT 12A 24V | Sign in to see pricing | — | — | — | — | — | Silver Cadmium Oxide (AgCdO) | 24 VDC | Non Latching | Class F | 25 ms | 3000 VA | 336 W | 250 VAC | 28 VDC | 19.2 V | -40 °C | 70 °C | cURus | 130.4 mA | 7.2 VAC | Socketable | 2, 2 Form C, C, DPDT, Form | General Purpose | 25 ms | Solder Lug | 12 A | — | — |
Picker Components RELAY GEN PURPOSE DPDT 12A 12V | Sign in to see pricing | — | — | — | — | — | Silver Cadmium Oxide (AgCdO) | 12 VAC | Non Latching | Class F | 25 ms | 3000 VA | 336 W | 250 VAC | 28 VDC | 9.6 VDC | -40 °C | 70 °C | cURus | 0.075 A | 1.2 V | Chassis Mount | 2, 2 Form C, C, DPDT, Form | General Purpose | 25 ms | Solder Lug | 12 A | — | — |
Picker Components RELAY GEN PURPOSE DPDT 12A 120V | Sign in to see pricing | — | — | — | — | — | Silver Cadmium Oxide (AgCdO) | 120 V | Non Latching | Class F | 25 ms | 3000 VA | 336 W | 250 VAC | 28 VDC | 96 V | -40 °C | 70 °C | cURus | 26.4 mA | 36 VDC | Through Hole | 2, 2 Form C, C, DPDT, Form | General Purpose | 25 ms | PC Pin | 12 A | — | — |
Picker Components RELAY GEN PURPOSE DPDT 12A 24V | Sign in to see pricing | — | — | — | — | — | Silver Cadmium Oxide (AgCdO) | 24 VDC | Non Latching | Class F | 25 ms | 3000 VA | 336 W | 250 VAC | 28 VDC | 19.2 V | -40 °C | 70 °C | cURus | 36.9 mA | 2.4 V | Through Hole | 2, 2 Form C, C, DPDT, Form | General Purpose | 25 ms | PC Pin | 12 A | — | — |
 Picker Components RELAY GEN PURPOSE 4PDT 5A 120V | Sign in to see pricing | — | — | — | — | — | Silver Cadmium Oxide (AgCdO) | 120 V | Non Latching | — | 25 ms | 1100 VA | 140 W | 220 VAC | 28 VDC | 96 V | -55 °C | 70 °C | cURus | 26.4 mA | 36 VDC | Socketable | 4, C, Form, PDT | General Purpose | 25 ms | Solder Lug | 5 A | 4 | — |
Picker Components RELAY GEN PURPOSE 4PDT 5A 24V | Sign in to see pricing | — | — | — | — | — | Silver Cadmium Oxide (AgCdO) | 24 VDC | Non Latching | — | 25 ms | 1100 VA | 140 W | 220 VAC | 28 VDC | 19.2 V | -55 °C | 70 °C | cURus | 130.4 mA | 7.2 VAC | Through Hole | 4, C, Form, PDT | General Purpose | 25 ms | PC Pin | 5 A | 4 | — |
 Picker Components RELAY GEN PURPOSE SPDT 20A 24V | Sign in to see pricing | — | — | — | — | — | Silver Tin Oxide (AgSnO) | 24 VDC | Non Latching | Class B | 5 ms | 5540 VA | 960 W | 277 VAC | 48 VDC | 18 VDC | -40 °C | 85 °C | cURus | 25 mA | 2.4 V | Through Hole | 1, C, Form, SPDT | General Purpose | 10 ms | PC Pin | 20 A | — | Fully, Sealed |
