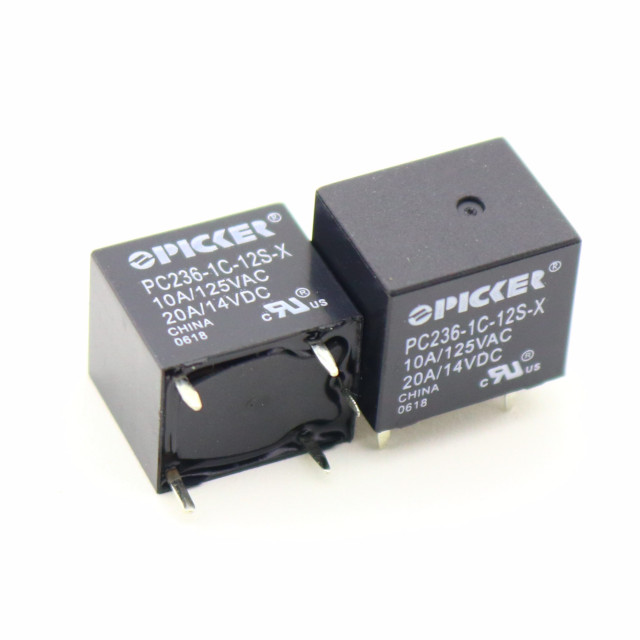

PC236-1C Series
Manufacturer: Picker Components
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
RELAY GEN PURPOSE SPDT 20A 12V
| Part | Operate Time | Coil Current | Contact Material | Coil Type | Approval Agency | Seal Rating | Relay Type | Must Operate Voltage | Release Time | Contact Rating (Current) | Load - Max Switching (Real Power) | Load - Max Switching (Apparent Power) | Switching Voltage DC (Max) | Switching Voltage AC (Max) | Termination Style | Coil Voltage | Contact Form | Must Release Voltage | Operating Temperature (Min) | Operating Temperature (Max) | Coil Insulation | Mounting Type | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Picker Components | 10 ms | 50 mA | Silver Tin Oxide (AgSnO) | Non Latching | cURus | Fully Sealed | General Purpose | 9.6 VDC | 5 ms | 20 A | 960 W | 5540 VA | 48 VDC | 277 VAC | PC Pin | 12 VAC | 1 C Form SPDT | 0.6 VAC | -40 °C | 85 °C | Class B | Through Hole | 240 Ohms |
