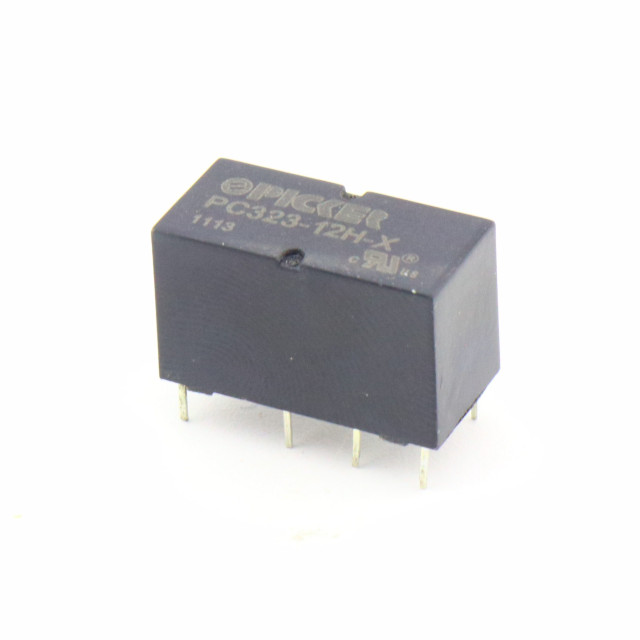

PC323-12H Series
Manufacturer: Picker Components
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
RELAY TELECOM DPDT 2A 12V
| Part | Mounting Type | Contact Form | Operating Temperature (Min) | Operating Temperature (Max) | Must Operate Voltage | Approval Agency | Load - Max Switching (Real Power) | Load - Max Switching (Apparent Power) | Contact Material | Must Release Voltage | Termination Style | Relay Type | Coil Type | Coil Current | Contact Rating (Current) | Coil Insulation | Operate Time | Switching Voltage DC (Max) | Switching Voltage AC (Max) | Coil Voltage | Release Time | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Picker Components | Through Hole | 2 2 Form C C DPDT Form | -40 °C | 85 °C | 9 VDC | cURus | 144 W | 750 VA | Gold (Au) Silver Nickel (AgNi) | 1.2 V | PC Pin | Telecom | Non Latching | 16.7 mA | 3 A | Class B | 4.5 ms | 48 VDC | 250 VAC | 12 VAC | 1.5 ms | 720 Ohms |
