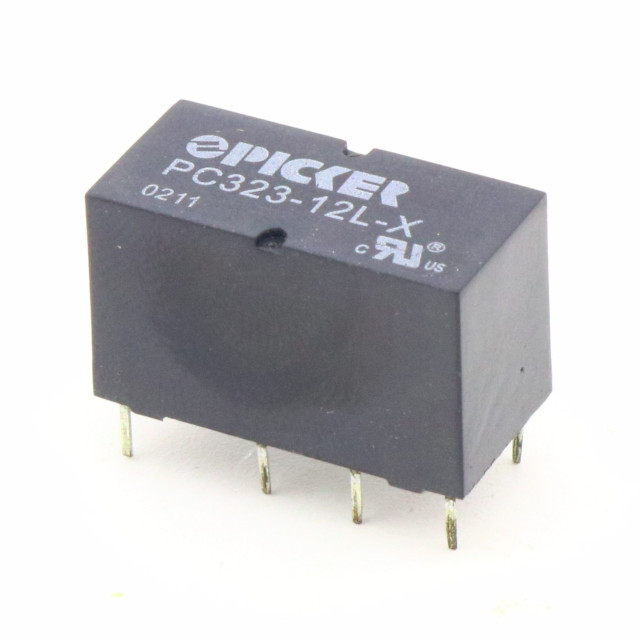

PC323-12L Series
Manufacturer: Picker Components
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
RELAY TELECOM DPDT 2A 12V
| Part | Load - Max Switching (Real Power) | Load - Max Switching (Apparent Power) | Release Time | Contact Rating (Current) | Coil Type | Coil Insulation | Switching Voltage DC (Max) | Switching Voltage AC (Max) | Must Release Voltage | Contact Material | Termination Style | Approval Agency | Must Operate Voltage | Operating Temperature (Min) | Operating Temperature (Max) | Mounting Type | Operate Time | Coil Current | Contact Form | Coil Voltage | Relay Type | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Picker Components | 144 W | 750 VA | 1.5 ms | 3 A | Non Latching | Class B | 48 VDC | 250 VAC | 1.2 V | Gold (Au) Silver Nickel (AgNi) | PC Pin | cURus | 9 VDC | -40 °C | 85 °C | Through Hole | 4.5 ms | 12.5 mA | 2 2 Form C C DPDT Form | 12 VAC | Telecom | 960 Ohms |
