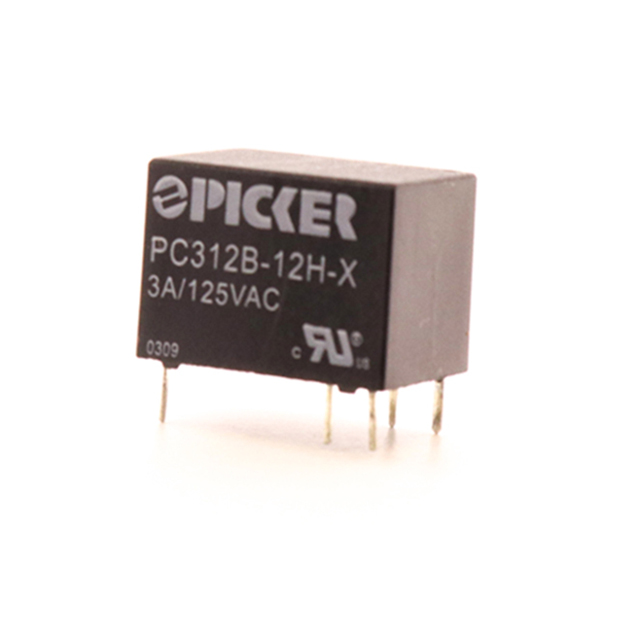

PC312B-12 Series
Manufacturer: Picker Components
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
RELAY TELECOM SPDT 3A 12V
| Part | Contact Material | Operate Time | Must Operate Voltage | Must Release Voltage | Coil Voltage | Approval Agency | Mounting Type | Operating Temperature (Max) | Operating Temperature (Min) | Coil Insulation | Release Time | Coil Current | Load - Max Switching (Apparent Power) | Load - Max Switching (Real Power) | Contact Form | Switching Voltage AC (Max) | Switching Voltage DC (Max) | Contact Rating (Current) | Coil Type | Relay Type | Seal Rating | Termination Style | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Picker Components | Gold (Au) Silver Nickel (AgNi) | 5 ms | 9 VDC | 1.2 V | 12 VAC | cURus | Through Hole | 70 °C | -25 °C | Class B | 5 ms | 16.7 mA | 900 VA | 144 W | 1 C Form SPDT | 300 VAC | 48 VDC | 3 A | Non Latching | Telecom | Fully Sealed | PC Pin | 720 Ohms |
