PC312-9H Series
Manufacturer: Picker Components
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

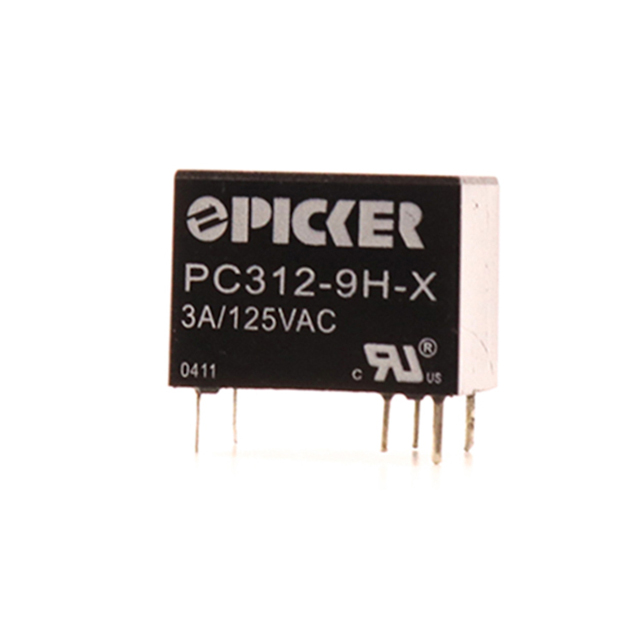

RELAY TELECOM SPDT 3A 9V
| Part | Coil Insulation | Mounting Type | Coil Voltage | Coil Type | Release Time | Relay Type | Operate Time | Approval Agency | Switching Voltage AC (Max) | Switching Voltage DC (Max) | Contact Material | Operating Temperature (Max) | Operating Temperature (Min) | Must Operate Voltage | Contact Form | Load - Max Switching (Apparent Power) | Load - Max Switching (Real Power) | Termination Style | Must Release Voltage | Contact Rating (Current) | Coil Current | Seal Rating | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Picker Components | Class B | Through Hole | 9 VDC | Non Latching | 5 ms | Telecom | 5 ms | cURus | 300 VAC | 48 VDC | Gold (Au) Silver Nickel (AgNi) | 70 °C | -25 °C | 6.75 VDC | 1 C Form SPDT | 900 VA | 144 W | PC Pin | 0.9 VDC | 3 A | 40 mA | Fully Sealed | 225 Ohms |
