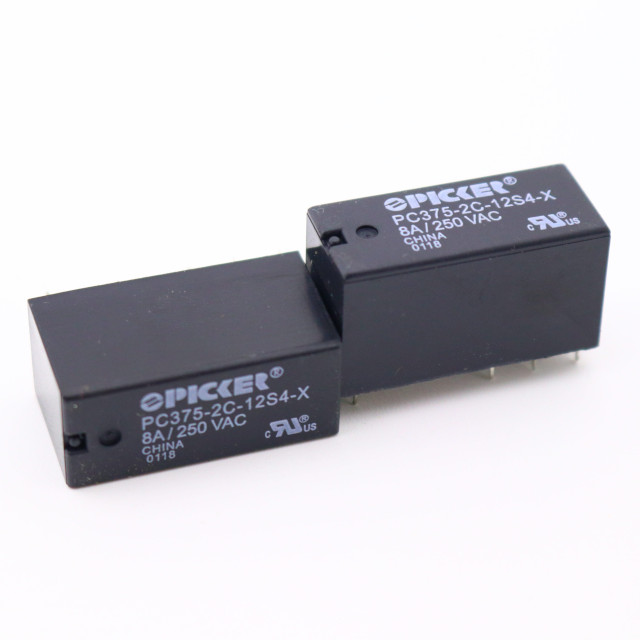

PC375-2C Series
Manufacturer: Picker Components
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
RELAY GEN PURPOSE DPDT 16A 12V
| Part | Contact Material | Coil Voltage | Coil Current | Operate Time | Seal Rating | Coil Type | Must Release Voltage | Relay Type | Approval Agency | Mounting Type | Contact Rating (Current) | Termination Style | Switching Voltage DC (Max) | Switching Voltage AC (Max) | Release Time | Contact Form | Must Operate Voltage | Operating Temperature (Min) | Operating Temperature (Max) | Load - Max Switching (Apparent Power) | Load - Max Switching (Real Power) | Coil Insulation | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Picker Components | Silver Tin Oxide (AgSnO) | 12 VAC | 34.2 mA | 15 ms | Fully Sealed | Non Latching | 1.2 V | General Purpose | cURus | Through Hole | 8 A 16 A | PC Pin | 110 VDC | 380 VAC | 8 ms | 2 2 Form C C DPDT Form | 8.4 VAC | -40 °C | 85 °C | 6080 VA | 1760 W | Class F | 351 Ohms |
