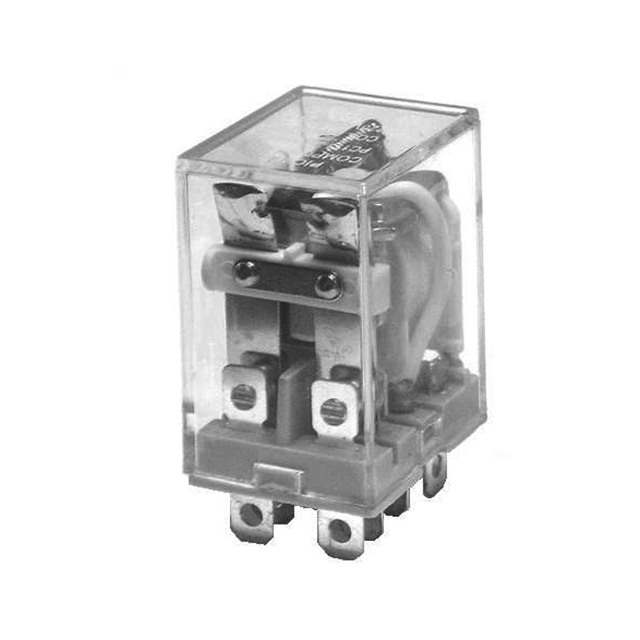

PC113-2C Series
Manufacturer: Picker Components
Beta
⌘K
RELAY GEN PURPOSE DPDT 12A 120V
| Part | Coil Resistance | Coil Current | Operating Temperature [Max] | Operating Temperature [Min] | Contact Form | Coil Insulation | Termination Style | Mounting Type | Coil Type | Operate Time | Switching Voltage [Max] | Must Release Voltage | Release Time | Relay Type | Load - Max Switching | Coil Voltage | Contact Rating (Current) | Must Operate Voltage | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Picker Components | 4.55 kOhms | 26.4 mA | 70 °C | -40 C | DPDT (2 Form C) | Class F | Solder Lug | Chassis Mount | Non Latching | 25 ms | 28 VDC 250 VAC | 36 VAC | 25 ms | General Purpose | 336 W 3000 VA | 120 VAC | 12 A | 96 VAC | Silver Cadmium Oxide (AgCdO) |
Picker Components | 184 Ohms | 130.4 mA | 70 °C | -40 C | DPDT (2 Form C) | Class F | Solder Lug | Chassis Mount | Non Latching | 25 ms | 28 VDC 250 VAC | 7.2 VDC | 25 ms | General Purpose | 336 W 3000 VA | 24 VAC | 12 A | 19.2 VDC | Silver Cadmium Oxide (AgCdO) |
