PC520-1C Series
Manufacturer: Picker Components
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
RELAY GEN PURPOSE SPDT 20A 12V
| Part | Load - Max Switching (Apparent Power) | Release Time | Coil Type | Contact Material | Seal Rating | Must Operate Voltage | Operating Temperature (Min) | Operating Temperature (Max) | Switching Voltage AC (Max) | Coil Current | Coil Insulation | Mounting Type | Contact Form | Coil Voltage | Contact Rating (Current) | Must Release Voltage | Operate Time | Relay Type | Approval Agency | Termination Style | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

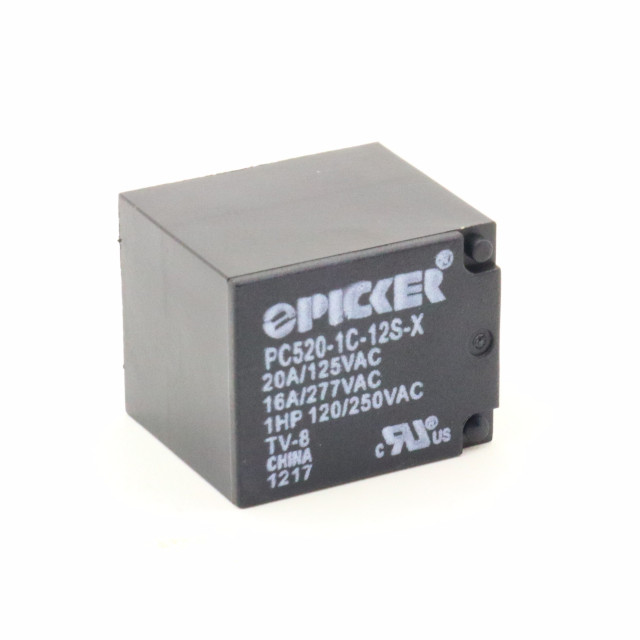

 Picker Components | 5000 VA | 10 ms | Non Latching | Silver Cadmium Oxide (AgCdO) | Fully Sealed | 9 VDC | -40 °C | 105 °C | 250 VAC | 30 mA | Class F | Through Hole | 1 C Form SPDT | 12 VAC | 20 A | 1.2 V | 15 ms | General Purpose | cUL cURus UL | PC Pin | 400 Ohms |

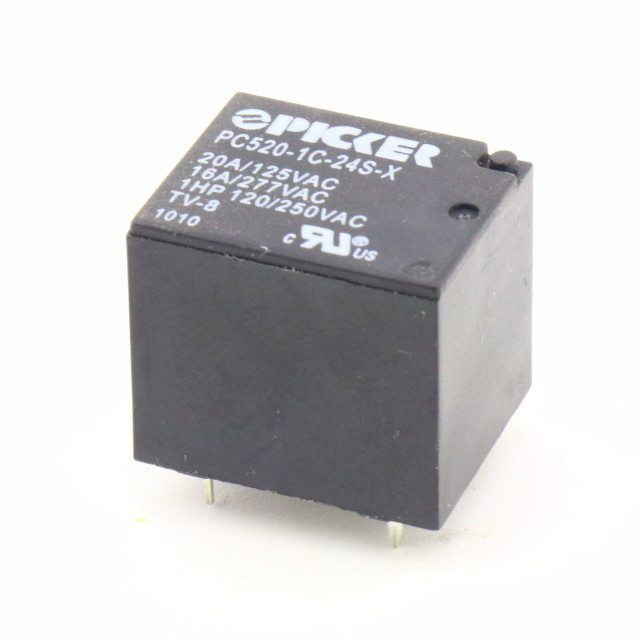

 Picker Components | 5000 VA | 10 ms | Non Latching | Silver Cadmium Oxide (AgCdO) | Fully Sealed | 18 VDC | -40 °C | 105 °C | 250 VAC | 0.015 A | Class F | Through Hole | 1 C Form SPDT | 24 VDC | 20 A | 2.4 V | 15 ms | General Purpose | cUL cURus UL | PC Pin | 1.6 kOhms |
