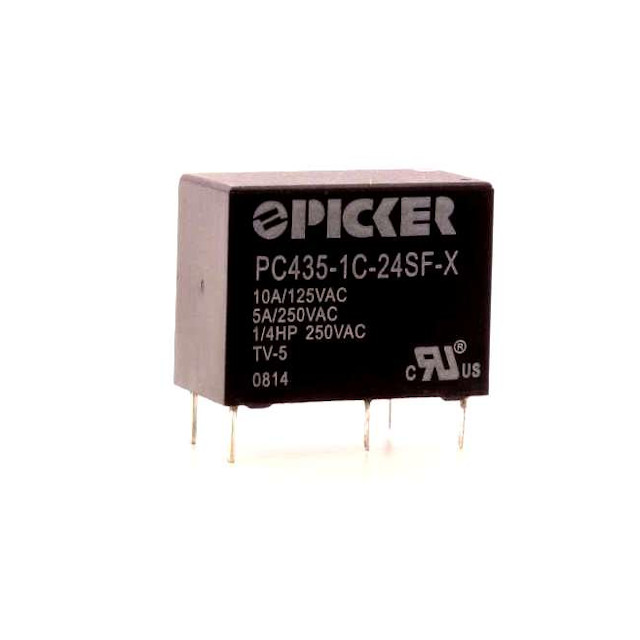

PC435-1C Series
Manufacturer: Picker Components
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
RELAY GEN PURPOSE SPDT 10A 24V
| Part | Termination Style | Coil Insulation | Operate Time | Mounting Type | Seal Rating | Coil Voltage | Contact Rating (Current) | Relay Type | Must Release Voltage | Coil Type | Coil Current | Contact Form | Contact Material | Operating Temperature (Min) | Operating Temperature (Max) | Release Time | Must Operate Voltage | Switching Voltage DC (Max) | Switching Voltage AC (Max) | Approval Agency | Load - Max Switching (Apparent Power) | Load - Max Switching (Real Power) | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Picker Components | PC Pin | Class F | 8 ms | Through Hole | Fully Sealed | 24 VDC | 10 A | General Purpose | 1.2 V | Non Latching | 18.8 mA | 1 C Form SPDT | Silver Cadmium Oxide (AgCdO) | -40 °C | 105 °C | 5 ms | 18 VDC | 30 VDC | 277 VAC | cUL UL | 2770 VA | 300 W | 1280 Ohms |
