Actuonix Motion Devices is a pioneer in micro motion technology, offering affordable micro linear actuators and servos for robotics, aerospace, automotive, medical, and radio control applications since 2004.
Parts that are not part of a series
Company background and product focus
Actuonix Motion Devices, based in Victoria, BC, Canada, has been a leader in the micro motion marketplace since founding in 2004 when they developed the first affordable micro linear actuator. The company provides inventive and cost-effective micro motion solutions designed to save product designers the difficulties of engineering linear stages from large motors, servos, gears, and rods.
Their expanded product lineup includes over 165 different types of micro linear actuators and servos, with stroke lengths ranging from 0.4 inches (10mm) to 11.8 inches (300mm) and maximum forces reaching up to 67 lbs (300N). The latest L8 linear actuator series continues their tradition of innovation in compact motion control.
© 2026 Zenode. All rights reserved.
Product families from Actuonix Motion Devices Inc
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
| Motors, Actuators, Solenoids and Drivers | 11 | Active | ||
| Electric Actuators/Cylinders | 20 | Active | ||
| Motors, Actuators, Solenoids and Drivers | 21 | Active | ||
| Electric Actuators/Cylinders | 21 | Active | ||
| Electric Actuators/Cylinders | 9 | Active | ||
| Electric Actuators/Cylinders | 9 | Active | ||
| Electric Actuators/Cylinders | 2 | Active | ||
| Electric Actuators/Cylinders | 9 | Active | ||
| Electric Actuators/Cylinders | 5 | Active | ||
| Motors, Actuators, Solenoids and Drivers | 6 | Active |
Parts from Actuonix Motion Devices Inc that are not part of a series
| Part Information | Pricing (lowest) | Load Force (Dynamic) | Type | Termination Style | Gear Reduction Ratio | Feedback Type | Stroke Length (Linear) | Load Force (Static) | Ingress Protection IP Rating | Ingress Protection Description | Motor Type | Accuracy | Voltage - Rated | Speed | Duty Cycle | Construction | Operating Temperature (Min) | Operating Temperature (Max) | Features | Number of Motors | Mounting Type | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Current - Output | Interface | Control / Drive Type | Voltage - Load (Min) | Voltage - Load (Max) | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

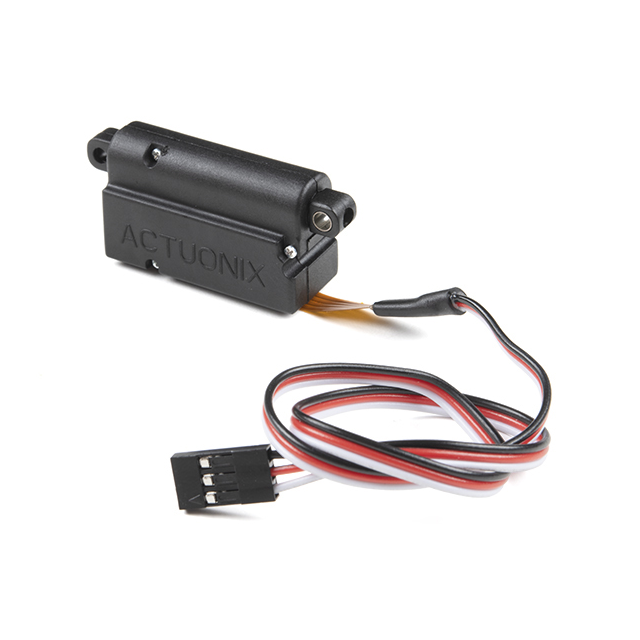

 Actuonix Motion Devices Inc ACTUONIX PQ12-100-6-R MICRO-ACTU | Sign in to see pricing | 8.99 lbf | Linear Actuator | Wire Leads with Connector | 100 | Potentiometer | 0.787 in | 11.24 lbf | IP54 | Dust Protected, Water Resistant | Brushed | 0.1 mm | 6 VDC | 0.39 in/s | 20 % | Ball Screw | -10 °C | 50 °C | Limit Switches | — | — | — | — | — | — | — | — | — | — |

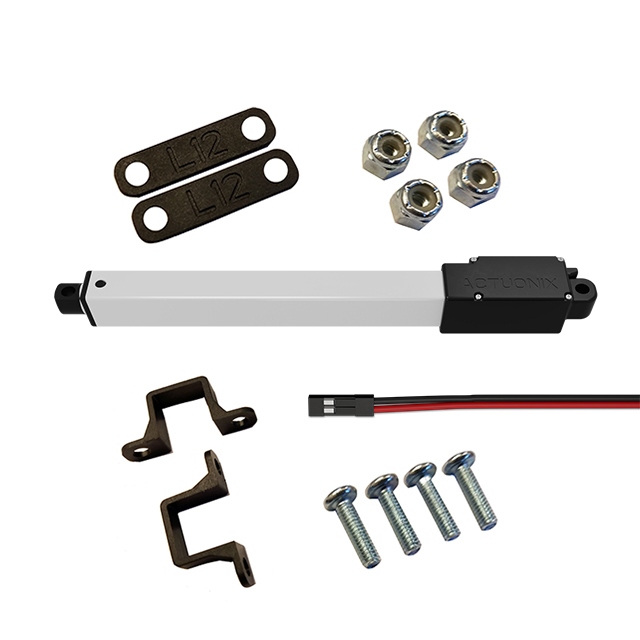

 Actuonix Motion Devices Inc L12-I MICRO LINEAR ACTUATOR | Sign in to see pricing | 4.95 lbf | Linear Actuator | Wire Leads with Connector | 50 | Potentiometer | 3.937 in | 44.96 lbf | IP54 | Dust Protected, Water Resistant | Brushed | 0.5 mm | 6 VDC | 0.98 in/s | 20 % | Ball Screw | -10 °C | 50 °C | Integrated Controller | — | — | — | — | — | — | — | — | — | — |

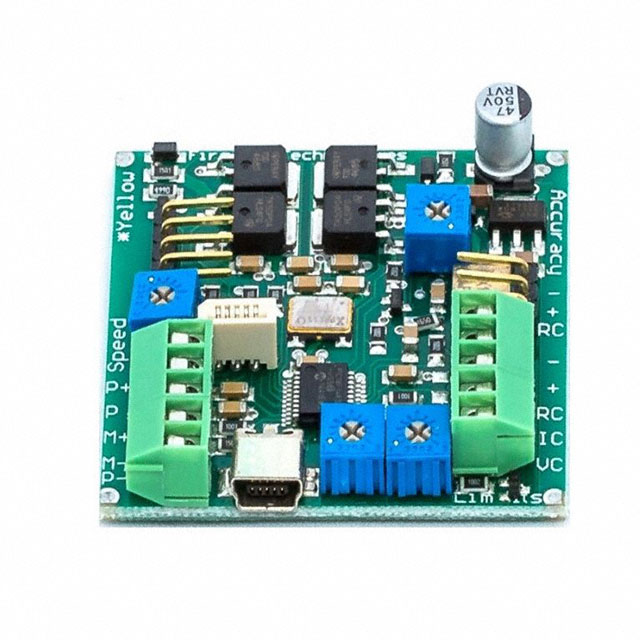

 Actuonix Motion Devices Inc LINEAR ACTUATOR CONTROL BOARD | Sign in to see pricing | — | Board | — | — | — | — | — | — | — | Brushed DC | — | — | — | — | — | — | — | — | 1 | Chassis Mount | 24 VAC | 6 V | 4 A | PWM, Serial, USB | Brushed | 6 V | 24 V | L12-P, L16, P16, PQ12, T16-P Actuators |

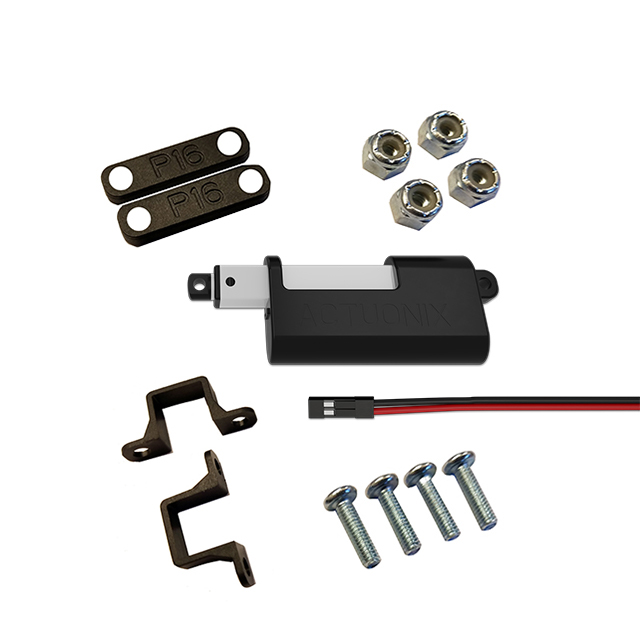

 Actuonix Motion Devices Inc P16-P MICRO LINEAR ACTUATOR | Sign in to see pricing | 20.23 lbf | Linear Actuator | Wire Leads with Connector | 64 | Potentiometer | 3.937 in | 122.4 lbf | IP54 | Dust Protected, Water Resistant | Brushed | 0.4 mm | 12 VAC | 0.71 in/s | 20 % | Ball Screw | -10 °C | 50 °C | — | — | — | — | — | — | — | — | — | — | — |

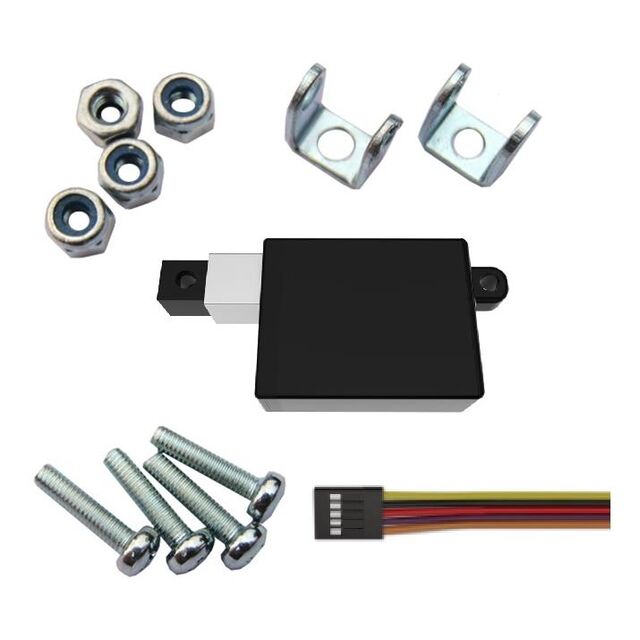

 Actuonix Motion Devices Inc P8-P MICRO LINEAR ACTUATOR | Sign in to see pricing | 24.73 lbf | Linear Actuator | Cable with Connector | 165 | Potentiometer | 0.394 in | 40.46 lbf | IP54 | Dust Protected, Water Resistant | Brushed | 0.1 mm | 12 VAC | 0.36 in/s | 20 % | Lead Screw | -10 °C | 50 °C | Integrated Sensor | — | — | — | — | — | — | — | — | — | — |

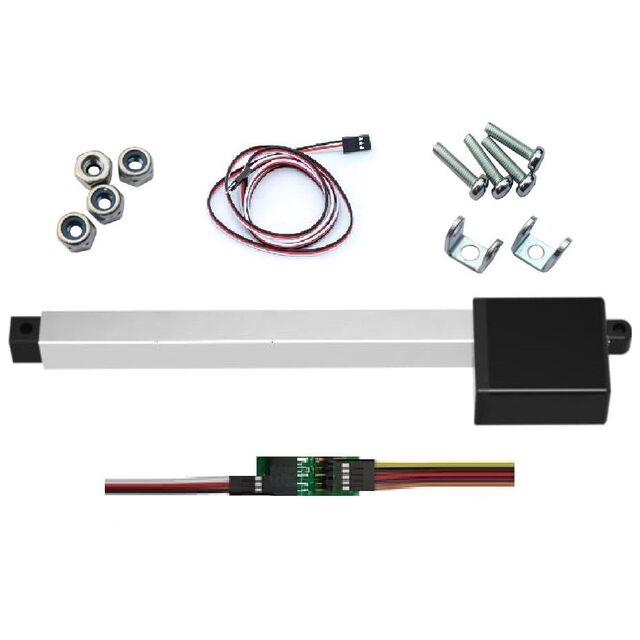

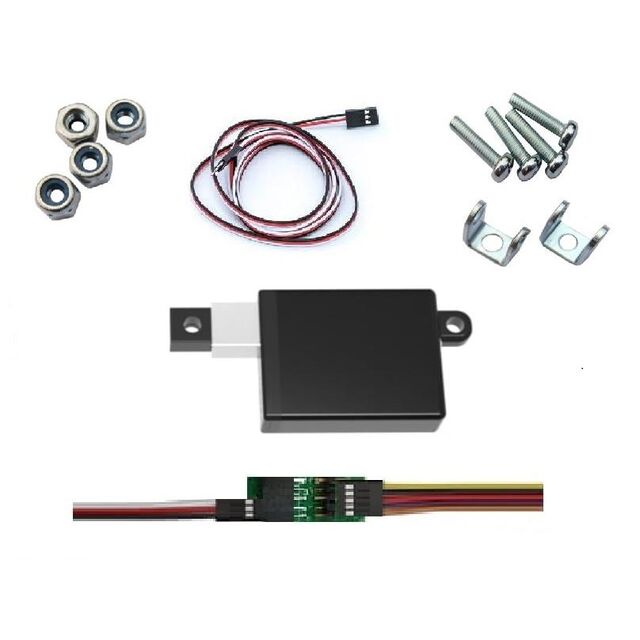

 Actuonix Motion Devices Inc P8-R MICRO LINEAR SERVO | Sign in to see pricing | 24.73 lbf | Linear Actuator | Cable with Connector | 165 | Potentiometer | 0.394 in | 40.46 lbf | IP54 | Dust Protected, Water Resistant | Servo | 0.1 mm | 12 VAC | 0.36 in/s | 20 % | Lead Screw | -10 °C | 50 °C | Includes Controller | — | — | — | — | — | — | — | — | — | — |

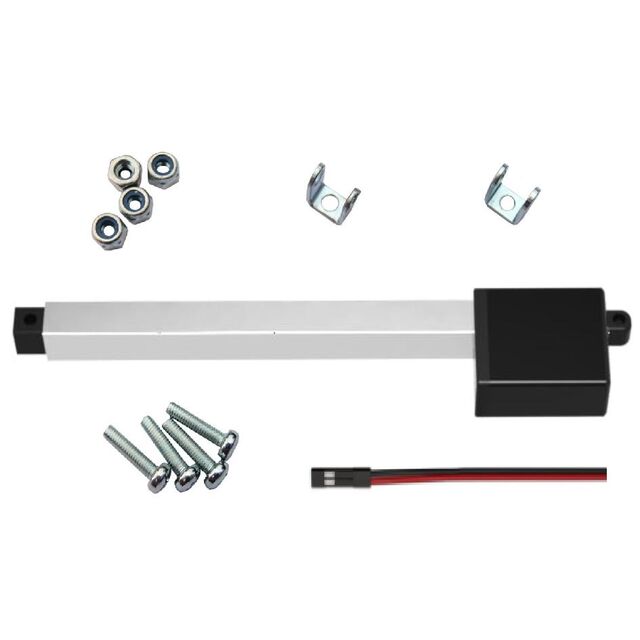

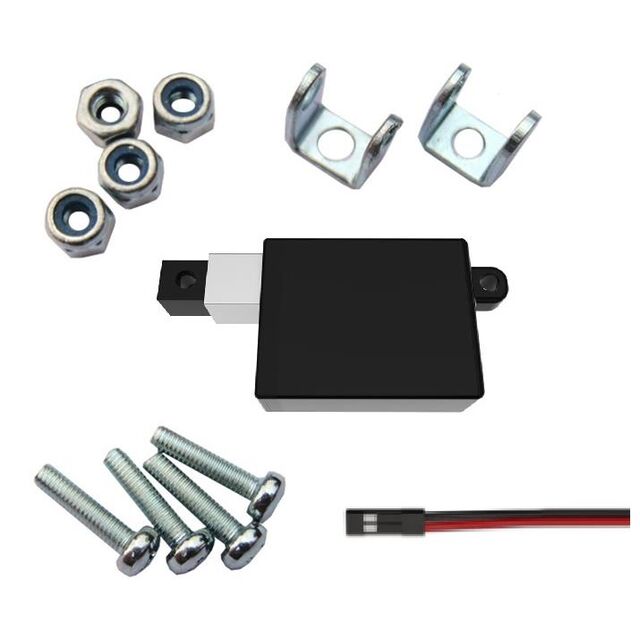

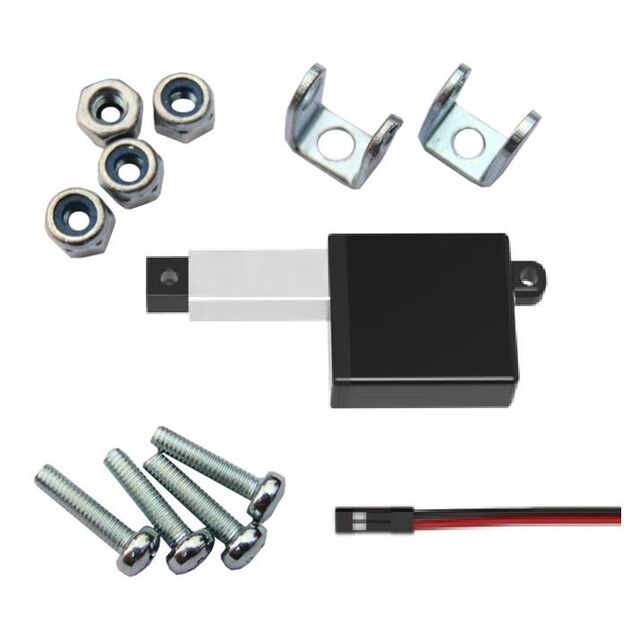

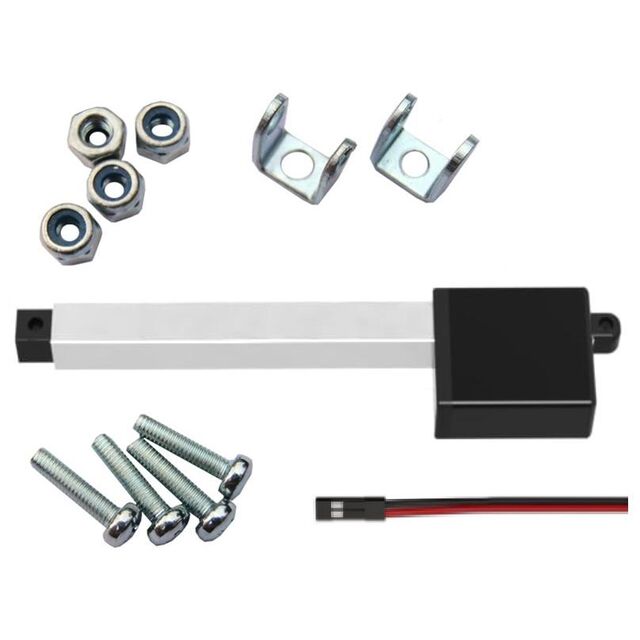

 Actuonix Motion Devices Inc P8-S MICRO LINEAR ACTUATOR | Sign in to see pricing | 24.73 lbf | Linear Actuator | Cable with Connector | 165 | — | 0.394 in | 40.46 lbf | IP54 | Dust Protected, Water Resistant | Brushed | 0.1 mm | 12 VAC | 0.36 in/s | 20 % | Lead Screw | -10 °C | 50 °C | Limit Switches | — | — | — | — | — | — | — | — | — | — |
 Actuonix Motion Devices Inc P8-ST MICRO STEPPER ACTUATOR | Sign in to see pricing | — | Linear Actuator | Wire Leads with Connector | 165 | — | 0.394 in | 44.96 lbf | IP54 | Dust Protected, Water Resistant | Bipolar, Stepper | — | 4.2 V | — | 100 % | Ball Screw | -10 °C | 40 °C | Includes Controller | — | — | — | — | — | — | — | — | — | — |

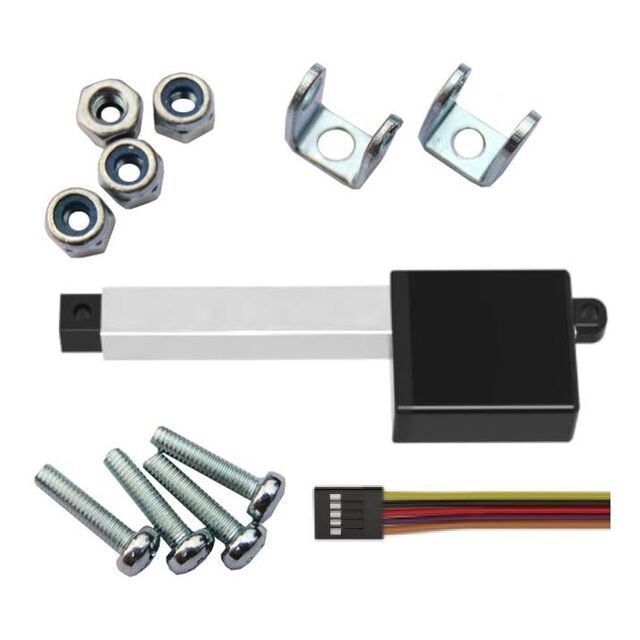

Actuonix Motion Devices Inc P8-P MICRO LINEAR ACTUATOR | Sign in to see pricing | 33.72 lbf | Linear Actuator | Cable with Connector | 252 | Potentiometer | 0.394 in | 40.46 lbf | IP54 | Dust Protected, Water Resistant | Brushed | 0.1 mm | 12 VAC | 0.24 in/s | 20 % | Lead Screw | -10 °C | 50 °C | Integrated Sensor | — | — | — | — | — | — | — | — | — | — |
Actuonix Motion Devices Inc P8-R MICRO LINEAR SERVO | Sign in to see pricing | 33.72 lbf | Linear Actuator | Cable with Connector | 252 | Potentiometer | 0.394 in | 40.46 lbf | IP54 | Dust Protected, Water Resistant | Servo | 0.1 mm | 12 VAC | 0.24 in/s | 20 % | Lead Screw | -10 °C | 50 °C | Includes Controller | — | — | — | — | — | — | — | — | — | — |
