L16-50 Series

Manufacturer: Actuonix Motion Devices Inc

Catalog

L16-R MINIATURE LINEAR SERVO

Part	Accuracy	Load Force (Dynamic)	Load Force (Dynamic)	Gear Reduction Ratio	Duty Cycle	Features	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Speed	Speed	Type	Motor Type	Stroke Length	Stroke Length	Construction	Voltage - Rated	Load Force (Static)	Load Force (Static)	Feedback Type

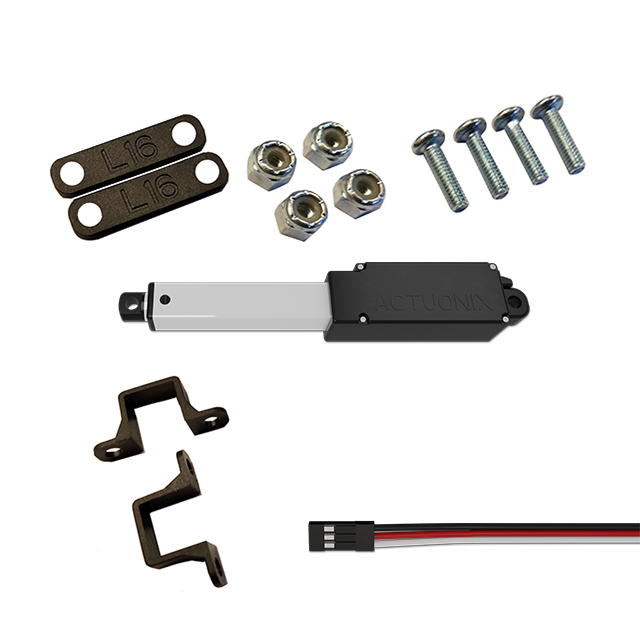

Actuonix Motion Devices Inc L16-50-150-6-R	0.3 mm	44.96 lbf	200 N	150	20 %	RC Linear Servo	50 °C	-10 °C	IP54 - Dust Protected Water Resistant	8 mm/s	0.32 in/s	Linear Actuator	Brushed	1.969 in	50 mm	Ball Screw	6 VDC	56.2 lbf	250 N
Actuonix Motion Devices Inc L16-50-35-6-R	0.3 mm	11.24 lbf	50 N	35	20 %	RC Linear Servo	50 °C	-10 °C	IP54 - Dust Protected Water Resistant	32 mm/s	1.26 in/s	Linear Actuator	Brushed	1.969 in	50 mm	Ball Screw	6 VDC	56.2 lbf	250 N
Actuonix Motion Devices Inc L16-50-63-6-R	0.3 mm	22.48 lbf	100 N	63	20 %	RC Linear Servo	50 °C	-10 °C	IP54 - Dust Protected Water Resistant	20 mm/s	0.79 in/s	Linear Actuator	Brushed	1.969 in	50 mm	Ball Screw	6 VDC	56.2 lbf	250 N

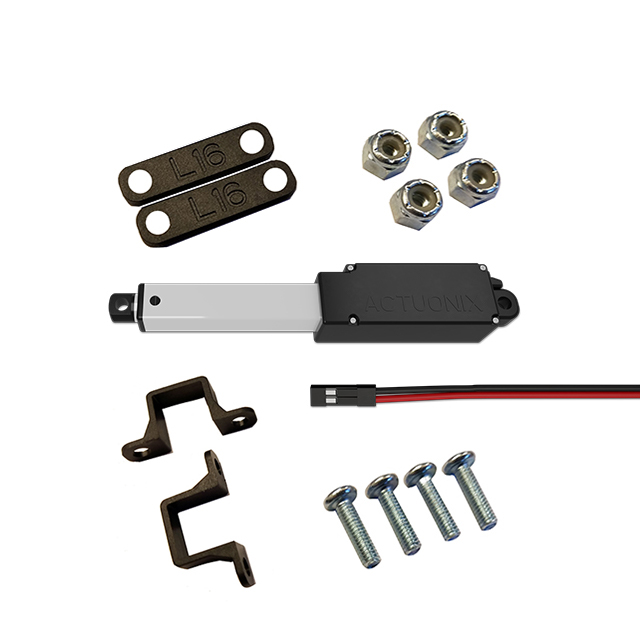

Actuonix Motion Devices Inc L16-50-150-12-S	0.3 mm	44.96 lbf	200 N	150	20 %	Limit Switches	50 °C	-10 °C	IP54 - Dust Protected Water Resistant	8 mm/s	0.32 in/s	Linear Actuator	Brushed	1.969 in	50 mm	Ball Screw	12 VDC	56.2 lbf	250 N
Actuonix Motion Devices Inc L16-50-63-12-P	0.3 mm	22.48 lbf	100 N	63	20 %		50 °C	-10 °C	IP54 - Dust Protected Water Resistant	20 mm/s	0.79 in/s	Linear Actuator	Brushed	1.969 in	50 mm	Ball Screw	12 VDC	56.2 lbf	250 N	Potentiometer
Actuonix Motion Devices Inc L16-50-35-12-S	0.3 mm	11.24 lbf	50 N	35	20 %	Limit Switches	50 °C	-10 °C	IP54 - Dust Protected Water Resistant	32 mm/s	1.26 in/s	Linear Actuator	Brushed	1.969 in	50 mm	Ball Screw	12 VDC	56.2 lbf	250 N
Actuonix Motion Devices Inc L16-50-150-12-P	0.3 mm	44.96 lbf	200 N	150	20 %		50 °C	-10 °C	IP54 - Dust Protected Water Resistant	8 mm/s	0.32 in/s	Linear Actuator	Brushed	1.969 in	50 mm	Ball Screw	12 VDC	56.2 lbf	250 N	Potentiometer
Actuonix Motion Devices Inc L16-50-35-12-P	0.3 mm	11.24 lbf	50 N	35	20 %		50 °C	-10 °C	IP54 - Dust Protected Water Resistant	32 mm/s	1.26 in/s	Linear Actuator	Brushed	1.969 in	50 mm	Ball Screw	12 VDC	56.2 lbf	250 N	Potentiometer
Actuonix Motion Devices Inc L16-50-63-12-S	0.3 mm	22.48 lbf	100 N	63	20 %	Limit Switches	50 °C	-10 °C	IP54 - Dust Protected Water Resistant	20 mm/s	0.79 in/s	Linear Actuator	Brushed	1.969 in	50 mm	Ball Screw	12 VDC	56.2 lbf	250 N
