P16-150 Series

Manufacturer: Actuonix Motion Devices Inc

Catalog

P16-S MICRO LINEAR ACTUATOR

Part	Accuracy	Gear Reduction Ratio	Motor Type	Operating Temperature [Max]	Operating Temperature [Min]	Speed	Speed	Stroke Length	Stroke Length	Construction	Load Force (Static)	Load Force (Static)	Voltage - Rated	Type	Features	Load Force (Dynamic)	Load Force (Dynamic)	Duty Cycle	Ingress Protection	Feedback Type

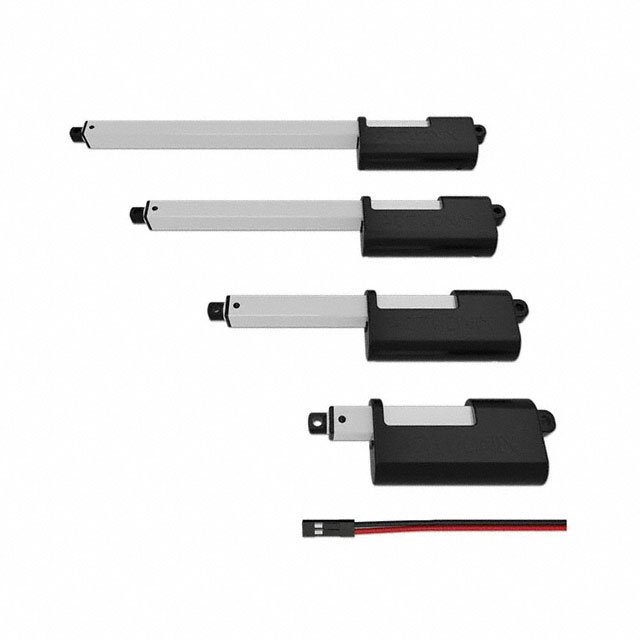

Actuonix Motion Devices Inc P16-150-64-12-S	0.6 mm	64	Brushed	50 °C	-10 °C	18 mm/s	0.71 in/s	5.906 "	150 mm	Ball Screw	122.4 lbf	500 N	12 VDC	Linear Actuator	Limit Switches	20.23 lbf	90 N	20 %	IP54 - Dust Protected Water Resistant
Actuonix Motion Devices Inc P16-150-22-12-S	0.6 mm	22	Brushed	50 °C	-10 °C	46 mm/s	1.81 in/s	5.906 "	150 mm	Ball Screw	122.4 lbf	500 N	12 VDC	Linear Actuator	Limit Switches	11.24 lbf	50 N	20 %	IP54 - Dust Protected Water Resistant
Actuonix Motion Devices Inc P16-150-256-12-S	0.6 mm	256	Brushed	50 °C	-10 °C	4.8 mm/s	0.19 in/s	5.906 "	150 mm	Ball Screw	122.4 lbf	500 N	12 VDC	Linear Actuator	Limit Switches	67.44 lbf	300 N	20 %	IP54 - Dust Protected Water Resistant

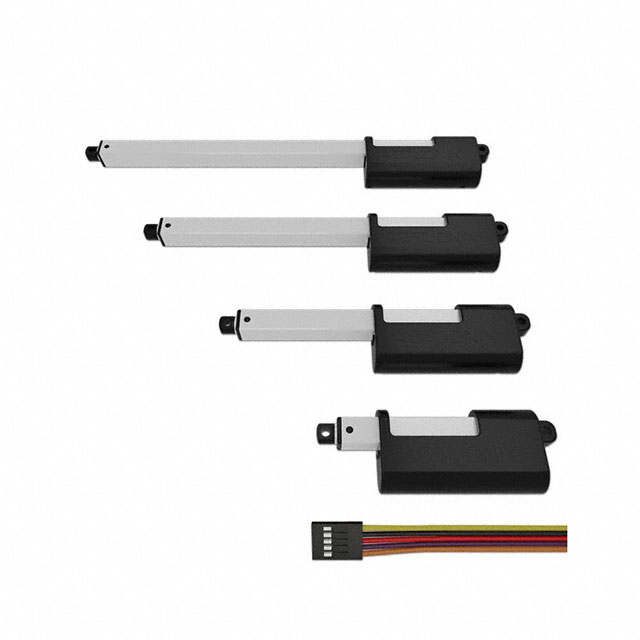

Actuonix Motion Devices Inc P16-150-64-12-P	0.6 mm	64	Brushed	50 °C	-10 °C	18 mm/s	0.71 in/s	5.906 "	150 mm	Ball Screw	122.4 lbf	500 N	12 VDC	Linear Actuator		20.23 lbf	90 N	20 %	IP54 - Dust Protected Water Resistant	Potentiometer
Actuonix Motion Devices Inc P16-150-22-12-P	0.6 mm	22	Brushed	50 °C	-10 °C	46 mm/s	1.81 in/s	5.906 "	150 mm	Ball Screw	122.4 lbf	500 N	12 VDC	Linear Actuator		11.24 lbf	50 N	20 %	IP54 - Dust Protected Water Resistant	Potentiometer
Actuonix Motion Devices Inc P16-150-256-12-P	0.6 mm	256	Brushed	50 °C	-10 °C	4.8 mm/s	0.19 in/s	5.906 "	150 mm	Ball Screw	122.4 lbf	500 N	12 VDC	Linear Actuator		67.44 lbf	300 N	20 %	IP54 - Dust Protected Water Resistant	Potentiometer
