L12-100 Series

Manufacturer: Actuonix Motion Devices Inc

Catalog

L12-I MICRO LINEAR ACTUATOR

Part	Gear Reduction Ratio	Duty Cycle	Feedback Type	Ingress Protection	Type	Accuracy	Voltage - Rated	Features	Load Force (Static)	Load Force (Static)	Operating Temperature [Max]	Operating Temperature [Min]	Construction	Motor Type	Stroke Length	Stroke Length	Load Force (Dynamic)	Load Force (Dynamic)	Speed	Speed

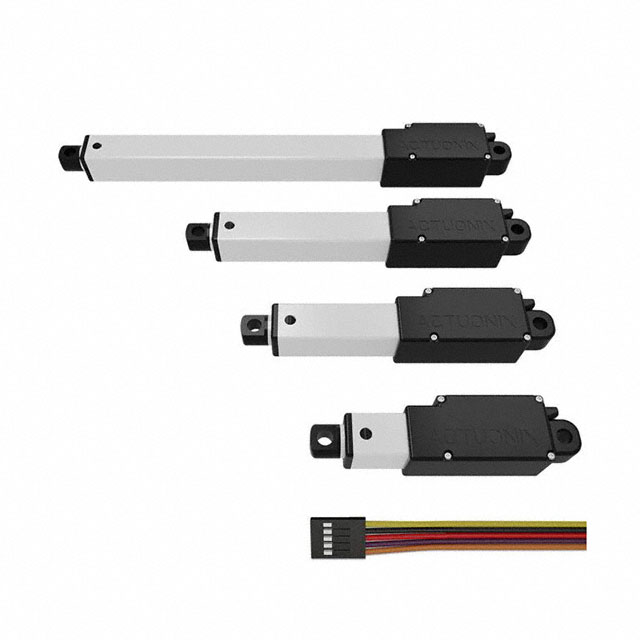

Actuonix Motion Devices Inc L12-100-100-12-I	100	20 %	Potentiometer	IP54 - Dust Protected Water Resistant	Linear Actuator	0.5 mm	12 VDC	Integrated Controller	200 N	44.96 lbf	50 °C	-10 °C	Ball Screw	Brushed	100 mm	3.937 in	9.44 lbf	42 N

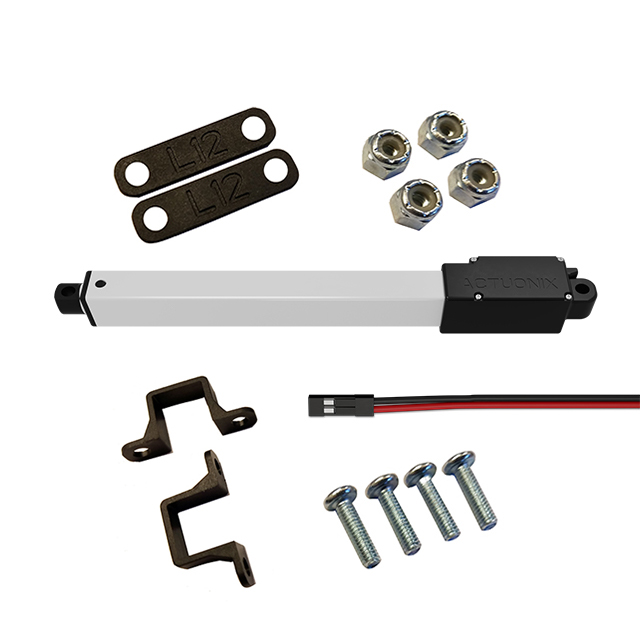

Actuonix Motion Devices Inc L12-100-210-12-S	210	20 %		IP54 - Dust Protected Water Resistant	Linear Actuator	0.5 mm	12 VDC	Limit Switches	200 N	44.96 lbf	50 °C	-10 °C	Ball Screw	Brushed	100 mm	3.937 in	17.99 lbf	80 N	0.26 in/s	6.6 mm/s
Actuonix Motion Devices Inc L12-100-50-12-S	50	20 %		IP54 - Dust Protected Water Resistant	Linear Actuator	0.5 mm	12 VDC	Limit Switches	200 N	44.96 lbf	50 °C	-10 °C	Ball Screw	Brushed	100 mm	3.937 in			0.98 in/s	25 mm/s
Actuonix Motion Devices Inc L12-100-210-6-S	210	20 %		IP54 - Dust Protected Water Resistant	Linear Actuator	0.5 mm	6 VDC	Limit Switches	200 N	44.96 lbf	50 °C	-10 °C	Ball Screw	Brushed	100 mm	3.937 in	17.99 lbf	80 N	0.26 in/s	6.6 mm/s

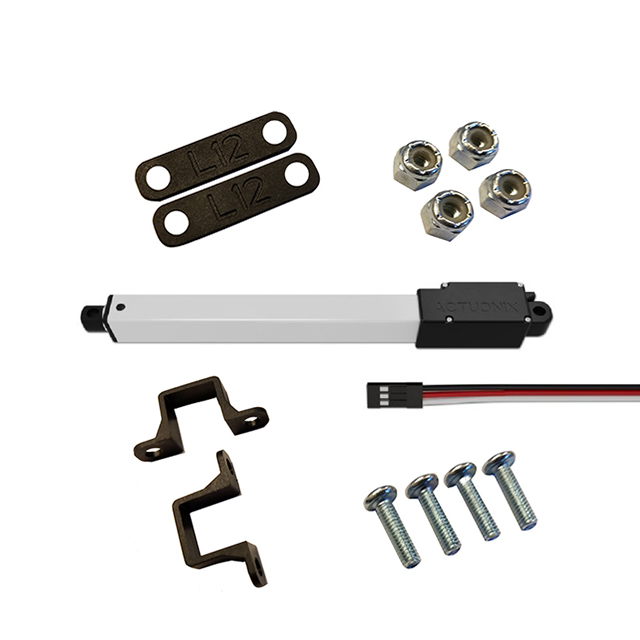

Actuonix Motion Devices Inc L12-100-210-6-R	210	20 %		IP54 - Dust Protected Water Resistant	Linear Actuator	0.5 mm	6 VDC	RC Linear Servo	200 N	44.96 lbf	50 °C	-10 °C	Ball Screw	Brushed	100 mm	3.937 in	17.99 lbf	80 N	0.26 in/s	6.6 mm/s
Actuonix Motion Devices Inc L12-100-50-12-P	50	20 %	Potentiometer	IP54 - Dust Protected Water Resistant	Linear Actuator	0.5 mm	12 VDC		200 N	44.96 lbf	50 °C	-10 °C	Ball Screw	Brushed	100 mm	3.937 in			0.98 in/s	25 mm/s
Actuonix Motion Devices Inc L12-100-50-6-R	50	20 %		IP54 - Dust Protected Water Resistant	Linear Actuator	0.5 mm	6 VDC	RC Linear Servo	200 N	44.96 lbf	50 °C	-10 °C	Ball Screw	Brushed	100 mm	3.937 in			0.98 in/s	25 mm/s
Actuonix Motion Devices Inc L12-100-100-6-I	100	20 %	Potentiometer	IP54 - Dust Protected Water Resistant	Linear Actuator	0.5 mm	6 VDC	Integrated Controller	200 N	44.96 lbf	50 °C	-10 °C	Ball Screw	Brushed	100 mm	3.937 in	9.44 lbf	42 N
Actuonix Motion Devices Inc L12-100-210-6-P	210	20 %	Potentiometer	IP54 - Dust Protected Water Resistant	Linear Actuator	0.5 mm	6 VDC		200 N	44.96 lbf	50 °C	-10 °C	Ball Screw	Brushed	100 mm	3.937 in	17.99 lbf	80 N	0.26 in/s	6.6 mm/s
Actuonix Motion Devices Inc L12-100-100-12-S	100	20 %		IP54 - Dust Protected Water Resistant	Linear Actuator	0.5 mm	12 VDC	Limit Switches	200 N	44.96 lbf	50 °C	-10 °C	Ball Screw	Brushed	100 mm	3.937 in	9.44 lbf	42 N
