L12-50 Series

Manufacturer: Actuonix Motion Devices Inc

Catalog

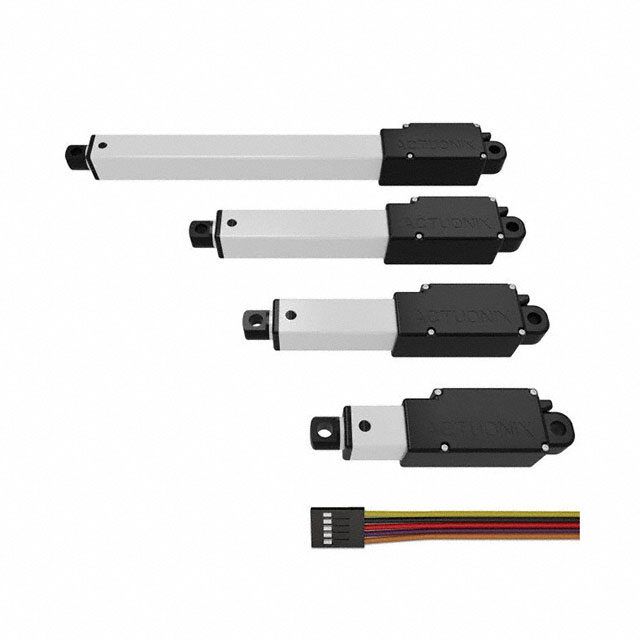

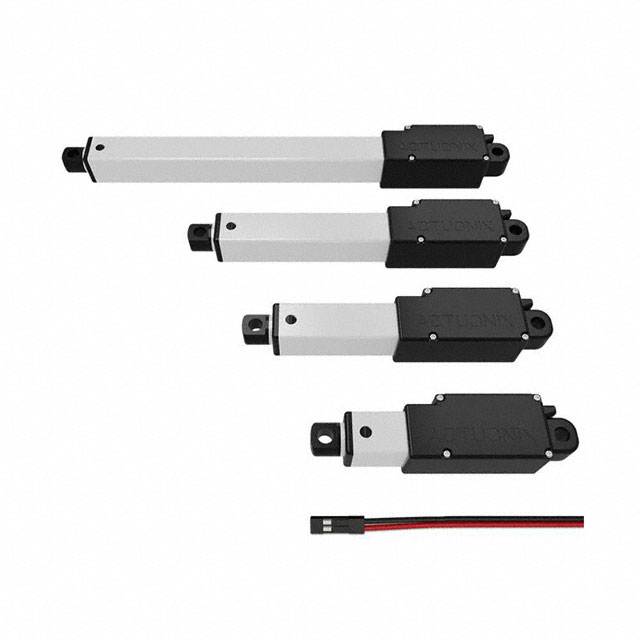

L12-P MICRO LINEAR ACTUATOR

Part	Termination Style	Construction	Motor Type	Type	Accuracy	Operating Temperature (Min)	Operating Temperature (Max)	Speed	Load Force (Dynamic)	Duty Cycle	Stroke Length (Linear)	Voltage - Rated	Gear Reduction Ratio	Ingress Protection IP Rating	Ingress Protection Description	Load Force (Static)	Feedback Type	Features
Actuonix Motion Devices Inc L12-50-210-6-P	Wire Leads with Connector	Ball Screw	Brushed	Linear Actuator	300 µm	-10 °C	50 °C	0.26 in/s	17.99 lbf	20 %	1.969 in	6 VDC	210	IP54	Dust Protected Water Resistant	44.96 lbf	Potentiometer

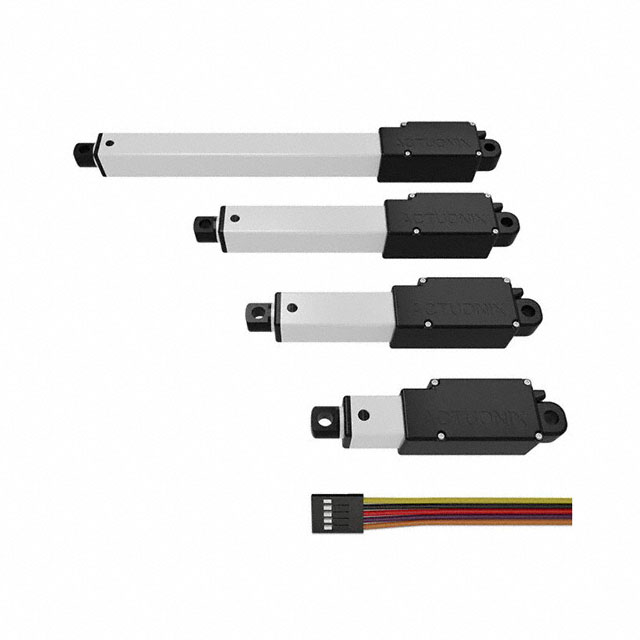

Actuonix Motion Devices Inc L12-50-100-6-I	Wire Leads with Connector	Ball Screw	Brushed	Linear Actuator	300 µm	-10 °C	50 °C	0.51 in/s	9.44 lbf	20 %	1.969 in	6 VDC	100	IP54	Dust Protected Water Resistant	44.96 lbf	Potentiometer	Integrated Controller
Actuonix Motion Devices Inc L12-50-50-12-P	Wire Leads with Connector	Ball Screw	Brushed	Linear Actuator	300 µm	-10 °C	50 °C	0.98 in/s	4.95 lbf	20 %	1.969 in	12 VAC	50	IP54	Dust Protected Water Resistant	44.96 lbf	Potentiometer
Actuonix Motion Devices Inc L12-50-50-6-P	Wire Leads with Connector	Ball Screw	Brushed	Linear Actuator	300 µm	-10 °C	50 °C	0.98 in/s	4.95 lbf	20 %	1.969 in	6 VDC	50	IP54	Dust Protected Water Resistant	44.96 lbf	Potentiometer
Actuonix Motion Devices Inc L12-50-210-6-I	Wire Leads with Connector	Ball Screw	Brushed	Linear Actuator	300 µm	-10 °C	50 °C	0.26 in/s	17.99 lbf	20 %	1.969 in	6 VDC	210	IP54	Dust Protected Water Resistant	44.96 lbf	Potentiometer	Integrated Controller

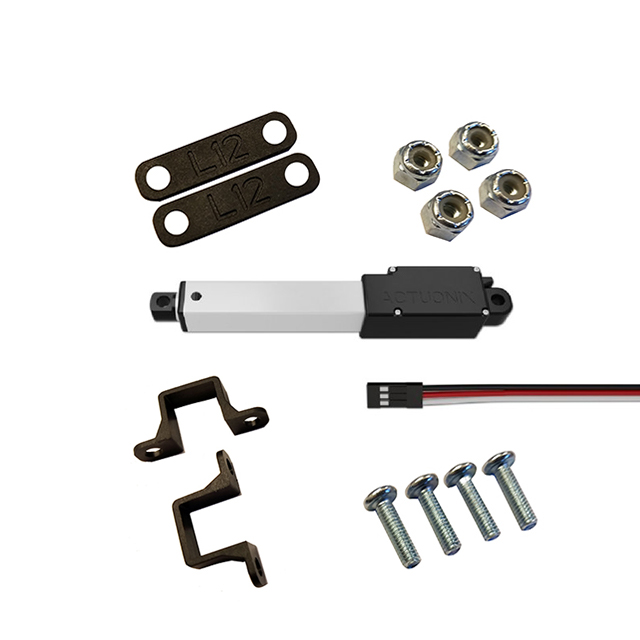

Actuonix Motion Devices Inc L12-50-50-6-R	Wire Leads with Connector	Ball Screw	Brushed	Linear Actuator	300 µm	-10 °C	50 °C	0.98 in/s	4.95 lbf	20 %	1.969 in	6 VDC	50	IP54	Dust Protected Water Resistant	44.96 lbf		RC Linear Servo

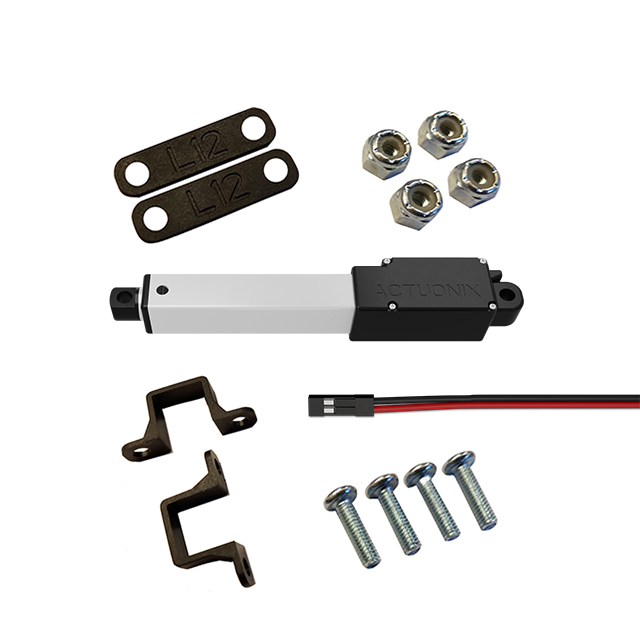

Actuonix Motion Devices Inc L12-50-100-12-S	Wire Leads with Connector	Ball Screw	Brushed	Linear Actuator	300 µm	-10 °C	50 °C	0.51 in/s	9.44 lbf	20 %	1.969 in	12 VAC	100	IP54	Dust Protected Water Resistant	44.96 lbf		Limit Switches
Actuonix Motion Devices Inc L12-50-100-6-R	Wire Leads with Connector	Ball Screw	Brushed	Linear Actuator	300 µm	-10 °C	50 °C	0.51 in/s	9.44 lbf	20 %	1.969 in	6 VDC	100	IP54	Dust Protected Water Resistant	44.96 lbf		RC Linear Servo
Actuonix Motion Devices Inc L12-50-210-12-S	Wire Leads with Connector	Ball Screw	Brushed	Linear Actuator	300 µm	-10 °C	50 °C	0.26 in/s	17.99 lbf	20 %	1.969 in	12 VAC	210	IP54	Dust Protected Water Resistant	44.96 lbf		Limit Switches
Actuonix Motion Devices Inc L12-50-50-6-S	Wire Leads with Connector	Ball Screw	Brushed	Linear Actuator	300 µm	-10 °C	50 °C	0.98 in/s	4.95 lbf	20 %	1.969 in	6 VDC	50	IP54	Dust Protected Water Resistant	44.96 lbf		Limit Switches
