P16-100 Series

Catalog

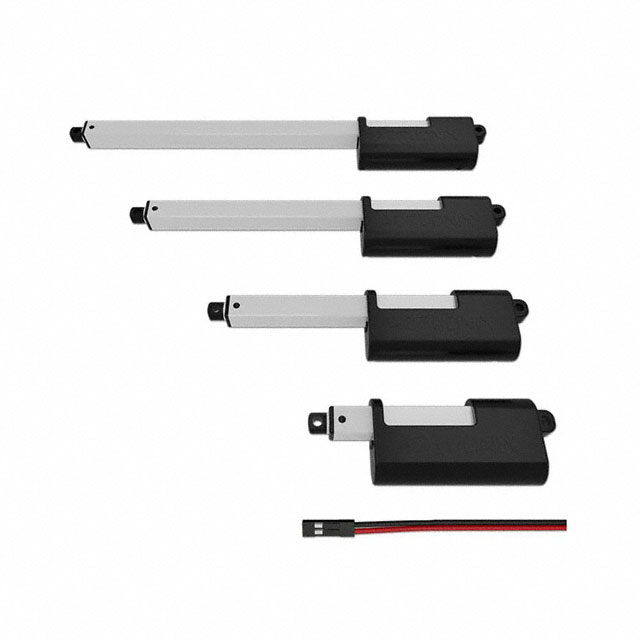

P16-P MICRO LINEAR ACTUATOR

Part	Stroke Length	Stroke Length	Feedback Type	Type	Motor Type	Ingress Protection	Construction	Load Force (Dynamic)	Load Force (Dynamic)	Duty Cycle	Accuracy	Speed	Speed	Gear Reduction Ratio	Operating Temperature [Max]	Operating Temperature [Min]	Load Force (Static)	Load Force (Static)	Voltage - Rated	Features
Actuonix Motion Devices Inc P16-100-22-12-P	100 mm	3.937 in	Potentiometer	Linear Actuator	Brushed	IP54 - Dust Protected Water Resistant	Ball Screw	11.24 lbf	50 N	20 %	0.4 mm	1.81 in/s	46 mm/s	22	50 °C	-10 °C	122.4 lbf	500 N	12 VDC
Actuonix Motion Devices Inc P16-100-256-12-S	100 mm	3.937 in		Linear Actuator	Brushed	IP54 - Dust Protected Water Resistant	Ball Screw	67.44 lbf	300 N	20 %	0.4 mm	0.19 in/s	4.8 mm/s	256	50 °C	-10 °C	122.4 lbf	500 N	12 VDC	Limit Switches
Actuonix Motion Devices Inc P16-100-22-12-S	100 mm	3.937 in		Linear Actuator	Brushed	IP54 - Dust Protected Water Resistant	Ball Screw	11.24 lbf	50 N	20 %	0.4 mm	1.81 in/s	46 mm/s	22	50 °C	-10 °C	122.4 lbf	500 N	12 VDC	Limit Switches
Actuonix Motion Devices Inc P16-100-64-12-S	100 mm	3.937 in		Linear Actuator	Brushed	IP54 - Dust Protected Water Resistant	Ball Screw	20.23 lbf	90 N	20 %	0.4 mm	0.71 in/s	18 mm/s	64	50 °C	-10 °C	122.4 lbf	500 N	12 VDC	Limit Switches
Actuonix Motion Devices Inc P16-100-256-12-P	100 mm	3.937 in	Potentiometer	Linear Actuator	Brushed	IP54 - Dust Protected Water Resistant	Ball Screw	67.44 lbf	300 N	20 %	0.4 mm	0.19 in/s	4.8 mm/s	256	50 °C	-10 °C	122.4 lbf	500 N	12 VDC
