L16-140 Series

Manufacturer: Actuonix Motion Devices Inc

Catalog

L16-P MICRO LINEAR ACTUATOR

Part	Feedback Type	Gear Reduction Ratio	Voltage - Rated	Load Force (Static)	Load Force (Static)	Operating Temperature [Max]	Operating Temperature [Min]	Type	Construction	Accuracy	Motor Type	Load Force (Dynamic)	Load Force (Dynamic)	Stroke Length	Stroke Length	Ingress Protection	Duty Cycle	Speed	Speed	Features
Actuonix Motion Devices Inc L16-140-150-12-P	Potentiometer	150	12 VDC	56.2 lbf	250 N	50 °C	-10 °C	Linear Actuator	Ball Screw	0.5 mm	Brushed	44.96 lbf	200 N	140 mm	5.512 in	IP54 - Dust Protected Water Resistant	20 %	8 mm/s	0.32 in/s

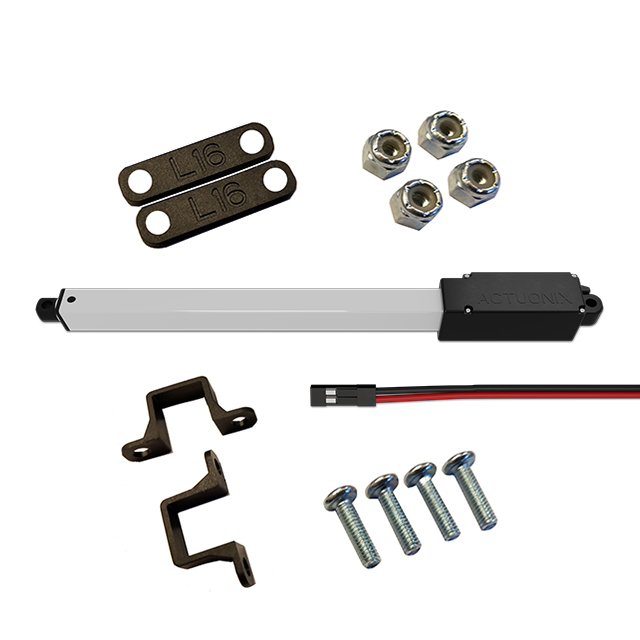

Actuonix Motion Devices Inc L16-140-35-12-S		35	12 VDC	56.2 lbf	250 N	50 °C	-10 °C	Linear Actuator	Ball Screw	0.5 mm	Brushed	11.24 lbf	50 N	140 mm	5.512 in	IP54 - Dust Protected Water Resistant	20 %	32 mm/s	1.26 in/s	Limit Switches

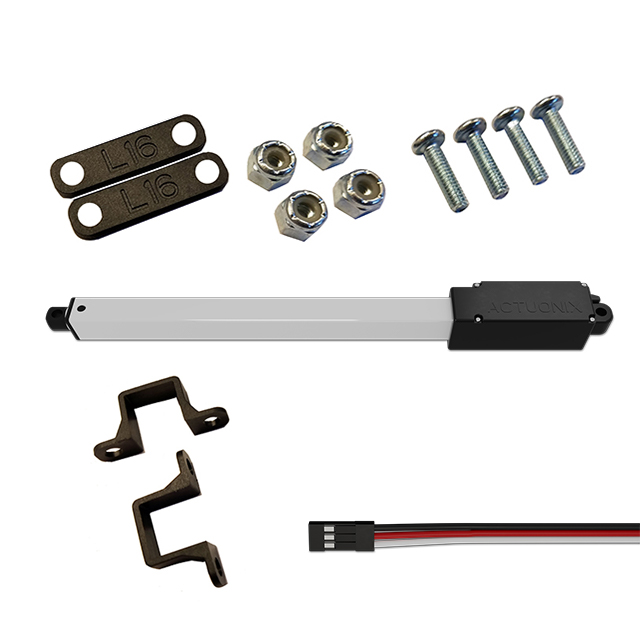

Actuonix Motion Devices Inc L16-140-63-6-R		63	6 VDC	56.2 lbf	250 N	50 °C	-10 °C	Linear Actuator	Ball Screw	0.5 mm	Brushed	22.48 lbf	100 N	140 mm	5.512 in	IP54 - Dust Protected Water Resistant	20 %	20 mm/s	0.79 in/s	RC Linear Servo
Actuonix Motion Devices Inc L16-140-150-12-S		150	12 VDC	56.2 lbf	250 N	50 °C	-10 °C	Linear Actuator	Ball Screw	0.5 mm	Brushed	44.96 lbf	200 N	140 mm	5.512 in	IP54 - Dust Protected Water Resistant	20 %	8 mm/s	0.32 in/s	Limit Switches
Actuonix Motion Devices Inc L16-140-63-12-P	Potentiometer	63	12 VDC	56.2 lbf	250 N	50 °C	-10 °C	Linear Actuator	Ball Screw	0.5 mm	Brushed	22.48 lbf	100 N	140 mm	5.512 in	IP54 - Dust Protected Water Resistant	20 %	20 mm/s	0.79 in/s
Actuonix Motion Devices Inc L16-140-35-12-P	Potentiometer	35	12 VDC	56.2 lbf	250 N	50 °C	-10 °C	Linear Actuator	Ball Screw	0.5 mm	Brushed	11.24 lbf	50 N	140 mm	5.512 in	IP54 - Dust Protected Water Resistant	20 %	32 mm/s	1.26 in/s
Actuonix Motion Devices Inc L16-140-35-6-R		35	6 VDC	56.2 lbf	250 N	50 °C	-10 °C	Linear Actuator	Ball Screw	0.5 mm	Brushed	11.24 lbf	50 N	140 mm	5.512 in	IP54 - Dust Protected Water Resistant	20 %	32 mm/s	1.26 in/s	RC Linear Servo
Actuonix Motion Devices Inc L16-140-63-12-S		63	12 VDC	56.2 lbf	250 N	50 °C	-10 °C	Linear Actuator	Ball Screw	0.5 mm	Brushed	22.48 lbf	100 N	140 mm	5.512 in	IP54 - Dust Protected Water Resistant	20 %	20 mm/s	0.79 in/s	Limit Switches
Actuonix Motion Devices Inc L16-140-150-6-R		150	6 VDC	56.2 lbf	250 N	50 °C	-10 °C	Linear Actuator	Ball Screw	0.5 mm	Brushed	44.96 lbf	200 N	140 mm	5.512 in	IP54 - Dust Protected Water Resistant	20 %	8 mm/s	0.32 in/s	RC Linear Servo
