L16-100 Series

Manufacturer: Actuonix Motion Devices Inc

Catalog

L16-R MINIATURE LINEAR SERVO

Part	Features	Operating Temperature [Max]	Operating Temperature [Min]	Motor Type	Load Force (Static)	Load Force (Static)	Duty Cycle	Stroke Length	Stroke Length	Ingress Protection	Type	Load Force (Dynamic)	Load Force (Dynamic)	Speed	Speed	Voltage - Rated	Gear Reduction Ratio	Accuracy	Construction	Feedback Type

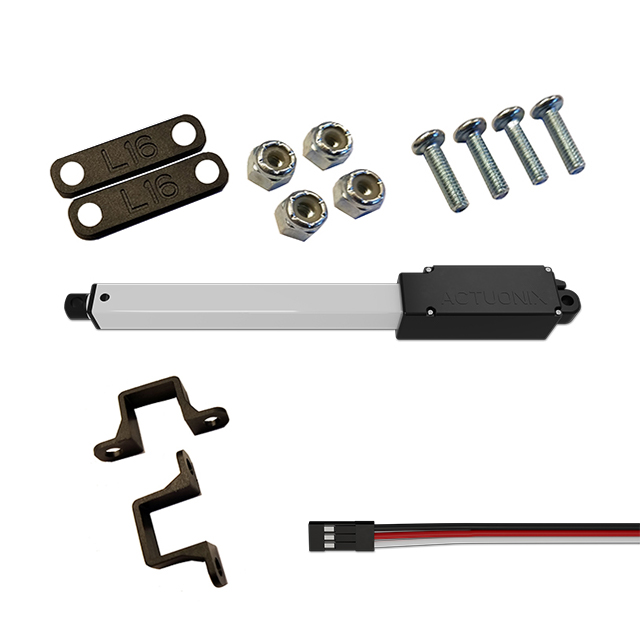

Actuonix Motion Devices Inc L16-100-150-6-R	RC Linear Servo	50 °C	-10 °C	Brushed	56.2 lbf	250 N	20 %	100 mm	3.937 in	IP54 - Dust Protected Water Resistant	Linear Actuator	44.96 lbf	200 N	8 mm/s	0.32 in/s	6 VDC	150	0.4 mm	Ball Screw
Actuonix Motion Devices Inc L16-100-63-6-R	RC Linear Servo	50 °C	-10 °C	Brushed	56.2 lbf	250 N	20 %	100 mm	3.937 in	IP54 - Dust Protected Water Resistant	Linear Actuator	22.48 lbf	100 N	20 mm/s	0.79 in/s	6 VDC	63	0.4 mm	Ball Screw
Actuonix Motion Devices Inc L16-100-150-12-P		50 °C	-10 °C	Brushed	56.2 lbf	250 N	20 %	100 mm	3.937 in	IP54 - Dust Protected Water Resistant	Linear Actuator	44.96 lbf	200 N	8 mm/s	0.32 in/s	12 VDC	150	0.4 mm	Ball Screw	Potentiometer
Actuonix Motion Devices Inc L16-100-35-6-R	RC Linear Servo	50 °C	-10 °C	Brushed	56.2 lbf	250 N	20 %	100 mm	3.937 in	IP54 - Dust Protected Water Resistant	Linear Actuator	11.24 lbf	50 N	32 mm/s	1.26 in/s	6 VDC	35	0.4 mm	Ball Screw
Actuonix Motion Devices Inc L16-100-63-12-P		50 °C	-10 °C	Brushed	56.2 lbf	250 N	20 %	100 mm	3.937 in	IP54 - Dust Protected Water Resistant	Linear Actuator	22.48 lbf	100 N	20 mm/s	0.79 in/s	12 VDC	63	0.4 mm	Ball Screw	Potentiometer

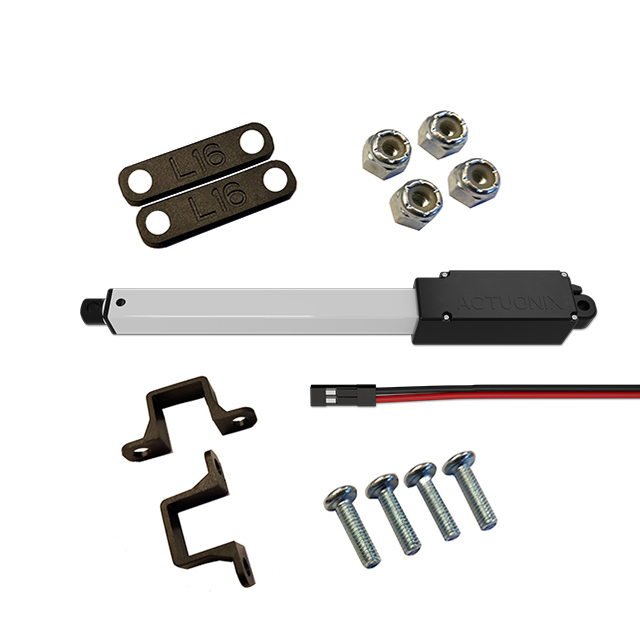

Actuonix Motion Devices Inc L16-100-35-12-S	Limit Switches	50 °C	-10 °C	Brushed	56.2 lbf	250 N	20 %	100 mm	3.937 in	IP54 - Dust Protected Water Resistant	Linear Actuator	11.24 lbf	50 N	32 mm/s	1.26 in/s	12 VDC	35	0.4 mm	Ball Screw
Actuonix Motion Devices Inc L16-100-63-12-S	Limit Switches	50 °C	-10 °C	Brushed	56.2 lbf	250 N	20 %	100 mm	3.937 in	IP54 - Dust Protected Water Resistant	Linear Actuator	22.48 lbf	100 N	20 mm/s	0.79 in/s	12 VDC	63	0.4 mm	Ball Screw
Actuonix Motion Devices Inc L16-100-150-12-S	Limit Switches	50 °C	-10 °C	Brushed	56.2 lbf	250 N	20 %	100 mm	3.937 in	IP54 - Dust Protected Water Resistant	Linear Actuator	44.96 lbf	200 N	8 mm/s	0.32 in/s	12 VDC	150	0.4 mm	Ball Screw
Actuonix Motion Devices Inc L16-100-35-12-P		50 °C	-10 °C	Brushed	56.2 lbf	250 N	20 %	100 mm	3.937 in	IP54 - Dust Protected Water Resistant	Linear Actuator	11.24 lbf	50 N	32 mm/s	1.26 in/s	12 VDC	35	0.4 mm	Ball Screw	Potentiometer
