L12-30 Series

Manufacturer: Actuonix Motion Devices Inc

Catalog

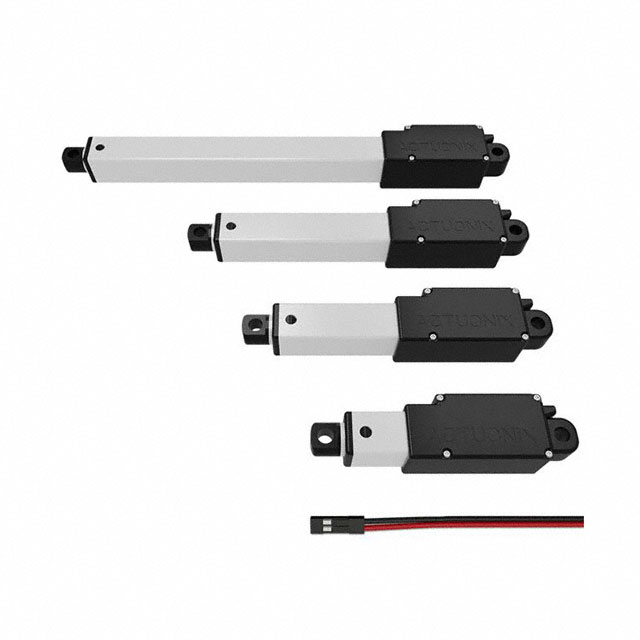

L12 -R MICRO LINEAR SERVO

Part	Load Force (Dynamic)	Motor Type	Load Force (Static)	Features	Gear Reduction Ratio	Operating Temperature (Min)	Operating Temperature (Max)	Accuracy	Termination Style	Speed	Construction	Stroke Length (Linear)	Type	Ingress Protection IP Rating	Ingress Protection Description	Duty Cycle	Voltage - Rated	Feedback Type

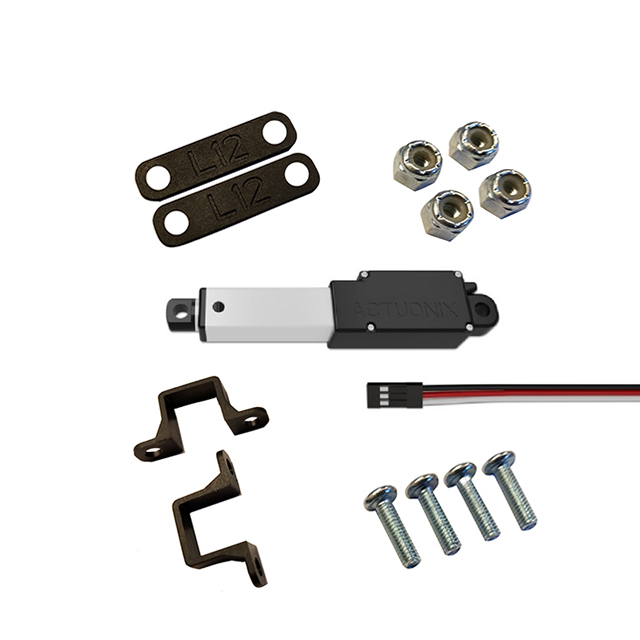

Actuonix Motion Devices Inc L12-30-210-6-R	17.99 lbf	Brushed	44.96 lbf	RC Linear Servo	210	-10 °C	50 °C	0.2 mm	Wire Leads with Connector	0.26 in/s	Ball Screw	1.181 in	Linear Actuator	IP54	Dust Protected Water Resistant	20 %	6 VDC

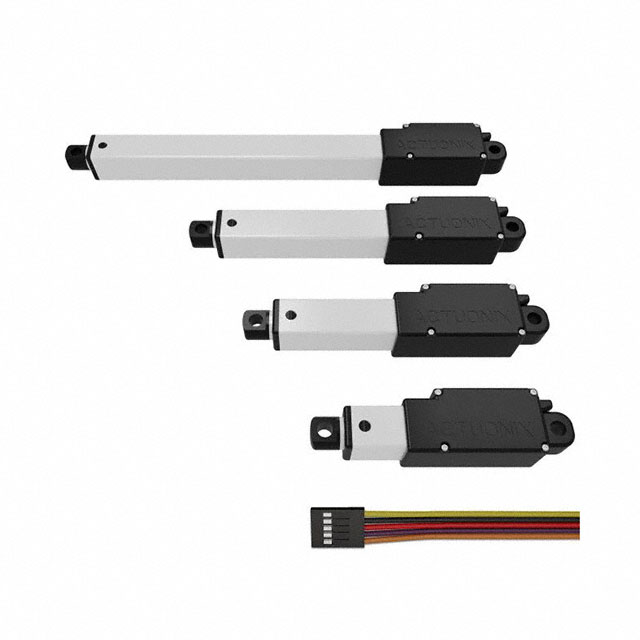

Actuonix Motion Devices Inc L12-30-210-6-P	17.99 lbf	Brushed	44.96 lbf		210	-10 °C	50 °C	0.2 mm	Wire Leads with Connector	0.26 in/s	Ball Screw	1.181 in	Linear Actuator	IP54	Dust Protected Water Resistant	20 %	6 VDC	Potentiometer
Actuonix Motion Devices Inc L12-30-50-12-P	4.95 lbf	Brushed	44.96 lbf		50	-10 °C	50 °C	0.2 mm	Wire Leads with Connector	0.98 in/s	Ball Screw	1.181 in	Linear Actuator	IP54	Dust Protected Water Resistant	20 %	12 VAC	Potentiometer

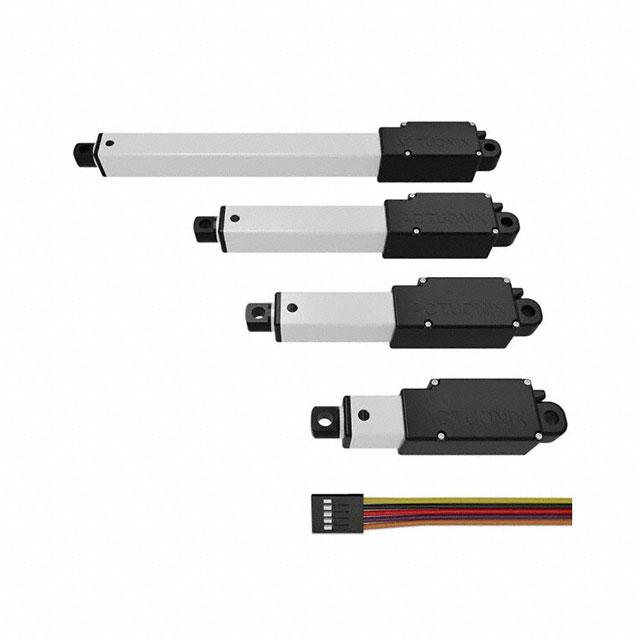

Actuonix Motion Devices Inc L12-30-50-12-I	4.95 lbf	Brushed	44.96 lbf	Integrated Controller	50	-10 °C	50 °C	0.2 mm	Wire Leads with Connector	0.98 in/s	Ball Screw	1.181 in	Linear Actuator	IP54	Dust Protected Water Resistant	20 %	12 VAC	Potentiometer
Actuonix Motion Devices Inc L12-30-210-6-S	17.99 lbf	Brushed	44.96 lbf	Limit Switches	210	-10 °C	50 °C	0.2 mm	Wire Leads with Connector	0.26 in/s	Ball Screw	1.181 in	Linear Actuator	IP54	Dust Protected Water Resistant	20 %	6 VDC
Actuonix Motion Devices Inc L12-30-100-12-I	9.44 lbf	Brushed	44.96 lbf	Integrated Controller	100	-10 °C	50 °C	0.2 mm	Wire Leads with Connector	0.51 in/s	Ball Screw	1.181 in	Linear Actuator	IP54	Dust Protected Water Resistant	20 %	12 VAC	Potentiometer
Actuonix Motion Devices Inc L12-30-100-12-P	9.44 lbf	Brushed	44.96 lbf		100	-10 °C	50 °C	0.2 mm	Wire Leads with Connector	0.51 in/s	Ball Screw	1.181 in	Linear Actuator	IP54	Dust Protected Water Resistant	20 %	12 VAC	Potentiometer
Actuonix Motion Devices Inc L12-30-210-12-I	17.99 lbf	Brushed	44.96 lbf	Integrated Controller	210	-10 °C	50 °C	0.2 mm	Wire Leads with Connector	0.26 in/s	Ball Screw	1.181 in	Linear Actuator	IP54	Dust Protected Water Resistant	20 %	12 VAC	Potentiometer
Actuonix Motion Devices Inc L12-30-50-6-I	4.95 lbf	Brushed	44.96 lbf	Integrated Controller	50	-10 °C	50 °C	0.2 mm	Wire Leads with Connector	0.98 in/s	Ball Screw	1.181 in	Linear Actuator	IP54	Dust Protected Water Resistant	20 %	6 VDC	Potentiometer
Actuonix Motion Devices Inc L12-30-100-6-P	9.44 lbf	Brushed	44.96 lbf		100	-10 °C	50 °C	0.2 mm	Wire Leads with Connector	0.51 in/s	Ball Screw	1.181 in	Linear Actuator	IP54	Dust Protected Water Resistant	20 %	6 VDC	Potentiometer
