L12-10 Series

Manufacturer: Actuonix Motion Devices Inc

Catalog

L12-S MICRO LINEAR ACTUATOR

Part	Operating Temperature (Min)	Operating Temperature (Max)	Duty Cycle	Ingress Protection IP Rating	Ingress Protection Description	Termination Style	Type	Construction	Load Force (Dynamic)	Load Force (Static)	Stroke Length (Linear)	Motor Type	Gear Reduction Ratio	Features	Voltage - Rated	Accuracy	Speed	Feedback Type
Actuonix Motion Devices Inc L12-10-50-6-S	-10 °C	50 °C	20 %	IP54	Dust Protected Water Resistant	Wire Leads with Connector	Linear Actuator	Ball Screw	4.95 lbf	44.96 lbf	0.394 in	Brushed	50	Limit Switches	6 VDC	0.1 mm	0.98 in/s
Actuonix Motion Devices Inc L12-10-210-6-P	-10 °C	50 °C	20 %	IP54	Dust Protected Water Resistant	Wire Leads with Connector	Linear Actuator	Ball Screw	17.99 lbf	44.96 lbf	0.394 in	Brushed	210		6 VDC	0.1 mm	0.26 in/s	Potentiometer
Actuonix Motion Devices Inc L12-10-100-12-P	-10 °C	50 °C	20 %	IP54	Dust Protected Water Resistant	Wire Leads with Connector	Linear Actuator	Ball Screw	9.44 lbf	44.96 lbf	0.394 in	Brushed	100		12 VAC	0.1 mm	0.51 in/s	Potentiometer

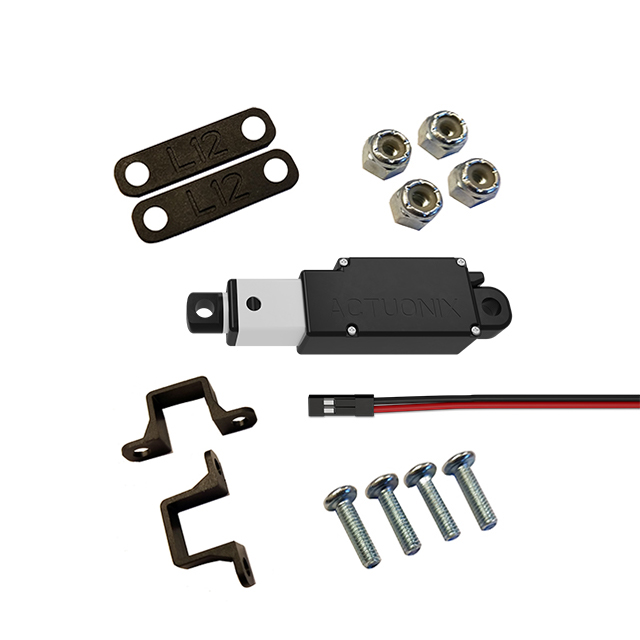

Actuonix Motion Devices Inc L12-10-210-12-S	-10 °C	50 °C	20 %	IP54	Dust Protected Water Resistant	Wire Leads with Connector	Linear Actuator	Ball Screw	17.99 lbf	44.96 lbf	0.394 in	Brushed	210	Limit Switches	12 VAC	0.1 mm	0.26 in/s
Actuonix Motion Devices Inc L12-10-100-6-S	-10 °C	50 °C	20 %	IP54	Dust Protected Water Resistant	Wire Leads with Connector	Linear Actuator	Ball Screw	9.44 lbf	44.96 lbf	0.394 in	Brushed	100	Limit Switches	6 VDC	0.1 mm	0.51 in/s
Actuonix Motion Devices Inc L12-10-210-12-P	-10 °C	50 °C	20 %	IP54	Dust Protected Water Resistant	Wire Leads with Connector	Linear Actuator	Ball Screw	17.99 lbf	44.96 lbf	0.394 in	Brushed	210		12 VAC	0.1 mm	0.26 in/s	Potentiometer
Actuonix Motion Devices Inc L12-10-100-12-S	-10 °C	50 °C	20 %	IP54	Dust Protected Water Resistant	Wire Leads with Connector	Linear Actuator	Ball Screw	9.44 lbf	44.96 lbf	0.394 in	Brushed	100	Limit Switches	12 VAC	0.1 mm	0.51 in/s
Actuonix Motion Devices Inc L12-10-50-12-S	-10 °C	50 °C	20 %	IP54	Dust Protected Water Resistant	Wire Leads with Connector	Linear Actuator	Ball Screw	4.95 lbf	44.96 lbf	0.394 in	Brushed	50	Limit Switches	12 VAC	0.1 mm	0.98 in/s
Actuonix Motion Devices Inc L12-10-100-6-P	-10 °C	50 °C	20 %	IP54	Dust Protected Water Resistant	Wire Leads with Connector	Linear Actuator	Ball Screw	9.44 lbf	44.96 lbf	0.394 in	Brushed	100		6 VDC	0.1 mm	0.51 in/s	Potentiometer
Actuonix Motion Devices Inc L12-10-50-6-P	-10 °C	50 °C	20 %	IP54	Dust Protected Water Resistant	Wire Leads with Connector	Linear Actuator	Ball Screw	4.95 lbf	44.96 lbf	0.394 in	Brushed	50		6 VDC	0.1 mm	0.98 in/s	Potentiometer
