The TMCM-1260 is a single axis motor controller/driver board for 2-phase bipolar stepper motors with up-to 6A RMS motor current and 48V DC supply. It supports SixPoint™ramps in addition to linear ramps.All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.More about the TMCL-IDEAPPLICATIONSLaboratory AutomationManufacturingSemiconductor HandlingRoboticsFactory AutomationTest & MeasurementLife ScienceBiotechnologyLiquid Handling

The TMCM-1270 is a single axis stepper motor controller/driver module for sensorless load dependent current control. The device is powered by ADI Trinamic stallGuard2™, coolStep™, spreadCycle™chopper and stealthChop™technology and has a sixPoint™ramp generator. The TMCM-1270 is capable of driving up to 1.4A of current from each output (with proper heatsinking). It is designed for an operating voltage of 6 to 26V. The device provides a CAN interface. An integrated protocol processor supplies a high level TMCL/ CANopen communication.APPLICATIONSLab-AutomationManufacturingRoboticsFactory AutomationCNCLaboratory Automation

TMCM-1276 is an easy to use smart stepper motor driver module. The module is controlled via a CAN bus interface and comes with two firmware options – TMCL and CANopen. TMCM-1276 features StealthChop™for absolute silent motor control, SpreadCycle™for high speed stepper motor commutation, a fully integrated hardware motion controller with SixPoint™motion ramps, as well as StallGuard2™and CoolStep™.All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.More about the TMCL-IDEAPPLICATIONSLab-AutomationManufacturingRoboticsFactory AutomationCNC

TMCM-1278 is an easy-to-use, high-power, single axis smart stepper motor driver module. The module with special housing enclosure is primarily designed for NEMA23/24 size stepper motors.This product is controlled and configured via a CAN bus interface and comes with two firmware options – TMCL and CANopen. TMCM-1278 features StealthChop™ for absolute silent motor control, SpreadCycle™ for high speed stepper motor commutation, a fully integrated hardware motion controller with SixPoint™ motion ramps, as well as StallGuard2™ and CoolStep™.All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.More about the TMCL-IDEAPPLICATIONSLab-AutomationManufacturingRoboticsFactory AutomationCNC

The TMCM-1310 is a fully closed single axis stepper control unit for all applications that require high reliability and dynamics. The device is powered by ADI Trinamic StallGuard2™, CoolStep™and SpreadCycle™chopper technology. The TMCM-1310 is capable of driving up to 4.3A of current from each output (with proper heatsinking). It is designed for an operating voltage of 9 to 51V. The device provides an USB, EtherCAT and encoder interface. An integrated protocol processor supplies a high level CANopen®over EtherCAT communication.All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.More about the TMCL-IDE

The TMCM-1316 is a single axis motor controller/driver board for 2-phase bipolar stepper motors including closed-loop operations with external encoder. It features the ADI TRINAMIC controller/driver chain consisting of TMC4361 and TMC5160 in combination with an ARM Cortex-M4™(MK20DX128VLK7) processor. The Module is intended to be a fully functional development platform.All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.More about the TMCL-IDEAPPLICATIONSLaboratory AutomationManufacturingRoboticsFactory AutomationTest & MeasurementTechnology evaluationFirst experiences with stepper motorsHobby application

The TMCM-1617 is a low-weight miniaturized single axis servo driver for 3-phase BLDC motors with up to 18A RMS motor current and +24V supply. With CAN, RS485, and EtherCAT®it offers various communication options. TMCM-1617 supports incremental encoders and digital hall sensors as position feedback. Housing is included for the standard modules, but customization options are possible.All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.More about the TMCL-IDEAPPLICATIONSRoboticsLaboratory AutomationManufacturingFactory AutomationServo DrivesLow Inductance Motors

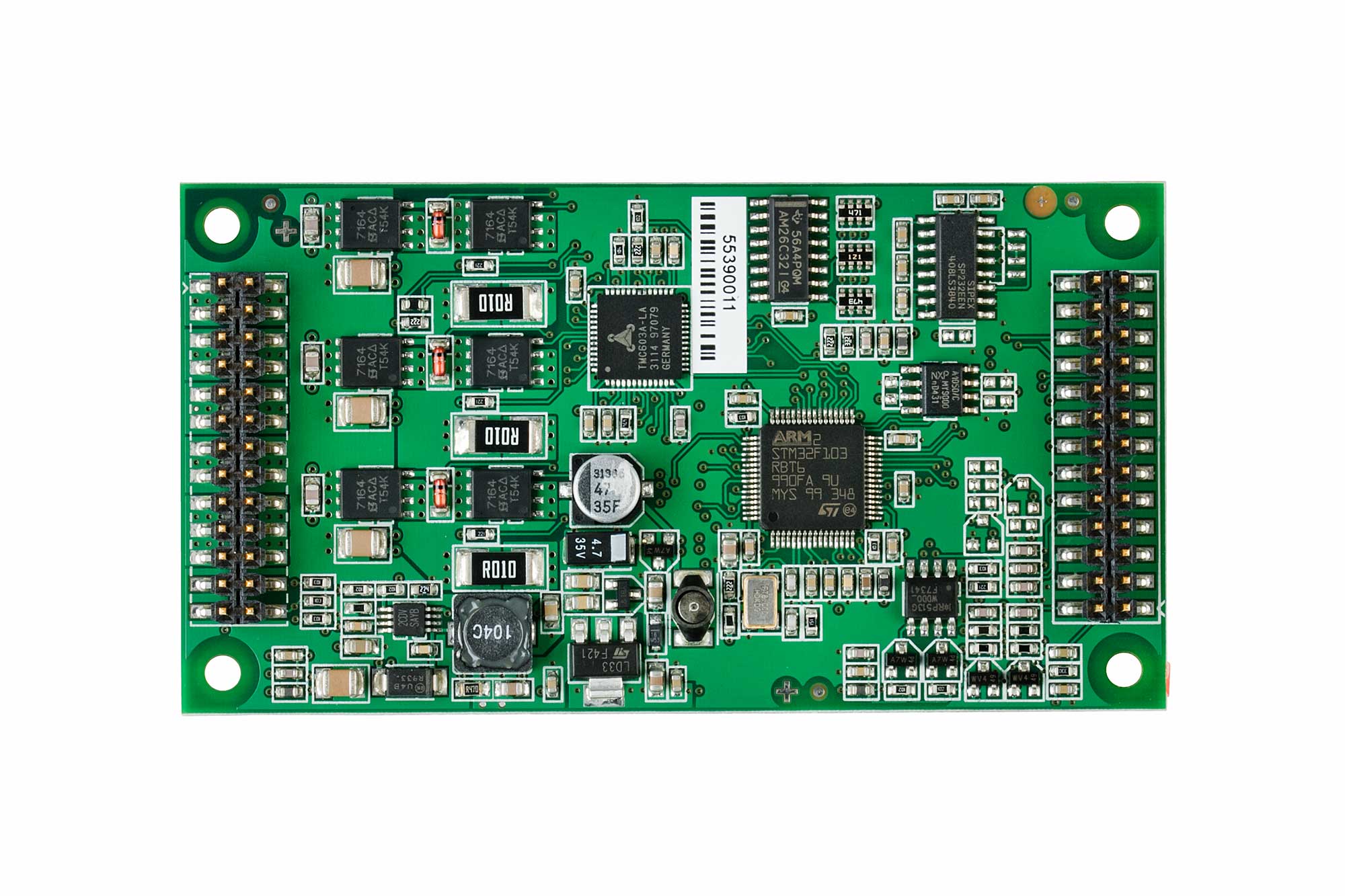

The TMCM-1630 is a compact single axis controller/ driver module for brushless DC motor applications. The device can deliver up-to 14A peak per motor phase (with proper heatsinking) and a continuous output power of 150 to 300W. The TMCM-1630 is made for supply voltages of 15...48V. Depending on the commutation mode the TMCM-1630 works with velocity and/or position control. The module can be used in standalone operation or remote controlled via serial interface RS232,CAN or optional with RS485 / USB using ADI Trinamic's Motion Control Language TMCL.The TMCM-1630 is compatible with Trinamic's baseboard BB-163x.All you need to get started is a power supply and Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.More about the TMCL-IDEApplicationsDemanding single and multi-axis BLDC motor solutions
