TMCM-1260 Series

Motor mountable stepper motor controller/driver module 12 to 54V, 6A, 256 µSteps, SixPoint ramp controller with USB, S/D, CAN and RS485 Interface, StallGuard, CoolStep, StealthChop

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

Motor mountable stepper motor controller/driver module 12 to 54V, 6A, 256 µSteps, SixPoint ramp controller with USB, S/D, CAN and RS485 Interface, StallGuard, CoolStep, StealthChop

Part	Number of Motors	Mounting Type	Type	Control / Drive Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Motor Type	Current - Output	Interface	Specifications	Usage	Accessory Type	For Use With/Related Products

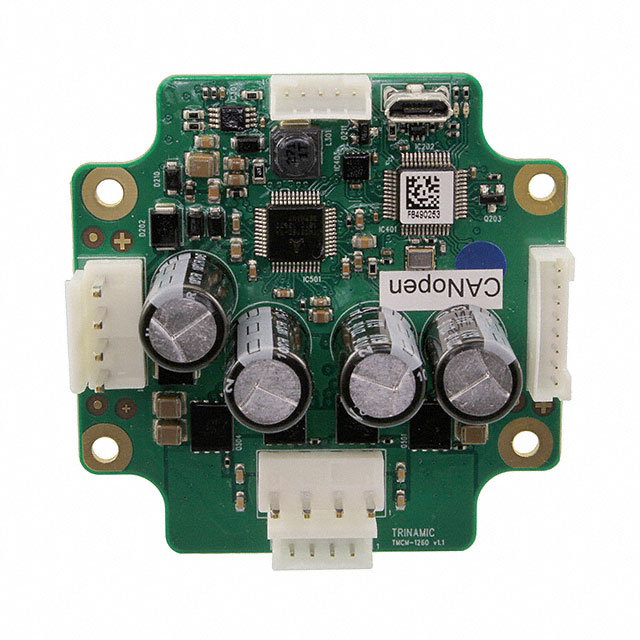

Analog Devices Inc./Maxim Integrated TMCM-1260-CANOPEN	2	Chassis Mount	Board	Bipolar Stepper	40 °C	-30 ░C	12 VDC	54 V	Stepper	6 A	CAN RS-485 USB

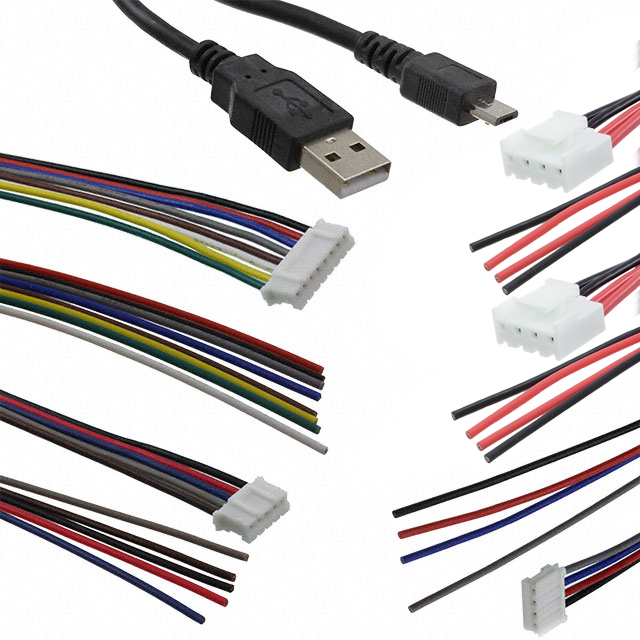

Analog Devices Inc./Maxim Integrated TMCM-1260-CABLE												200 mm	Communications	Cable Assembly	TMCM-1260 Series

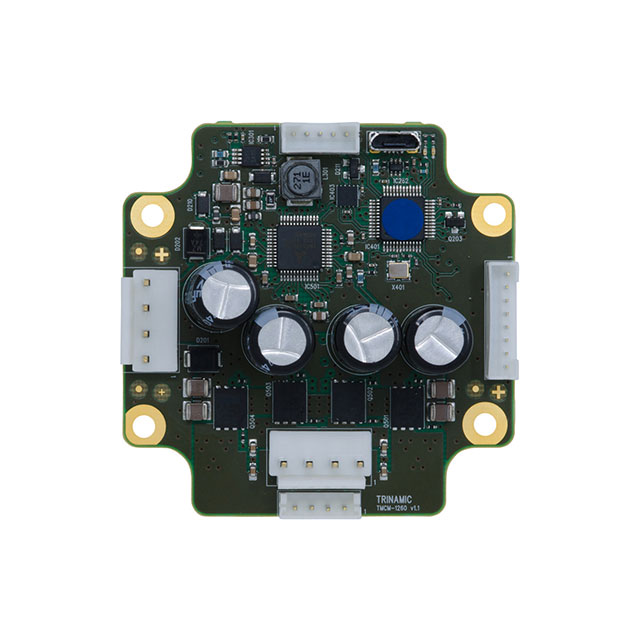

Analog Devices Inc./Maxim Integrated TMCM-1260-TMCL		Chassis Mount	Board	Bipolar Stepper	40 °C	-30 ░C	12 VDC	54 V	Stepper	6 A	CAN RS-485 USB

Catalog

Motor mountable stepper motor controller/driver module 12 to 54V, 6A, 256 µSteps, SixPoint ramp controller with USB, S/D, CAN and RS485 Interface, StallGuard, CoolStep, StealthChop

Description

The TMCM-1260 is a single axis motor controller/driver board for 2-phase bipolar stepper motors with up-to 6A RMS motor current and 48V DC supply. It supports SixPoint™ramps in addition to linear ramps.All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.More about the TMCL-IDEAPPLICATIONSLaboratory AutomationManufacturingSemiconductor HandlingRoboticsFactory AutomationTest & MeasurementLife ScienceBiotechnologyLiquid Handling
