TMCM-1617 Series

Low-weight miniaturized servo drive for 3-phase BLDC motors 8 to 28V, 18A, with CAN and RS485 Interface

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

Low-weight miniaturized servo drive for 3-phase BLDC motors 8 to 28V, 18A, with CAN and RS485 Interface

Part	Interface	Mounting Type	Current - Output	Voltage - Supply [Max]	Voltage - Supply [Min]	Control / Drive Type	Motor Type	Type	For Use With/Related Products	Utilized IC / Part	Accessory Type	Voltage - Supply

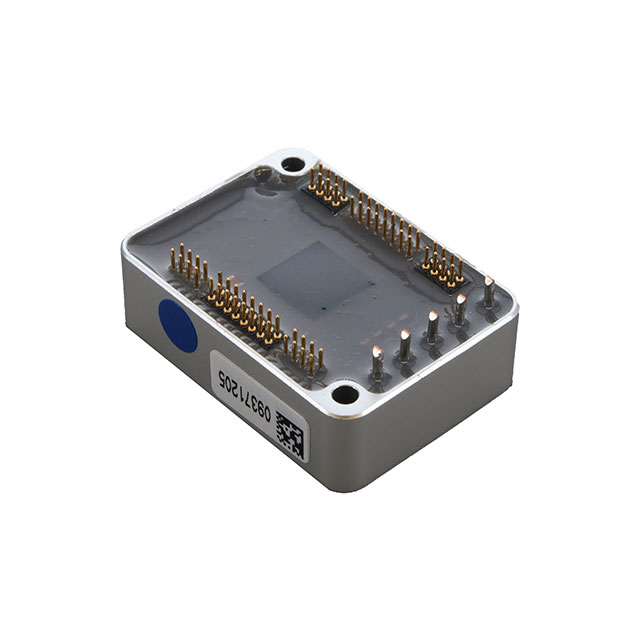

Analog Devices Inc./Maxim Integrated TMCM-1617-COE	CAN EtherCAT RS-485	Chassis Mount	18 A	28 V	8 V	Servo DC	Brushless (BLDC)	Module

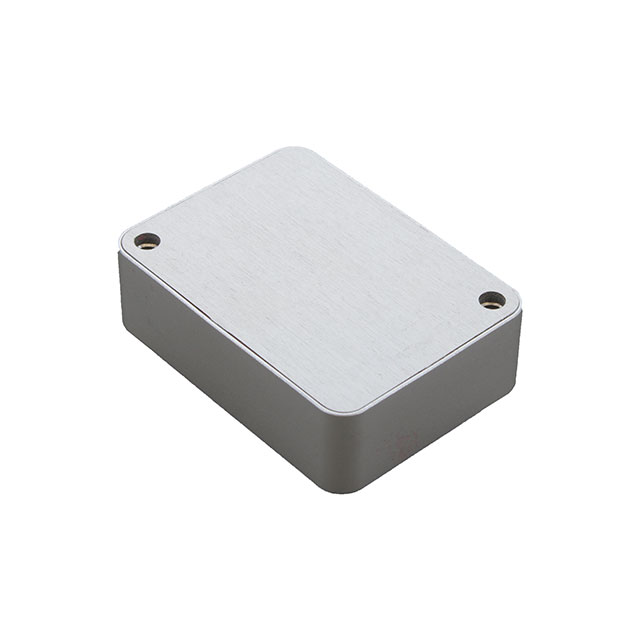

Analog Devices Inc./Maxim Integrated TMCM-1617-TMCL	CAN EtherCAT RS-485	Chassis Mount	18 A	28 V	8 V	Servo DC	Brushless (BLDC)	Module

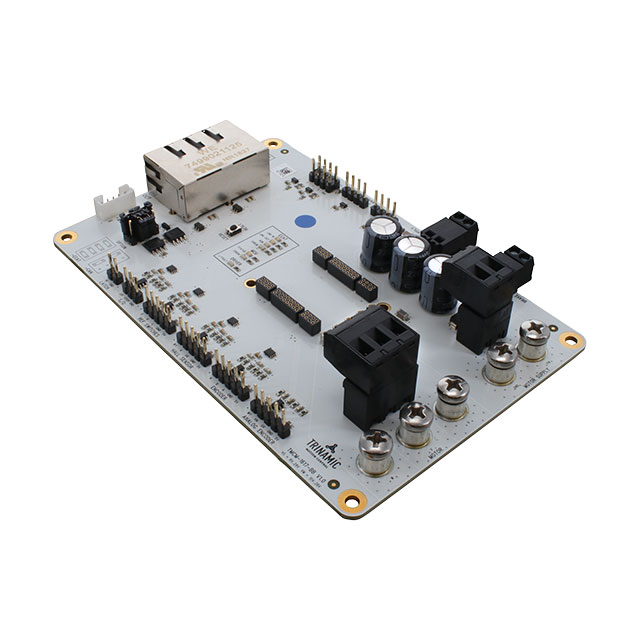

Analog Devices Inc./Maxim Integrated TMCM-1617-BB									TMCM-1617	TMCM-1617	Base Board

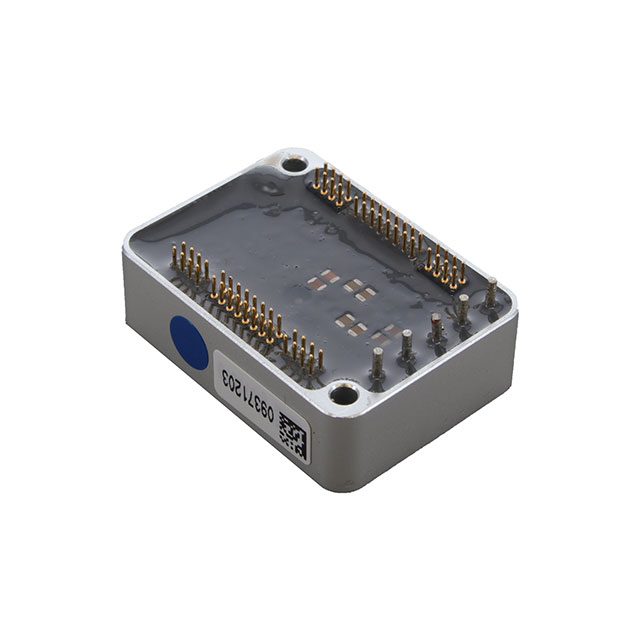

Analog Devices Inc./Maxim Integrated TMCM-1617-CANOPEN	CAN EtherCAT RS-485	Chassis Mount	18 A			Servo DC	Brushless (BLDC)	Module				24 V

Catalog

Low-weight miniaturized servo drive for 3-phase BLDC motors 8 to 28V, 18A, with CAN and RS485 Interface

Description

The TMCM-1617 is a low-weight miniaturized single axis servo driver for 3-phase BLDC motors with up to 18A RMS motor current and +24V supply. With CAN, RS485, and EtherCAT®it oﬀers various communication options. TMCM-1617 supports incremental encoders and digital hall sensors as position feedback. Housing is included for the standard modules, but customization options are possible.All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.More about the TMCL-IDEAPPLICATIONSRoboticsLaboratory AutomationManufacturingFactory AutomationServo DrivesLow Inductance Motors
