TMCM-1278 Series

Motor mountable stepper motor controller/driver module 12 to 48V, 9A, 256 µSteps, SixPoint ramp controller with CAN Interface, StallGuard, CoolStep, StealthChop

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

Motor mountable stepper motor controller/driver module 12 to 48V, 9A, 256 µSteps, SixPoint ramp controller with CAN Interface, StallGuard, CoolStep, StealthChop

Part	For Use With/Related Products	Accessory Type	Usage	Voltage - Supply [Min]	Voltage - Supply [Max]	Motor Type	Type	Interface	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Control / Drive Type	Current - Output

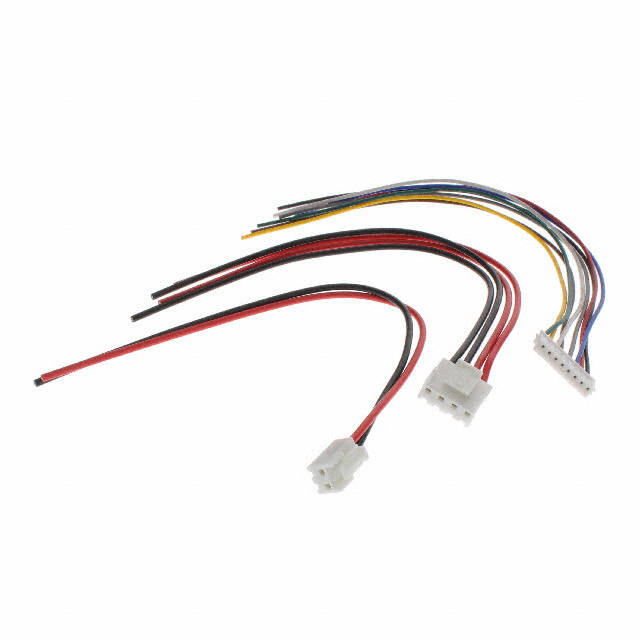

Analog Devices Inc./Maxim Integrated TMCM-1278-CABLE	TMCM-1278 Series	Cable Assembly	Motor

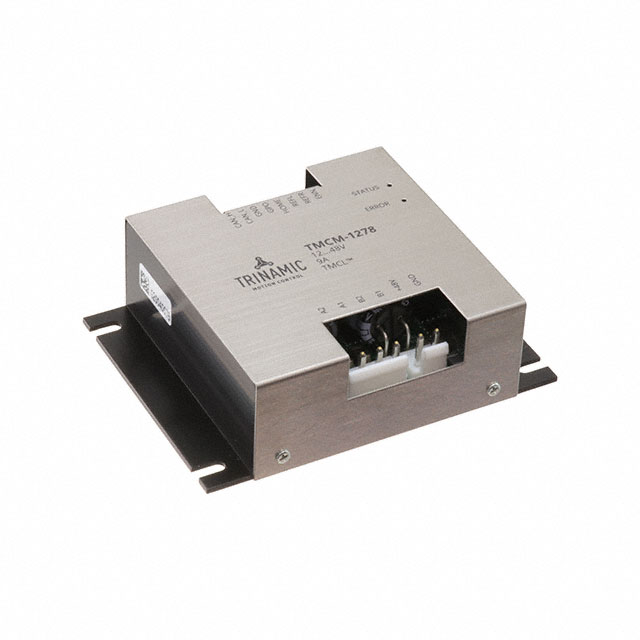

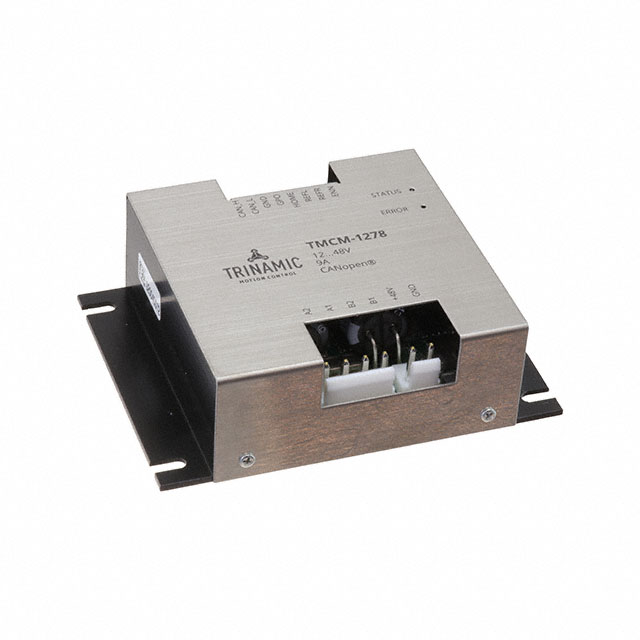

Analog Devices Inc./Maxim Integrated TMCM-1278-CANOPEN				12 VDC	48 V	Stepper	Module	CAN USB	40 °C	-30 ░C	Chassis Mount	Bipolar Stepper	9 A
Analog Devices Inc./Maxim Integrated TMCM-1278-TMCL				12 VDC	48 V	Stepper	Module	CAN USB	40 °C	-30 ░C	Chassis Mount	Bipolar Stepper	9 A

Catalog

Motor mountable stepper motor controller/driver module 12 to 48V, 9A, 256 µSteps, SixPoint ramp controller with CAN Interface, StallGuard, CoolStep, StealthChop

Description

TMCM-1278 is an easy-to-use, high-power, single axis smart stepper motor driver module. The module with special housing enclosure is primarily designed for NEMA23/24 size stepper motors.This product is controlled and configured via a CAN bus interface and comes with two firmware options – TMCL and CANopen. TMCM-1278 features StealthChop™ for absolute silent motor control, SpreadCycle™ for high speed stepper motor commutation, a fully integrated hardware motion controller with SixPoint™ motion ramps, as well as StallGuard2™ and CoolStep™.All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.More about the TMCL-IDEAPPLICATIONSLab-AutomationManufacturingRoboticsFactory AutomationCNC
