TMCM-1276 Series

Motor mountable stepper motor controller/driver module 10 to 30V, 3A, 256 µSteps, SixPoint ramp controller with CAN Interface, StallGuard, CoolStep, StealthChop

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

Motor mountable stepper motor controller/driver module 10 to 30V, 3A, 256 µSteps, SixPoint ramp controller with CAN Interface, StallGuard, CoolStep, StealthChop

Part	Control / Drive Type	Type	Mounting Type	Current - Output	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply	Motor Type	Interface	Accessory Type	For Use With/Related Products	Usage

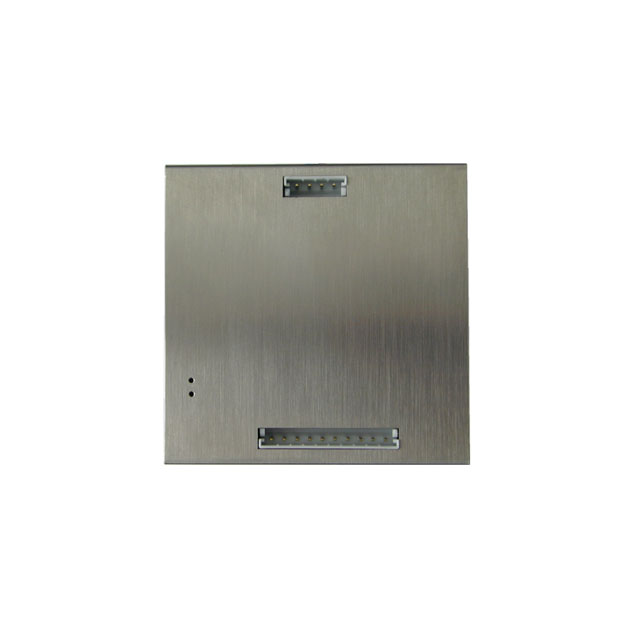

Analog Devices Inc./Maxim Integrated TMCM-1276-TMCL	Bipolar Stepper	Module	Chassis Mount	3 A	40 °C	-30 ░C	24 V	Stepper	CAN

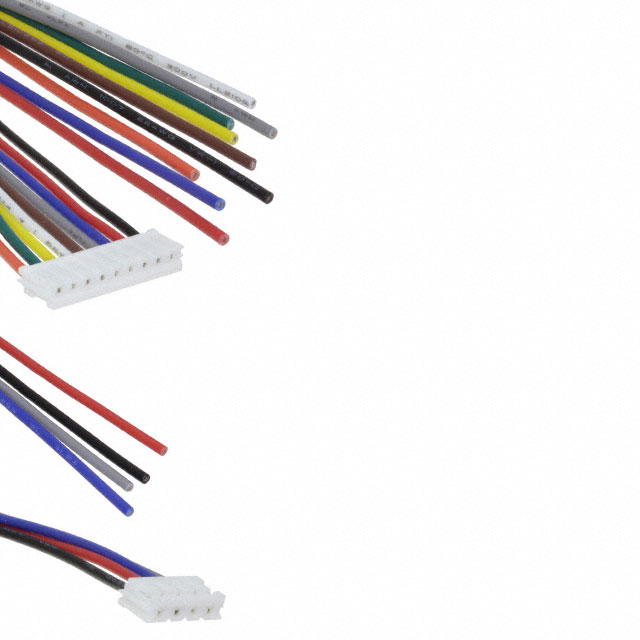

Analog Devices Inc./Maxim Integrated TMCM-1276-CABLE										Cable Assembly	TMCM-1276 Series	Motor

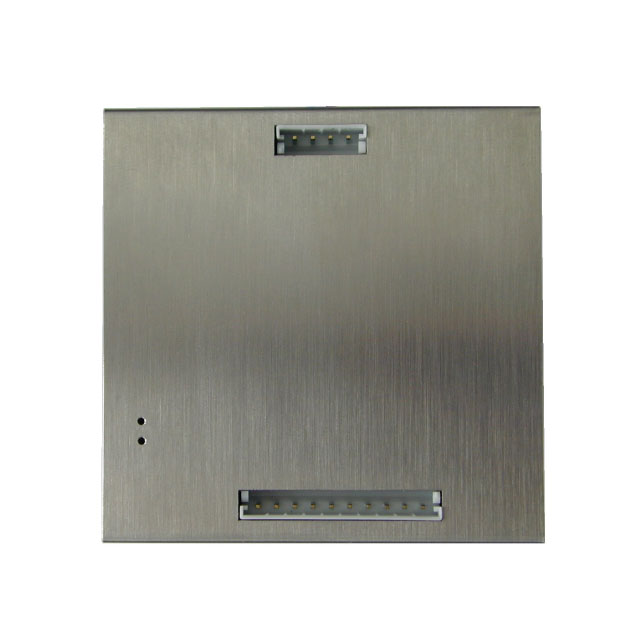

Analog Devices Inc./Maxim Integrated TMCM-1276-CANOPEN	Bipolar Stepper	Module	Chassis Mount	3 A	40 °C	-30 ░C	24 V	Stepper	CAN

Catalog

Motor mountable stepper motor controller/driver module 10 to 30V, 3A, 256 µSteps, SixPoint ramp controller with CAN Interface, StallGuard, CoolStep, StealthChop

Description

TMCM-1276 is an easy to use smart stepper motor driver module. The module is controlled via a CAN bus interface and comes with two firmware options – TMCL and CANopen. TMCM-1276 features StealthChop™for absolute silent motor control, SpreadCycle™for high speed stepper motor commutation, a fully integrated hardware motion controller with SixPoint™motion ramps, as well as StallGuard2™and CoolStep™.All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.More about the TMCL-IDEAPPLICATIONSLab-AutomationManufacturingRoboticsFactory AutomationCNC
