TMCM-1270 Series

Motor mountable stepper motor controller/driver module 6 to 23V, 1.2A, 256 µSteps, SixPoint ramp controller with CAN Interface, StallGuard, CoolStep, StealthChop

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

Motor mountable stepper motor controller/driver module 6 to 23V, 1.2A, 256 µSteps, SixPoint ramp controller with CAN Interface, StallGuard, CoolStep, StealthChop

Part	For Use With/Related Products	Usage	Accessory Type	Mounting Type	Interface	Operating Temperature [Max]	Operating Temperature [Min]	Type	Current - Output	Control / Drive Type	Motor Type	Voltage - Supply

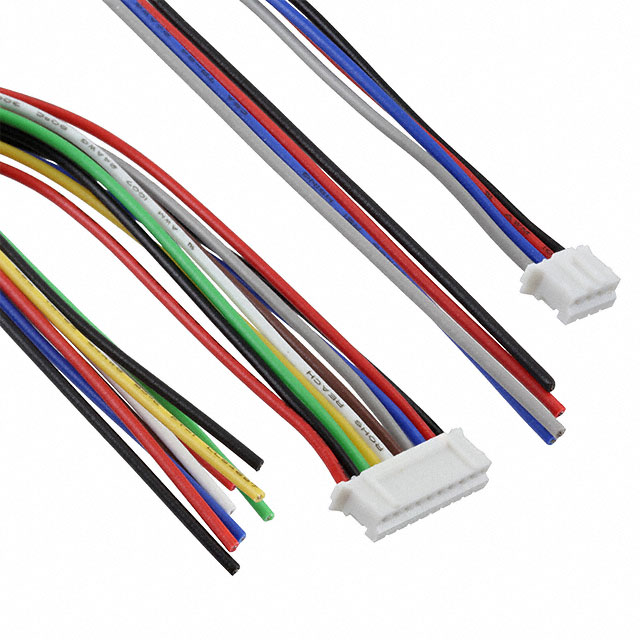

Analog Devices Inc./Maxim Integrated TMCM-1270-CABLE	TMCM-1270 Series	Motor	Cable Assembly

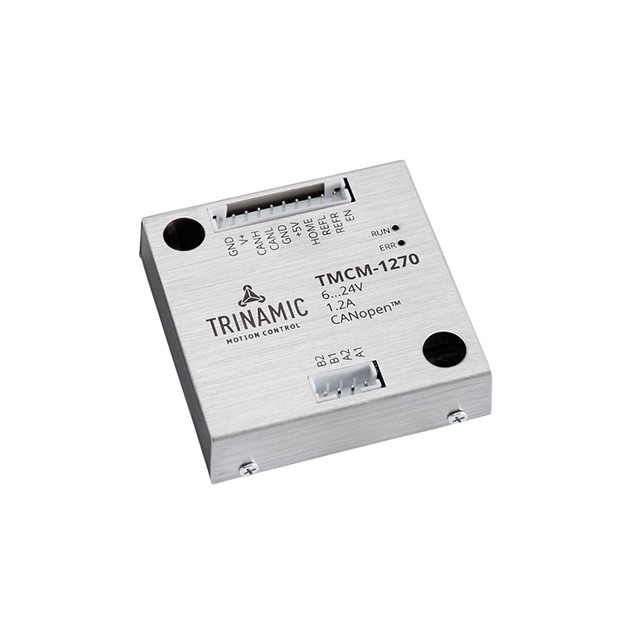

Analog Devices Inc./Maxim Integrated TMCM-1270-CANOPEN				Chassis Mount	CAN	40 °C	-30 ░C	Module	1.2 A	Bipolar Stepper	Stepper	24 V

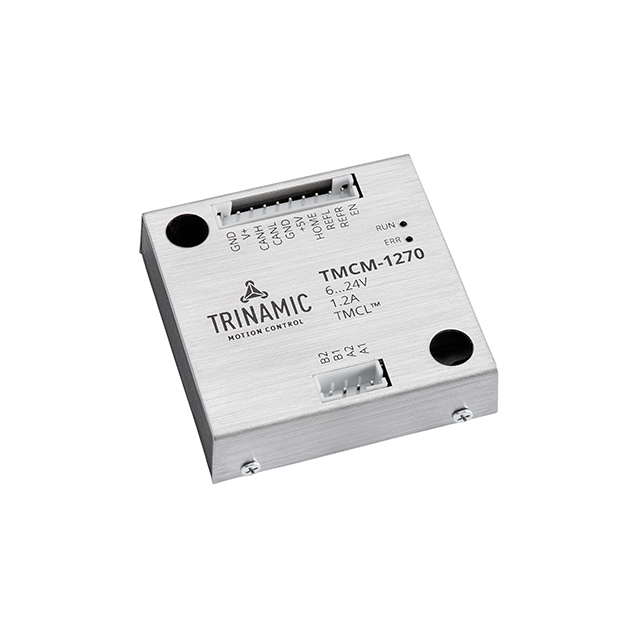

Analog Devices Inc./Maxim Integrated TMCM-1270-TMCL				Chassis Mount	CAN	40 °C	-30 ░C	Module	1.2 A	Bipolar Stepper	Stepper	24 V

Catalog

Motor mountable stepper motor controller/driver module 6 to 23V, 1.2A, 256 µSteps, SixPoint ramp controller with CAN Interface, StallGuard, CoolStep, StealthChop

Description

The TMCM-1270 is a single axis stepper motor controller/driver module for sensorless load dependent current control. The device is powered by ADI Trinamic stallGuard2™, coolStep™, spreadCycle™chopper and stealthChop™technology and has a sixPoint™ramp generator. The TMCM-1270 is capable of driving up to 1.4A of current from each output (with proper heatsinking). It is designed for an operating voltage of 6 to 26V. The device provides a CAN interface. An integrated protocol processor supplies a high level TMCL/ CANopen communication.APPLICATIONSLab-AutomationManufacturingRoboticsFactory AutomationCNCLaboratory Automation
