Product families from NovuSem
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
© Zenode. All rights reserved.
No series available
This manufacturer doesn't have any product series listed yet. Check back later or contact us if you're looking for specific parts.
Parts from NovuSem that are not part of a series
| Part Information | Pricing (lowest) | Voltage - Forward (Vf) (Max) | Mounting Type | Technology | Current - Average Rectified (Io) | Voltage - DC Reverse (Vr) (Max) | Current - Reverse Leakage | Package / Case | Reverse Recovery Time (trr) | Speed - Fast Recovery (Minimum) | Speed | Speed - Recovery Current | Operating Temperature - Junction (Max) | Operating Temperature - Junction (Min) | Package Name | Capacitance | Current - Continuous Drain (Id) (Tc) | Drive Voltage (Max Rds On, Min Rds On) | Drain to Source Voltage (Vdss) | Vgs(th) (Max) | Input Capacitance (Ciss) (Max) | Rds On (Max) | Vgs (Max) Negative | Vgs (Max) Positive | Operating Temperature (Min) | Operating Temperature (Max) | FET Type | Power Dissipation (Max) | Package Leads |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

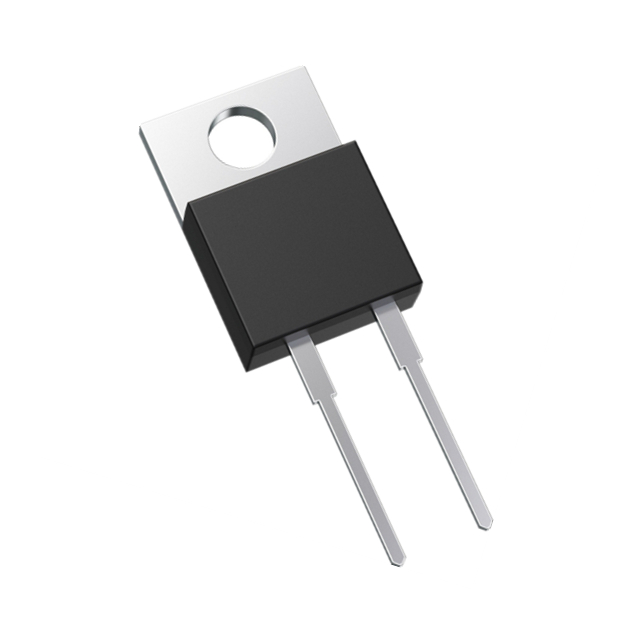

 NovuSem SIC SCHOTTKY 1200V 10A TO220- 2L | Sign in to see pricing | 1.6 V | Through Hole | SiC (Silicon Carbide) Schottky | 10 A | 1200 V | 35 µA | TO-220-2 | 0 ns | 500 mA | No Recovery Time | 500 mA, 500 mA | 175 °C | -55 °C | TO-220-2L | 670 pF | — | — | — | — | — | — | — | — | — | — | — | — | — |
 NovuSem DIODE SIL CARB 1200V 20A TO2472L | Sign in to see pricing | 1.6 V | Through Hole | SiC (Silicon Carbide) Schottky | 20 A | 1200 V | 50 µA | TO-247-2 | 0 ns | 500 mA | No Recovery Time | 500 mA, 500 mA | 175 °C | -55 °C | TO-247-2L | 1371 pF | — | — | — | — | — | — | — | — | — | — | — | — | — |
NovuSem DIODE SIL CARB 1200V 30A TO2472L | Sign in to see pricing | 1.6 V | Through Hole | SiC (Silicon Carbide) Schottky | 30 A | 1200 V | 85 µA | TO-247-2 | 0 ns | 500 mA | No Recovery Time | 500 mA, 500 mA | 175 °C | -55 °C | TO-247-2L | 2125 pF | — | — | — | — | — | — | — | — | — | — | — | — | — |
 NovuSem SIC MOS WAFER 12MOHM 1200V | Sign in to see pricing | — | — | SiCFET (Silicon Carbide) | — | — | — | — | — | — | — | — | — | — | — | — | 214 A | 20 V | — | — | — | — | — | — | — | — | — | — | — |
 NovuSem SIC MOS WAFER 12MOHM 1200V NIPDA | Sign in to see pricing | — | Surface Mount | SiCFET (Silicon Carbide) | — | — | — | Die | — | — | — | — | — | — | Wafer | — | 214 A | 20 V | 1200 V | 3.5 V | 8330 pF | 12 mOhm | -8 V | 22 V | — | — | — | — | — |

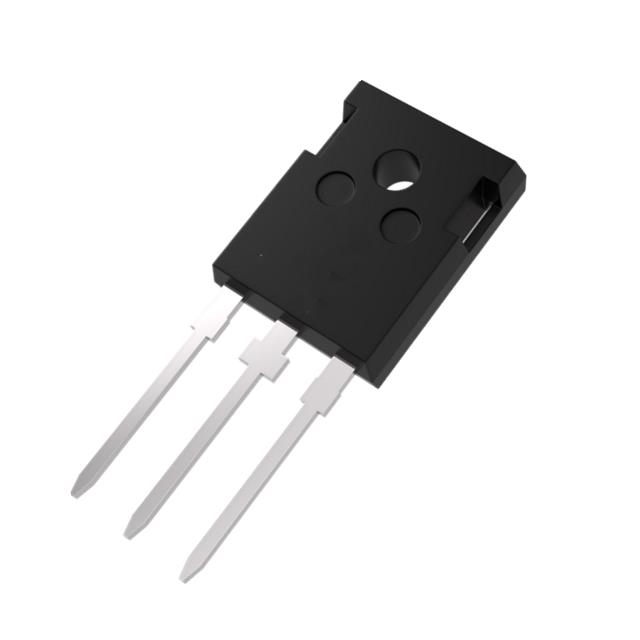

 NovuSem SIC MOSFET N 1200V 40MOHM 76A 3 | Sign in to see pricing | — | Through Hole | SiCFET (Silicon Carbide) | — | — | — | TO-247-3 | — | — | — | — | — | — | TO-247-3L | — | 76 A | 20 V | 1200 V | 2.8 V | 2534 pF | 40 mOhm | -5 V | 20 V | -55 °C | 175 °C | N-Channel | 375 W | — |

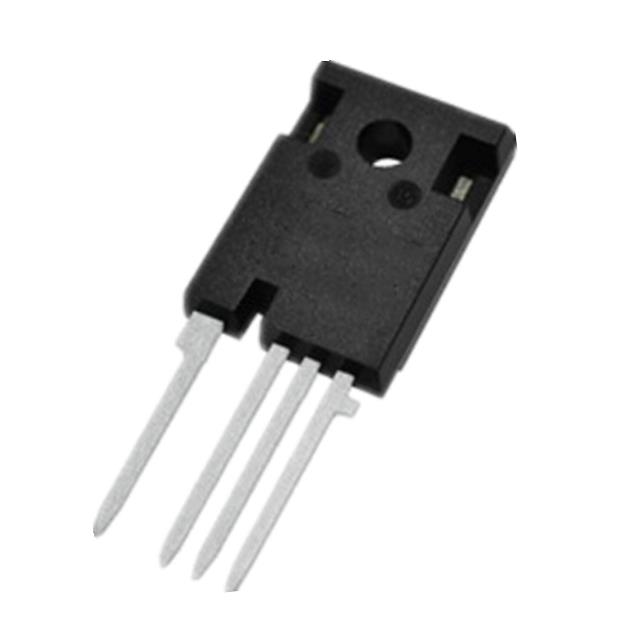

 NovuSem SIC MOSFET N 1200V 40MOHM 75A 4 | Sign in to see pricing | — | Through Hole | SiCFET (Silicon Carbide) | — | — | — | TO-247-4 | — | — | — | — | — | — | TO-247-4L | — | 75 A | 20 V | 1200 V | 2.8 V | 2534 pF | 40 mOhm | -5 V | 20 V | -55 °C | 175 °C | N-Channel | 366 W | — |
 NovuSem SIC MOSFET N 1200V 75MOHM 47A 4 | Sign in to see pricing | — | Through Hole | SiCFET (Silicon Carbide) | — | — | — | TO-247-4 | — | — | — | — | — | — | TO-247-4L | — | 47 A | 20 V | 1200 V | 2.8 V | 1450 pF | 75 mOhm | -5 V | 20 V | -55 °C | 175 °C | N-Channel | 288 W | — |

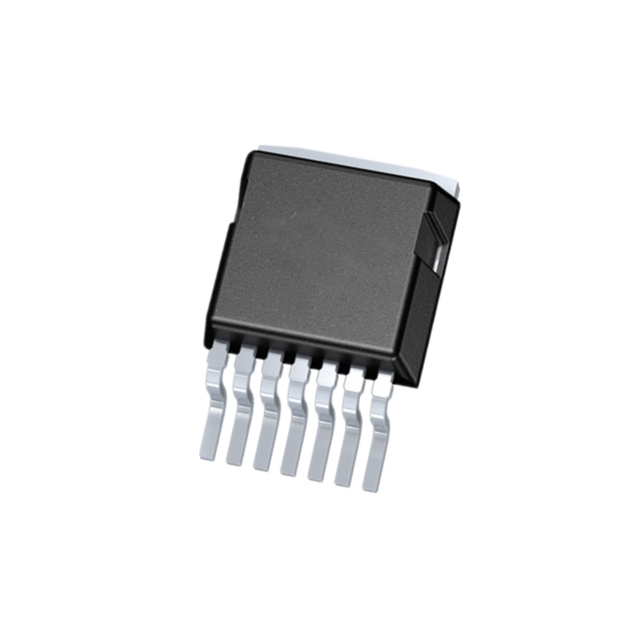

 NovuSem SIC MOSFET N 1200V 75MOHM 46A 7 | Sign in to see pricing | — | Surface Mount | SiCFET (Silicon Carbide) | — | — | — | — | — | — | — | — | — | — | DPak, TO-263-7L | — | 46 A | 18 V | 1200 V | 2.3 V | 1402 pF | 75 mOhm | -5 V | 18 V | -55 °C | 150 °C | N-Channel | 240 W | 7 Leads |
