GE Aerospace

Series

Product families from GE Aerospace

Series	Category	Parts	Status	Description

Standalone parts

Parts that are not part of a series

Series	Category	Parts	Status	Description

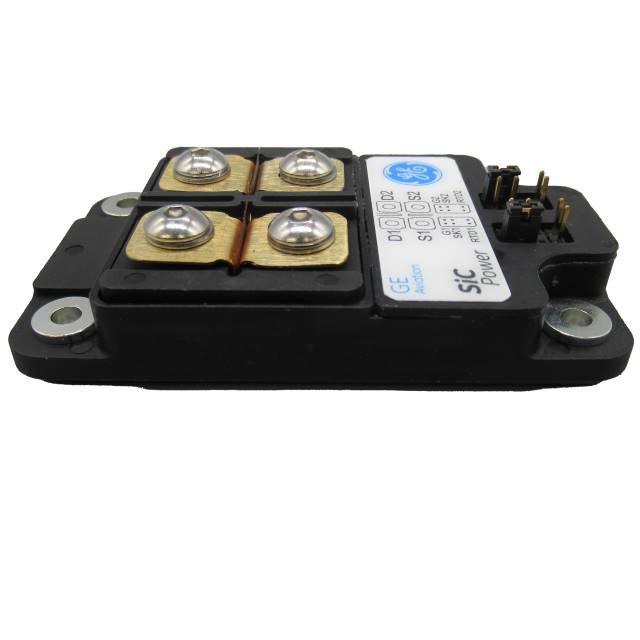

GE12047	Discrete Semiconductor Products	2	Active
GE12050	Discrete Semiconductor Products	1	Active

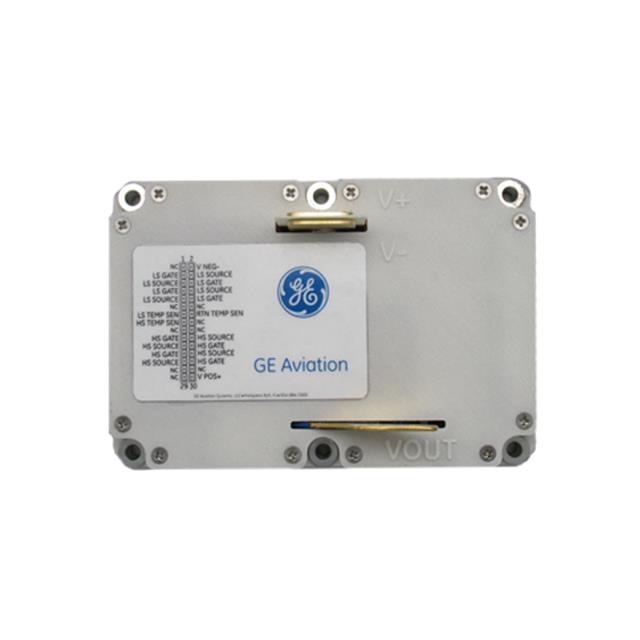

GE12160	Discrete Semiconductor Products	1	Active
GE17042	Transistors	1	Active

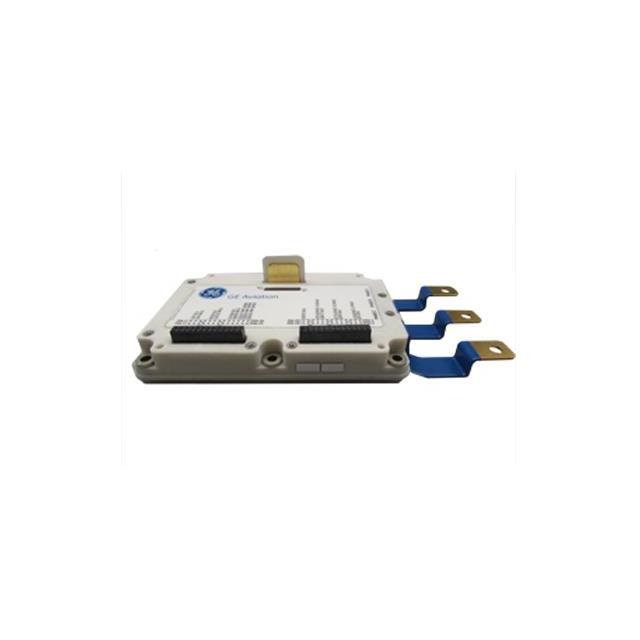

GE17045	FETs, MOSFETs	1	Active
GE17080	Transistors	1	Active

Standalone parts(4)

Parts from GE Aerospace that are not part of a series

Part Information	Pricing (lowest)	Voltage - Input (Max)	Number of Outputs	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Power (Watts)	Operating Temperature (Min)	Operating Temperature (Max)	Applications	Type	Voltage - Output 1	Current - Output (Max)	Mounting Type	Voltage - Input (Min)	Operating Temperature	Vgs(th) (Max)	Package Name	Rds On (Max)	Current - Continuous Drain (Id)	Qualification	Input Capacitance (Ciss) (Max)	Drain to Source Voltage (Vdss)	Package / Case	Channel Count	Configuration - Features	Configuration	Power - Max	Technology	Current - Continuous Drain (Id) (Tc)	Gate Charge (Max)
1064100G1 GE Aerospace 20KW DC-DC CONVERTER 610VDC/28VD	Sign in to see pricing Log in Sign up free	725 V	1	12 in	3.5 in	16 in	19992 W	-45 °C	70 °C	ITE (Commercial)	Front End	28 V	714 A	Rack Mount	475 V	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—

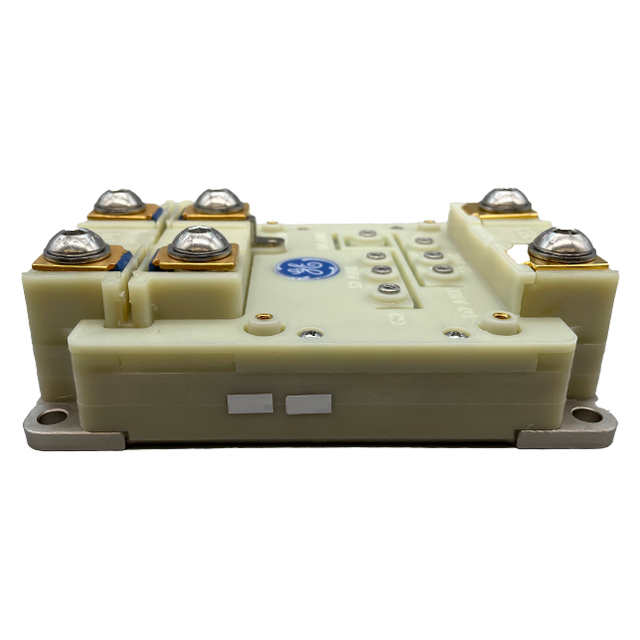

GE12090CDA3 GE Aerospace 1200V 875A SIC HALF-BRIDGE MODUL	Sign in to see pricing Log in Sign up free	—	—	—	—	—	—	-55 °C	175 °C	—	—	—	—	Chassis Mount	—	175 °C	4.5 V	Module	2.19 mOhm	875 A	AEC-Q101	58.6 nF, 58.6 nF	1200 V	Module	2	Half Bridge	N-Channel	2350 W	Silicon Carbide (SiC)	—	—
GE17042CCA3 GE Aerospace MOSFET 2N-CH 1700V 425A MODULE	Sign in to see pricing Log in Sign up free	—	—	—	—	—	—	-55 °C	175 °C	—	—	—	—	Chassis Mount	—	—	4.5 V	Module	4.45 mOhm	—	AEC-Q101	29100 pF	1700 V	Module	2	Half Bridge	N-Channel	1250 W	Silicon Carbide (SiC)	425 A	1207 nC
GE17140CEA3 GE Aerospace SIC 2N-CH 1700V 1275A MODULE	Sign in to see pricing Log in Sign up free	—	—	—	—	—	—	-55 °C	175 °C	—	—	—	—	Chassis Mount	—	—	4.5 V	Module	—	1.275 kA, 1.275 kA	AEC-Q101	82 nF	1700 V	Module	2	Half Bridge	N-Channel	3.75 kW	Silicon Carbide (SiC)	—	3621 nC, 3621 nC
