GE12050 Series
Manufacturer: GE Aerospace
Beta
⌘K

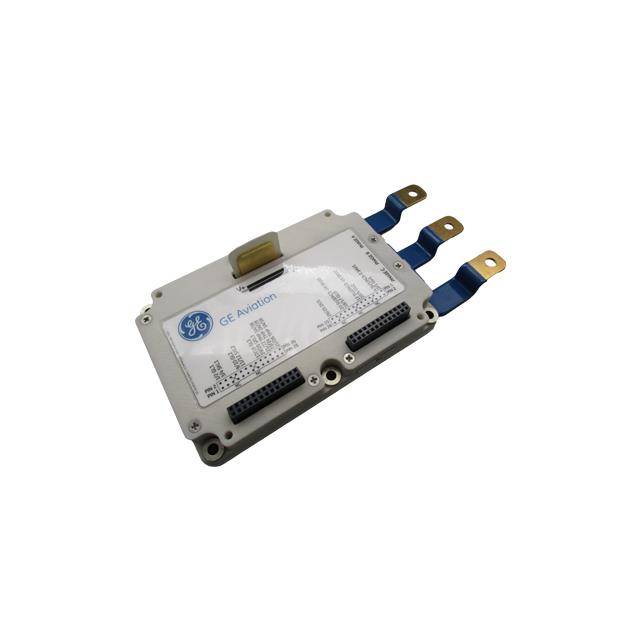

SIC 6N-CH 1200V 475A MODULE
| Part | Current - Continuous Drain (Id) @ 25°C | Operating Temperature [Min] | Operating Temperature [Max] | Power - Max [Max] | Package / Case | Vgs(th) (Max) @ Id | Drain to Source Voltage (Vdss) | Drain to Source Voltage (Vdss) | Technology | Mounting Type | Qualification | Rds On (Max) @ Id, Vgs | Gate Charge (Qg) (Max) @ Vgs [Max] | Input Capacitance (Ciss) (Max) @ Vds | Supplier Device Package | Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GE Aerospace | 475 A 475 A | -55 °C -55 °C | 150 °C 175 °C | 1250 W | Module | 4.5 V | 1.2 kV | 1200 V | Silicon Carbide (SiC) | Chassis Mount | AEC-Q101 | 4.4 mOhm | 1248 nC | 29300 pF | Module | 6 N-Channel (3-Phase Bridge) |
