GE12047 Series
Manufacturer: GE Aerospace
Beta
⌘K

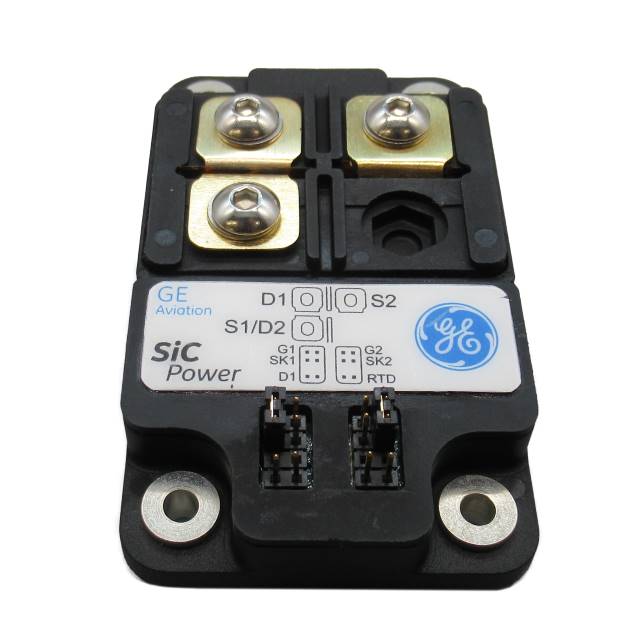

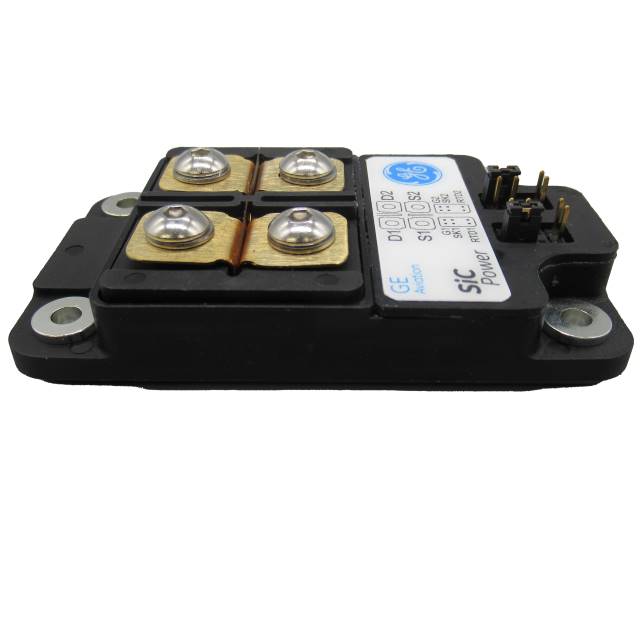

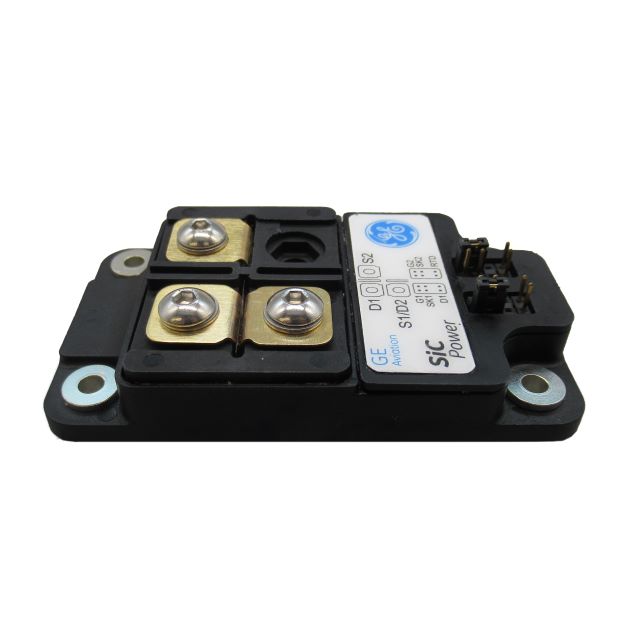

SIC 2N-CH 1200V 475A MODULE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Configuration | Current - Continuous Drain (Id) @ 25°C | Technology | Gate Charge (Qg) (Max) @ Vgs [Max] | Rds On (Max) @ Id, Vgs | Supplier Device Package | Mounting Type | Package / Case | Input Capacitance (Ciss) (Max) @ Vds | Power - Max [Max] | Vgs(th) (Max) @ Id | Drain to Source Voltage (Vdss) | Drain to Source Voltage (Vdss) | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GE Aerospace | -55 °C -55 °C | 150 °C 175 °C | 2 N-Channel | 475 A | Silicon Carbide (SiC) | 1248 nC | 4.4 mOhm | Module | Chassis Mount | Module | 29300 pF | 1250 W | 4.5 V | 1.2 kV | 1200 V | AEC-Q101 |
 GE Aerospace | -55 °C -55 °C | 150 °C 175 °C | 2 N-Channel (Dual) | 475 A | Silicon Carbide (SiC) | 1248 nC | 4.4 mOhm | Module | Chassis Mount | Module | 29300 pF | 1250 W | 4.5 V | 1.2 kV | 1200 V | AEC-Q101 |
