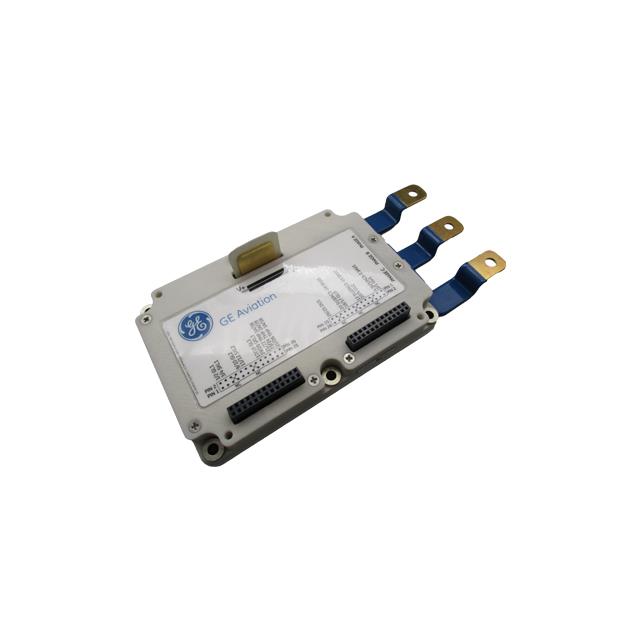

GE17045 Series
Manufacturer: GE Aerospace
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
SIC 6N-CH 1700V 425A
| Part | Qualification | Vgs(th) (Max) | Power - Max | Rds On (Max) | Mounting Type | Input Capacitance (Ciss) (Max) | Technology | Package Name | Gate Charge (Max) | Channel Count | Configuration | Configuration - Features | Current - Continuous Drain (Id) (Tc) | Operating Temperature (Min) | Operating Temperature (Max) | Drain to Source Voltage (Vdss) | Package / Case | Power - Max (Tc) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GE Aerospace | AEC-Q101 | 4.5 V | 1250 W | 4.45 mOhm | Chassis Mount | 29100 pF | Silicon Carbide (SiC) | Module | 1207 nC | 6 | N-Channel | 3-Phase Bridge | 425 A | -55 °C -55 °C | 150 °C 175 °C | 1700 V | Module | 1250 W |
