What is the Bridgelux Vero Series?

The Vero Series is Bridgelux's flagship LED array product line featuring integrated holders and wire harness ports that eliminate soldering, simplifying luminaire design and manufacturing.

What are DriveLux light engines?

DriveLux light engines integrate COB LED technology with advanced drivers in a compact, replaceable design, offering exceptional CRI90 efficacy and versatile mounting options for various lighting applications.

Does Bridgelux offer color-tunable LED products?

Yes, Bridgelux offers the RGBW Series with 4-channel Red, Green, Blue, White LEDs for dynamic white tuning and vibrant color lighting in architectural and specialty applications.

What applications use Bridgelux LEDs?

Bridgelux LEDs are used in commercial lighting, industrial lighting, horticulture, outdoor lighting, architectural lighting, and smart lighting applications requiring high efficiency and color quality.

BRIDGELUX | Manufacturer Directory

Bridgelux designs high-performance, energy-efficient LED lighting solutions including the Vero Series arrays, DriveLux light engines, and RGBW products for commercial, industrial, and horticultural applications.

Bridgelux has been designing solid-state lighting solutions since 2002, delivering high-performance, energy-efficient, and cost-effective LED products that are easy to integrate into luminaire designs. Their patented light source technology produces clean, white LEDs used as the core of commercial and industrial lighting systems worldwide.

Bridgelux offers several innovative product families:

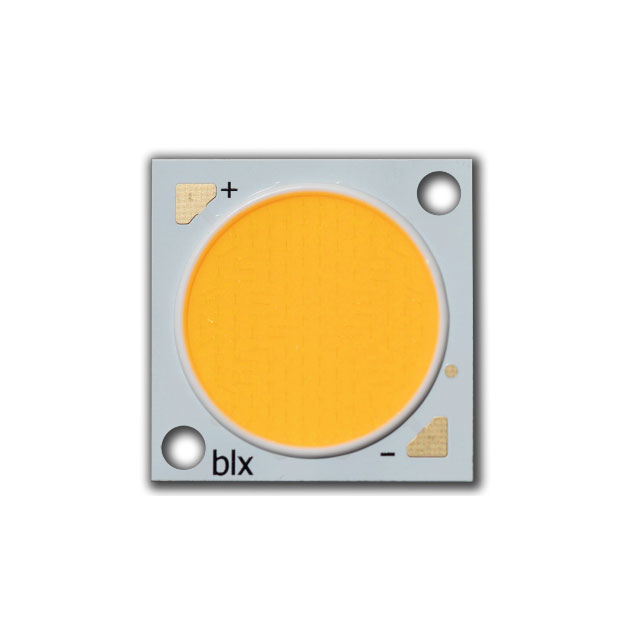

Vero Series - Flagship LED arrays with integrated holder and wire harness port, eliminating soldering for simplified manufacturing
DriveLux - Revolutionary light engines integrating COB technology with advanced drivers, featuring compact replaceable design and CRI90 efficacy
RGBW Series - 4-channel Red, Green, Blue, White light engines for dynamic white tuning and vibrant color lighting
High-Power Outdoor - Ceramic 3535, EMC5050, and CSP2424 families for outdoor applications

Bridgelux's patented phosphor-converted (PC) red LED technology ensures high-purity red color and white mixing while achieving lumen efficacy above 90 lm/W with CRI greater than 90.

46W DUAL CHANNEL DRIVER, 0-10V ,

Part Information	Pricing (lowest)	Features	Topology	Operating Temperature (Max)	Operating Temperature (Min)	Termination Style	Number of Outputs	Ratings	Standard Number	Current - Output (Max)	Power (Watts)	Type	Voltage - Input (Min)	Approval Agency	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Voltage - Output (Max)	Voltage - Output (Min)	Voltage - Input (Max)	Dimming	Efficiency	Mounting Type
BXDR-46LT-C214A-01-A-12 BRIDGELUX 46W DUAL CHANNEL DRIVER, 0-10V ,	Sign in to see pricing Log in Sign up free	OTP, OVP, SCP	AC DC Converter	50 °C	-20 °C	Terminal Block	2	IP20	UL 8750	1.4 A	46 W	Constant Current	108 V	cUL, cULus, FCC, UL	11.02 in	0.83 in	1.18 in	50 V	20 V	365 VAC	Analog	86 %	—
BXDR-46LT-U214A-01-A-12 BRIDGELUX 46W DUAL CHANNEL DRIVER, 0-10V ,	Sign in to see pricing Log in Sign up free	OTP, OVP, SCP	AC DC Converter	50 °C	-20 °C	Terminal Block	2	IP20	UL 8750	1.4 A	46 W	Constant Current	108 V	cUL, cULus, FCC, UL	11.02 in	0.83 in	1.18 in	50 V	20 V	304 VAC	Analog	86 %	—
BXDR-MP-23LT-C107A-01-A BRIDGELUX 23W SINGLE CHANNEL DRIVER, 0-10V	Sign in to see pricing Log in Sign up free	OTP, OVP, SCP	AC DC Converter	50 °C	-20 °C	Terminal Block	1	IP20	UL 8750	700 mA	23 W	Constant Current	108 V	CE, cUL, cULus, FCC, UL	11.02 in	0.83 in	1.18 in	50 V	20 V	382 VAC	Analog	88 %	Chassis Mount
BXDR-MP-23LT-C107A-01-A-12 BRIDGELUX 23W SINGLE CHANNEL DRIVER, 0-10V	Sign in to see pricing Log in Sign up free	OTP, OVP, SCP	AC DC Converter	50 °C	-20 °C	Terminal Block	1	IP20	UL 8750	700 mA	23 W	Constant Current	108 V	CE, cUL, cULus, FCC, UL	11.02 in	0.83 in	1.18 in	50 V	20 V	382 VAC	Analog	88 %	Chassis Mount
BXDR-MP-23LT-U107A-01-A BRIDGELUX 23W SINGLE CHANNEL DRIVER, 0-10V	Sign in to see pricing Log in Sign up free	OTP, OVP, SCP	AC DC Converter	50 °C	-20 °C	Terminal Block	1	IP20	UL 8750	700 mA	23 W	Constant Current	108 V	CE, cUL, cULus, FCC, UL	11.02 in	0.83 in	1.18 in	50 V	20 V	382 VAC	Analog	88 %	Chassis Mount
BXDR-MP-23LT-U107A-01-A-12 BRIDGELUX 23W SINGLE CHANNEL DRIVER, 0-10V	Sign in to see pricing Log in Sign up free	OTP, OVP, SCP	AC DC Converter	50 °C	-20 °C	Terminal Block	1	IP20	UL 8750	700 mA	23 W	Constant Current	108 V	CE, cUL, cULus, FCC, UL	11.02 in	0.83 in	1.18 in	50 V	20 V	382 VAC	Analog	88 %	Chassis Mount
BXDR-MP-40LW-C110A-01-A BRIDGELUX 40W SINGLE CHANNEL DRIVER, 0-10V	Sign in to see pricing Log in Sign up free	OTP, OVP, SCP	AC DC Converter	50 °C	-20 °C	Wire Leads	1	IP20	UL 8750	1 A	40 W	Constant Current	108 V	cUL, cULus, FCC, UL	9.5 in	1.1 in	1.3 in	50 V	20 V	382 VAC	Analog	87 %	Chassis Mount
BXDR-MP-40LW-C110A-01-A-12 BRIDGELUX 40W SINGLE CHANNEL DRIVER, 0-10V	Sign in to see pricing Log in Sign up free	OTP, OVP, SCP	AC DC Converter	50 °C	-20 °C	Wire Leads	1	IP20	UL 8750	1 A	40 W	Constant Current	108 V	cUL, cULus, FCC, UL	9.5 in	1.1 in	1.3 in	50 V	20 V	382 VAC	Analog	87 %	Chassis Mount
BXDR-MP-40LW-U110A-01-A BRIDGELUX 40W SINGLE CHANNEL DRIVER, 0-10V	Sign in to see pricing Log in Sign up free	OTP, OVP, SCP	AC DC Converter	50 °C	-20 °C	Wire Leads	1	IP20	UL 8750	1 A	40 W	Constant Current	108 V	cUL, cULus, FCC, UL	9.5 in	1.1 in	1.3 in	50 V	20 V	382 VAC	Analog	87 %	Chassis Mount
BXDR-MP-40LW-U110A-01-A-12 BRIDGELUX 40W SINGLE CHANNEL DRIVER, 0-10V	Sign in to see pricing Log in Sign up free	OTP, OVP, SCP	AC DC Converter	50 °C	-20 °C	Wire Leads	1	IP20	UL 8750	1 A	40 W	Constant Current	108 V	cUL, cULus, FCC, UL	9.5 in	1.1 in	1.3 in	50 V	20 V	382 VAC	Analog	87 %	Chassis Mount

Series	Category	Parts	Status
BXAC-WT	Power Supplies - External/Internal (Off-Board)	1	Active
BXCS	Accessories	3	Active
BXCS-12	Power Supplies - External/Internal (Off-Board)	4	Active
BXDR-30	LED Drivers	1	Active
BXDR-60	LED Drivers	2	Active
BXEB-L0280	Optoelectronics	11	Active
BXEB-L0340	LED COBs, Engines, Modules, Strips	4	Active
BXEB-L0560	LED COBs, Engines, Modules, Strips	13	Active
BXEB-L0570	LED Lighting - COBs, Engines, Modules, Strips	15	Active
BXEB-L0590	Optoelectronics	1	Active
