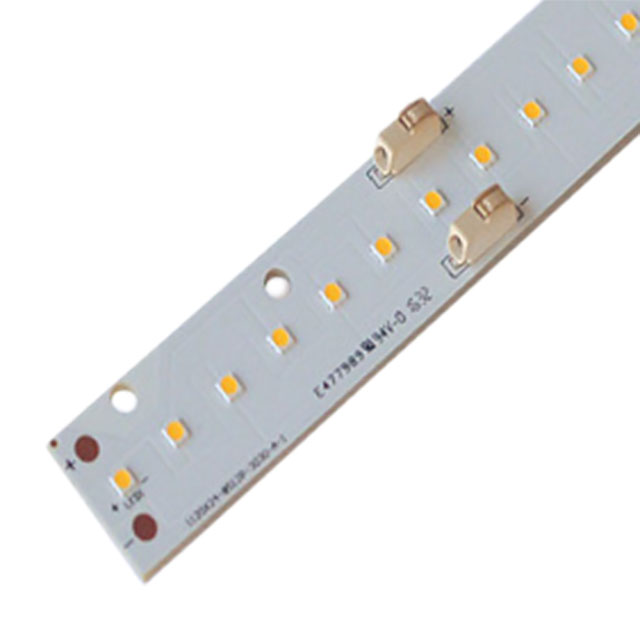

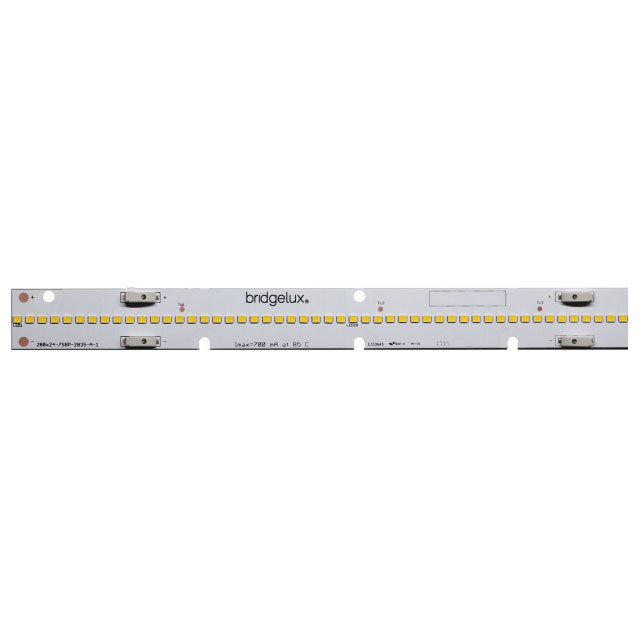

BXEB-L0280 Series

Manufacturer: BRIDGELUX

Catalog

LED MOD EB SER WH LNR STRP 5700K

Part	CRI (Color Rendering Index)	Type	Configuration	CCT (K)	CCT Description	Current - Max	Color	Voltage - Forward (Vf) (Typ)	Height	Current - Test	Lumens/Watt	Size / Dimension Length	Size / Dimension Width	Luminous Flux (Typical)	Temperature - Test	Lens Type	Viewing Angle	Features	CRI (Color Rendering Index) (Typ)
BRIDGELUX BXEB-L0280Z-57E1000-C-A3	80	LED Module	Linear Light Strip	5700 K	3-Step MacAdam Ellipse	700 mA	Cool White	22.1 V	6.1 mm	350 mA	159 lm/W	280 mm	24 mm	1230 lm	50 °C	Flat
BRIDGELUX BXEB-L0280Z-57E1000-C-B3	80	LED Module	Linear Light Strip	5700 K	3-Step MacAdam Ellipse	700 mA	Cool White	19.5 V	6.1 mm	350 mA	180 lm/W	280 mm	24 mm	1230 lm	25 °C	Flat	120 °	With Connector
BRIDGELUX BXEB-L0280Z-35E1000-C-A3	80	LED Module	Linear Light Strip	3500 K	3-Step MacAdam Ellipse	700 mA	Warm White	22.1 V	6.1 mm	350 mA	156 lm/W	280 mm	24 mm	1205 lm	50 °C	Flat
BRIDGELUX BXEB-L0280Z-50E1000-C-B3	80	LED Module	Linear Light Strip	5000 K	3-Step MacAdam Ellipse	700 mA	Cool White	19.5 V	6.1 mm	350 mA	180 lm/W	280 mm	24 mm	1230 lm	25 °C	Flat	120 °
BRIDGELUX BXEB-L0280Z-40E1000-C-A3	80	LED Module	Linear Light Strip	4000 K	3-Step MacAdam Ellipse	700 mA	Neutral White	22.1 V	6.1 mm	350 mA	159 lm/W	280 mm	24 mm	1230 lm	50 °C	Flat
BRIDGELUX BXEB-L0280Z-50S1000-C-C3		LED Module	Linear Light Strip	5000 K	3-Step MacAdam Ellipse	960 mA	Cool White	20.3 V	6.1 mm	480 mA	138 lm/W	280 mm	24 mm	1345 lm	25 °C	Flat	120 °		98
BRIDGELUX BXEB-L0280Z-35E1000-C-B3	80	LED Module	Linear Light Strip	3500 K	3-Step MacAdam Ellipse	700 mA	Warm White	19.5 V	6.1 mm	350 mA	175 lm/W	280 mm	24 mm	1195 lm	25 °C	Flat	120 °
BRIDGELUX BXEB-L0280Z-35S1000-C-C3		LED Module	Linear Light Strip	3500 K	3-Step MacAdam Ellipse	960 mA	Warm White	20.3 V	6.1 mm	480 mA	138 lm/W	280 mm	24 mm	1345 lm	25 °C	Flat	120 °		98
BRIDGELUX BXEB-L0280Z-30E1000-C-B3	80	LED Module	Linear Light Strip	3000 K	3-Step MacAdam Ellipse	700 mA	Warm White	19.5 V	6.1 mm	350 mA	175 lm/W	280 mm	24 mm	1195 lm	25 °C	Flat	120 °	With Connector
BRIDGELUX BXEB-L0280Z-50E1000-C-A3	80	LED Module	Linear Light Strip	5000 K	3-Step MacAdam Ellipse	700 mA	Cool White	22.1 V	6.1 mm	350 mA	159 lm/W	280 mm	24 mm	1230 lm	50 °C	Flat
