BXEB-L0560 Series

Manufacturer: BRIDGELUX

Catalog

EB GEN 3 HIGH OUTPUT LED MODULE, 560 MM, 3000K, 80 CRI

Part	Size / Dimension Width	Size / Dimension Length	Voltage - Forward (Vf) (Typ)	Height	Color	CCT (K)	CCT Description	Current - Test	CRI (Color Rendering Index)	Luminous Flux	Type	Lumens/Watt	Viewing Angle	Lens Type	Temperature - Test	Current - Max	Configuration	Luminous Flux (Typical)	CRI (Color Rendering Index) (Typ)	Features

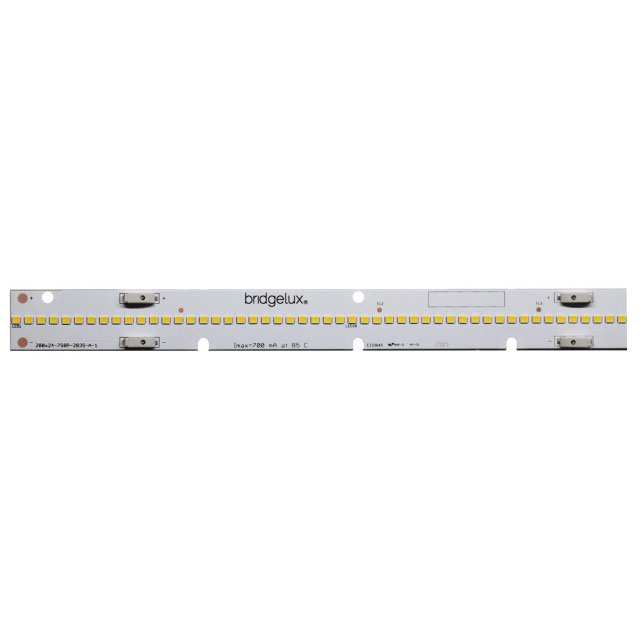

BRIDGELUX BXEB-L0560Z-30E4000-C-D3	24 mm	560 mm	19.2 V	6.1 mm	Warm White	3000 K	3-Step MacAdam Ellipse	1.4 A	80	4960 lm	LED Module	185 lm/W	120 °	Flat	25 °C	2.8 A	Linear Light Strip
BRIDGELUX BXEB-L0560Z-30S2000-C-C3	24 mm	560 mm	20.3 V	6.1 mm	Warm White	3000 K	3-Step MacAdam Ellipse	960 mA			LED Module	127 lm/W	120 °	Flat	25 °C	1.92 A	Linear Light Strip	2470 lm	98
BRIDGELUX BXEB-L0560Z-30E2000-C-A3	24 mm	560 mm	22.1 V	6.1 mm	Warm White	3000 K	3-Step MacAdam Ellipse	700 mA	80		LED Module	156 lm/W		Flat	50 °C	1.4 A	Linear Light Strip	2410 lm
BRIDGELUX BXEB-L0560Z-40E2000-C-A3	24 mm	560 mm	22.1 V	6.1 mm	Neutral White	4000 K	3-Step MacAdam Ellipse	700 mA	80		LED Module	159 lm/W		Flat	50 °C	1.4 A	Linear Light Strip	2460 lm
BRIDGELUX BXEB-L0560Z-40E2000-C-B3	24 mm	560 mm	19.5 V	6.1 mm	Neutral White	4000 K	3-Step MacAdam Ellipse	700 mA	80		LED Module	175 lm/W	120 °	Flat	25 °C	1.4 A	Linear Light Strip	2460 lm		With Connector
BRIDGELUX BXEB-L0560Z-57E2000-C-A3	24 mm	560 mm	22.1 V	6.1 mm	Cool White	5700 K	3-Step MacAdam Ellipse	700 mA	80		LED Module	159 lm/W		Flat	50 °C	1.4 A	Linear Light Strip	2460 lm

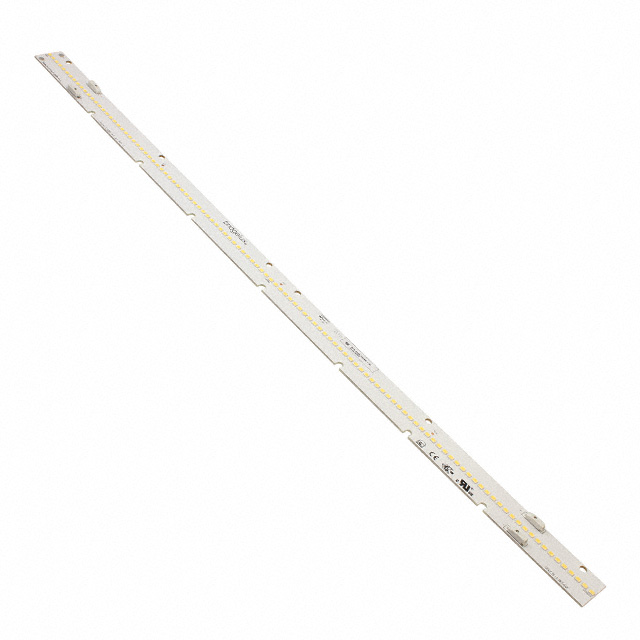

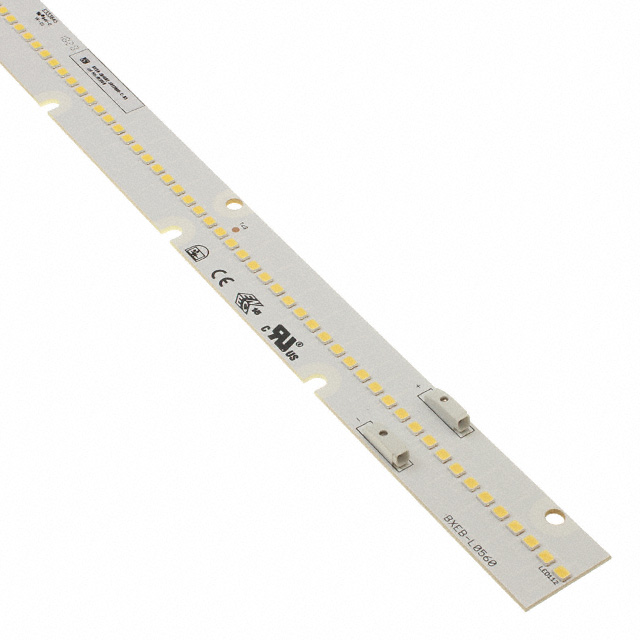

BRIDGELUX BXEB-L0560Z-50E2000-C-B3	24 mm	560 mm	19.5 V	6.1 mm	Cool White	5000 K	3-Step MacAdam Ellipse	700 mA	80		LED Module	180 lm/W	120 °	Flat	25 °C	1.4 A	Linear Light Strip	2460 lm
BRIDGELUX BXEB-L0560Z-40S2000-C-C3	24 mm	560 mm	20.3 V	6.1 mm	Neutral White	4000 K	3-Step MacAdam Ellipse	960 mA			LED Module	138 lm/W	120 °	Flat	25 °C	1.92 A	Linear Light Strip	2690 lm	98
BRIDGELUX BXEB-L0560Z-35E2000-C-A3	24 mm	560 mm	22.1 V	6.1 mm	Warm White	3500 K	3-Step MacAdam Ellipse	700 mA	80		LED Module	156 lm/W		Flat	50 °C	1.4 A	Linear Light Strip	2410 lm
BRIDGELUX BXEB-L0560Z-50S2000-C-C3	24 mm	560 mm	20.3 V	6.1 mm	Cool White	5000 K	3-Step MacAdam Ellipse	960 mA			LED Module	138 lm/W	120 °	Flat	25 °C	1.92 A	Linear Light Strip	2690 lm	98
