BXDR-30 Series
Manufacturer: BRIDGELUX
Beta
⌘K

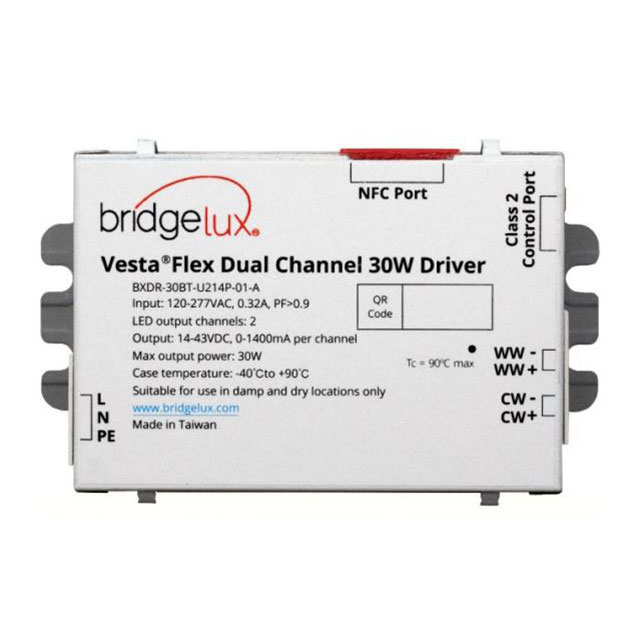

DRIVER MODULE, PWM, RJ45, 30W, BRICK ROHS COMPLIANT: YES
| Part | Mounting Type | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Termination Style | Topology | Power (Watts) | Voltage - Output [Max] | Voltage - Output [Min] | Features | Type | Voltage - Input (Max) [Max] | Number of Outputs | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BRIDGELUX | Chassis Mount | 1.4 A | 120 VAC | 77 mm | 3.03 in | 30 mm | 130 mm | 5.12 in | 1.18 in | Terminal Block | AC DC Converter | 30 Watts | 43 V | 14 V | OTP OVP SCP | Constant Current | 277 VAC | 2 | CE cURus | 45 °C | -20 ░C | 88 % |
