BXEB-L0340 Series
Manufacturer: BRIDGELUX
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

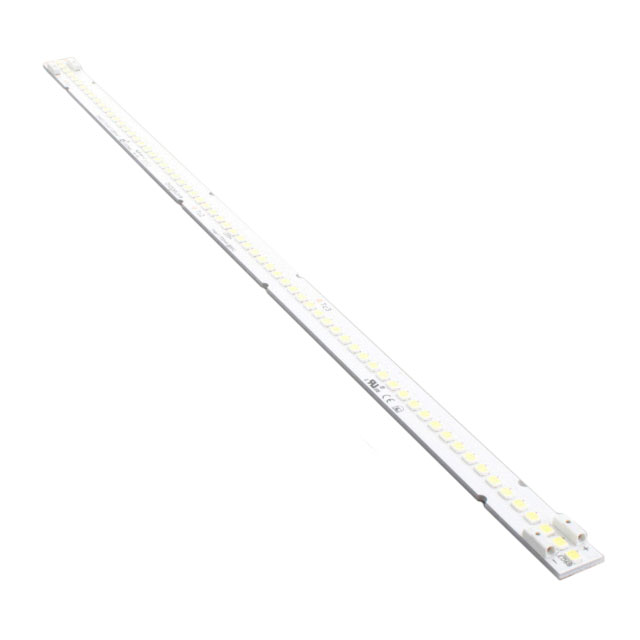

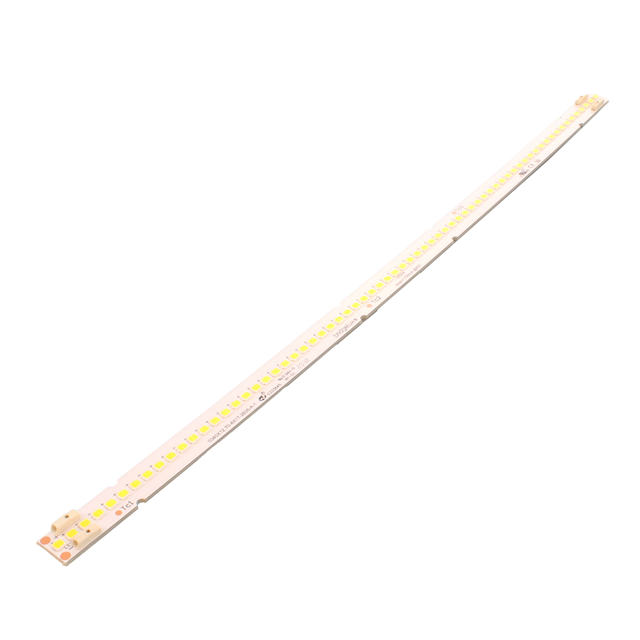

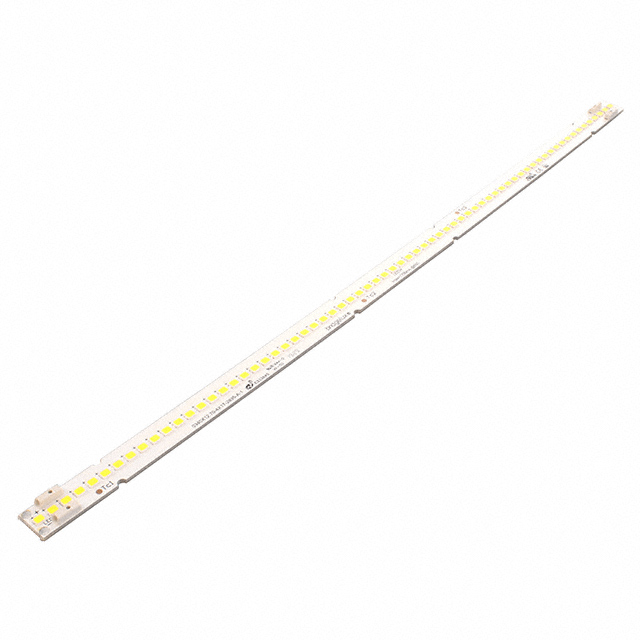

LED MOD EB SER WH LNR STRP 4000K
| Part | Viewing Angle | Current - Test | Color | Voltage - Forward (Vf) (Typ) | Type | Current - Max | Lens Type | CCT (K) | CCT Description | Temperature - Test | Configuration | Luminous Flux (Typical) | Height | Lumens/Watt | CRI (Color Rendering Index) | Features | Size / Dimension Length | Size / Dimension Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BRIDGELUX | 120 ° | 700 mA | Neutral White | 10.9 V | LED Module | 1.7 A | Flat | 4000 K | 3-Step MacAdam Ellipse | 25 °C | Linear Light Strip | 1530 lm | 4.3 mm | 200 lm/W | 80 | With Connector | 340 mm | 0.5 in |
 BRIDGELUX | 120 ° | 700 mA | Warm White | 10.9 V | LED Module | 1.7 A | Flat | 3500 K | 3-Step MacAdam Ellipse | 25 °C | Linear Light Strip | 1425 lm | 4.3 mm | 186 lm/W | 80 | With Connector | 340 mm | 0.5 in |
 BRIDGELUX | 120 ° | 700 mA | Warm White | 10.9 V | LED Module | 1.7 A | Flat | 3000 K | 3-Step MacAdam Ellipse | 25 °C | Linear Light Strip | 1425 lm | 4.3 mm | 186 lm/W | 80 | With Connector | 340 mm | 0.5 in |
 BRIDGELUX | 120 ° | 700 mA | Cool White | 10.9 V | LED Module | 1.7 A | Flat | 5000 K | 3-Step MacAdam Ellipse | 25 °C | Linear Light Strip | 1530 lm | 4.3 mm | 200 lm/W | 80 | With Connector | 340 mm | 0.5 in |
