BXEB-L0590 Series
Manufacturer: BRIDGELUX
Beta
⌘K

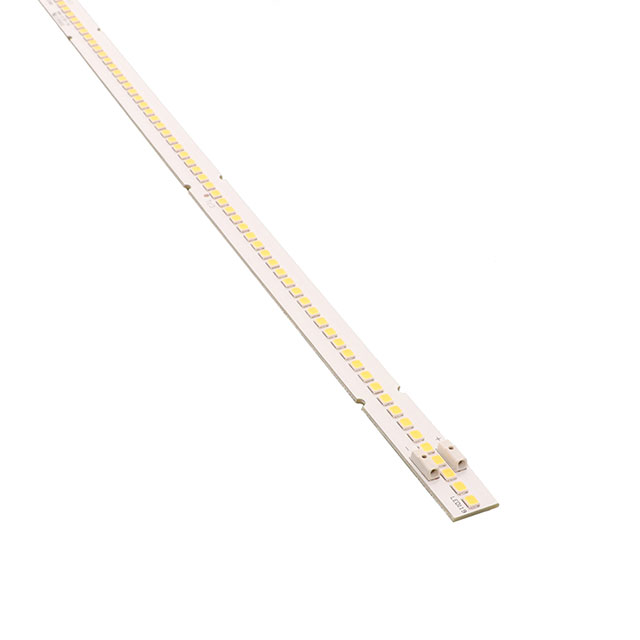

LED MOD EB SER WH LNR STRP 3500K
| Part | Luminous Flux (Typical) | Current - Test | Temperature - Test | Size / Dimension Length | Size / Dimension Width | Features | Height | Type | Voltage - Forward (Vf) (Typ) | Viewing Angle | Lens Type | Configuration | Color | CRI (Color Rendering Index) | CCT (K) | CCT Description | Lumens/Watt | Current - Max |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BRIDGELUX | 2490 lm | 700 mA | 25 °C | 590 mm | 0.5 in | With Connector | 4.3 mm | LED Module | 19.1 V | 120 ° | Flat | Linear Light Strip | Warm White | 80 | 3500 K | 3-Step MacAdam Ellipse | 186 lm/W | 1.7 A |
