BXDR-60 Series

Manufacturer: BRIDGELUX

Catalog

DRIVER MODULE, PWM, RJ45, 60W, BRICK ROHS COMPLIANT: YES

Part	Mounting Type	Number of Outputs	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Features	Voltage - Input (Max) [Max]	Approval Agency	Topology	Efficiency	Voltage - Output [Min]	Voltage - Output [Max]	Type	Termination Style

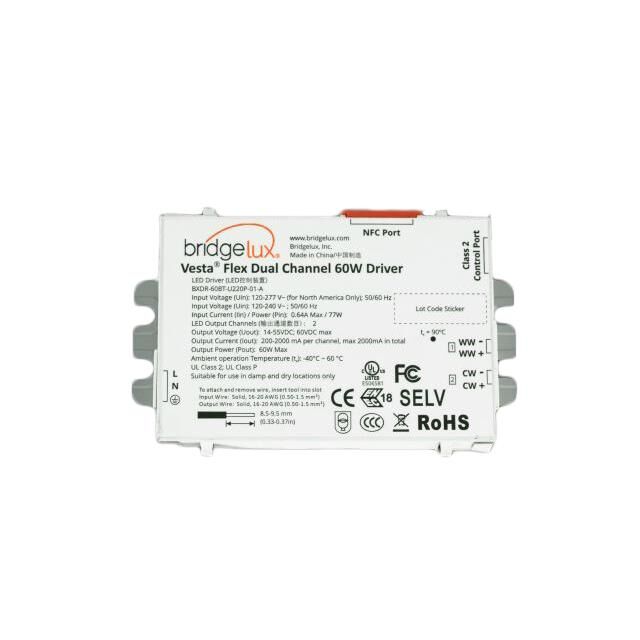

BRIDGELUX BXDR-60BT-U220P-01-A	Chassis Mount	2	60 W	45 °C	-20 ░C	77 mm	3.03 in	30 mm	130 mm	5.12 in	1.18 in	2 A	120 VAC	OTP OVP SCP	277 VAC	CE cURus	AC DC Converter	88 %	14 V	57 V	Constant Current	Terminal Block

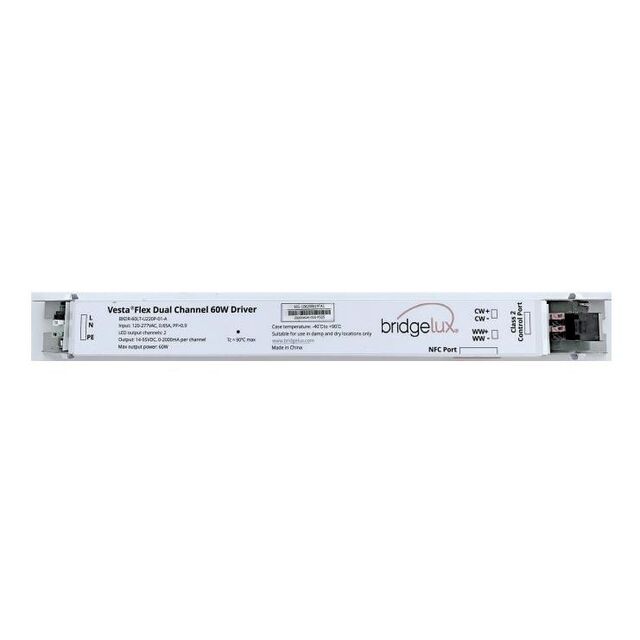

BRIDGELUX BXDR-60LT-U220P-01-A	Chassis Mount	2	60 W	45 °C	-20 ░C	32 mm	1.26 in	28 mm	320 mm	12.6 "	1.1 in	2 A	120 VAC	OTP OVP SCP	277 VAC	CE cURus	AC DC Converter	88 %	14 V	57 V	Constant Current	Terminal Block
