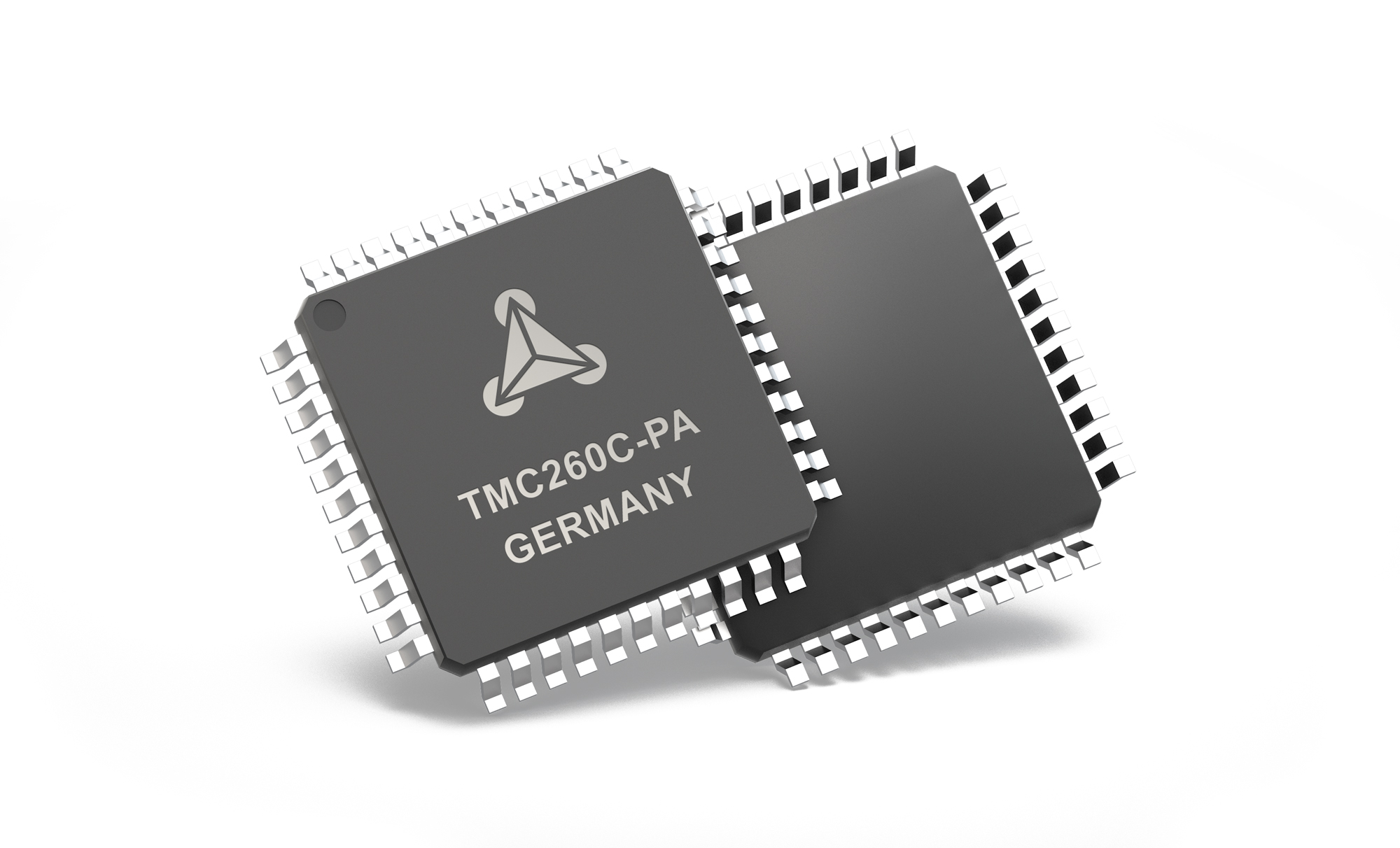

The TMC260 provides an integrated motor driver solution for Laboratory Automation, 3D-Printing, Scanners and other automated equipment applications. The device has an integrated microstepping indexer, the sensorless stall detection technology StallGuard2™ and the sensorless load dependent current control CoolStep™ and is intended to drive a bipolar stepper motor. The output driver block consists of low RDSon TrenchFET power MOSFETs configured as full H-bridges to drive the motor windings. The TMC260 is capable of driving up to 2A of current from each output (with proper heatsinking). TMC260 is designed for a supply voltage of 9 to 40V. The device has a SPI interface for configuration and diagnostics and a step and direction interface.ApplicationsTextile, Sewing MachinesFactory AutomationLab AutomationLiquid HandlingMedicalOffice AutomationPrinter and ScannerCCTV, SecurityATM, Cash recyclerPOSPumps and ValvesHeliostat ControllerCNC Machines

The TMC4361 is a stepper motor servo controller with S-shaped ramps for laboratory automation, 3D-printing, scanners and other automated equipment applications. The device is usable as a trapezoidal and advanced SixPoint™ ramp generator. Furthermore the TMC4361 is powered by ADI Trinamic DcStep™, closed loop control and ChopSync™ technology. The device is designed for an operating voltage of 3.3V or 5V. The TMC4361 provides a SPI controller and SPI, S/D driver interface. Additionally it has an a/b/n incremental, SPI and SSI encoder interface.APPLICATIONS:Textile, sewing machinesCCTV, securityPrinters, scannersATM, cash recyclerOffice automationPOSFactory automationLab automationPumps and valvesHeliostat controllersCNC machinesRobotics

The TMC457 is a stepper and piezo motor servo controller with S-shaped ramps for laboratory automation, 3D-printing, scanners and other automated equipment applications. The device is usable as a trapezoidal ramp generator. Furthermore the TMC457 is powered by ADI Trinamic ChopSync™technology. The device is designed for an operating voltage of 1.5V and 3.3V. The TMC457 provides a SPI controller and SPI, S/D driver interface. Additionally it has an a/b/n incremental encoder interface.Applications:Medical and laboratory equipment with high-speed motion e.g., for liquid handlingHigh end placement and positioning systems / High reliability drivesSub-micrometer positioning (piezo motors)Active stabilization with incremental encoder and fast PID regulator

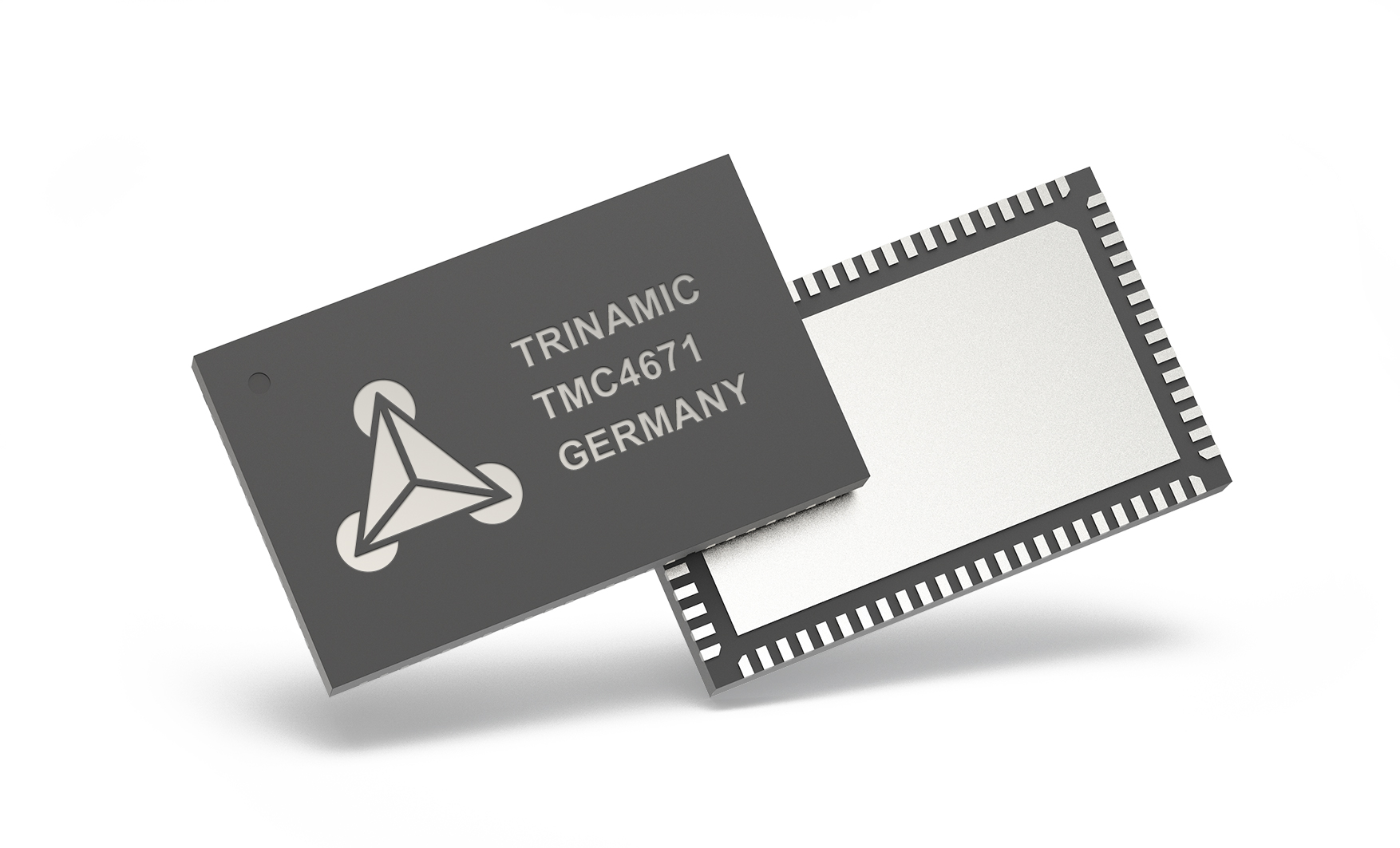

The TMC4671 is a fully integrated servo controller, providing Field Oriented Control (FOC) for BLDC/PMSM and 2-phase stepper motors as well as DC motors and voice coils. All control functions are implemented in hardware. Integrated ADCs, position sensor interfaces, position interpolators, enable a fully functional servo controller for a wide range of servo applications.If you like to see a step by step guide on driving a linear stage with the TMC4671, please visit the blog post where one of ADI Trinamic's Engineers explains in 3 posts how to set up your linear stage, how to tune the controller using the TMCL-IDE, and how to adapt the firmware to your own project.Quick Setup GuideAPPLICATIONS:RoboticsPick and Place MachinesFactory AutomationE-MobilityLaboratory AutomationBlowersPumps

The TMC5031 cDriver™ is an integrated motor driver and motion controller solution for CCTV cameras, pumps and other automated equipment applications. The device has two integrated SixPoint™ ramp controllers, microstepping indexers and the sensorless stall detection technology StallGuard2™ and is intended to drive two bipolar stepper motor. The output driver blocks consists of low RDSon N-Channel power MOSFETs configured as full H-bridges to drive the motor windings. The TMC5031 is capable of driving up to 1.5A of current from each output (with proper heatsinking). TMC5031 is designed for a supply voltage of 5 to 16V. The device provides a SPI interface for configuration and diagnostics and a step and direction interface.APPLICATIONS:CCTV, SecurityAntenna PositioningHeliostat ControllerBattery powered applicationsOffice AutomationATM, Cash recycler, POSLab AutomationLiquid HandlingMedicalPrinter and ScannerPumps and Valves
