The TMC2100 provides an integrated motor driver solution for 3D-Printing, Cameras, Scanners and other automated equipment applications. The device has an integrated microstepping indexer, the completely noiseless current control mode StealthChop™ and is intended to drive a bipolar stepper motor. The output driver block consists of low RDSon N-Channel power MOSFETs configured as full H-bridges to drive the motor windings. The TMC2100 is capable of driving up to 2.5A of current from each output (with proper heatsinking). TMC2100 is designed for a supply voltage of 5...46V. The device has a step and direction interface and can be configured with digital pins.Applications3D printersTextile, Sewing MachinesOffice AutomationConsumer, HomeCCTV, SecurityATM, Cash recyclerPOSPrinters & Scanners

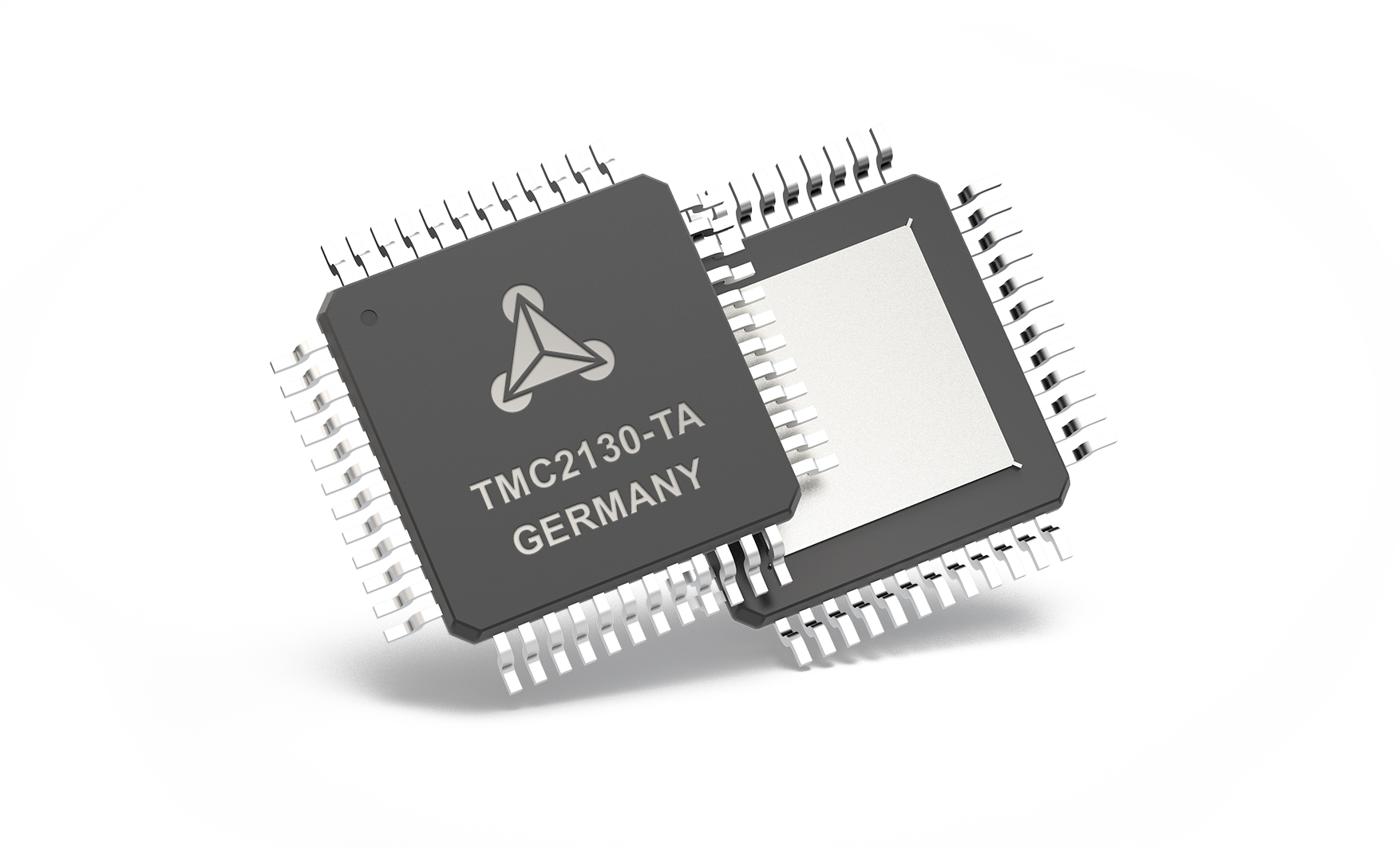

The TMC2130 provides an integrated motor driver solution for 3D-Printing, Cameras, Scanners and other automated equipment applications. The device has an integrated microstepping indexer, the sensorless stall detection technology StallGuard2™, the sensorless load dependent current control CoolStep™ and the completely noiseless current control mode StealthChop™ and is intended to drive a bipolar stepper motor. The output driver block consists of low RDSon N-Channel power MOSFETs configured as full H-bridges to drive the motor windings. The TMC2130 is capable of driving up to 2.5A of current from each output (with proper heatsinking). TMC2130 is designed for a supply voltage of 5 to 46V. The device has a SPI interface for configuration and diagnostics and a step and direction interface.ApplicationsTextile, Sewing MachinesFactory & Lab Automation3D printersLiquid HandlingMedicalOffice AutomationCCTV, SecurityATM, Cash recyclerPOSPumps and Valves

The TMC2202 provides an integrated motor driver solution for 3D-Printing, Cameras, Scanners and other automated equipment applications. The device has an integrated microstepping indexer, the completely noiseless current control mode StealthChop2™ and is intended to drive a bipolar stepper motor. The output driver block consists of low RDSon N-Channel power MOSFETs configured as full H-bridges to drive the motor windings. The TMC2202 is capable of driving up to 2A of current from each output (with proper heatsinking). TMC2202 is designed for a supply voltage of 5 to 36V. The device has a step and direction interface and can be configured with digital pins.TMC2202-WA uses a wettable flank package to allow optical inspection of the soldering joints.APPLICATIONSCompatible Design Upgrade3D PrintersPrinters, POSOffice and home automationTextile, Sewing MachinesCCTV, SecurityATM, Cash recyclerHVA

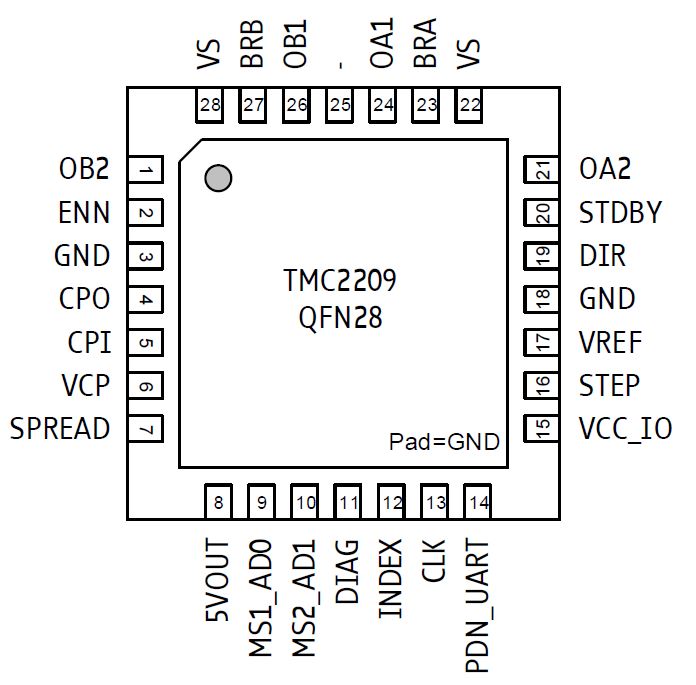

The TMC2209 is an ultra-silent motor driver IC for two phase stepper motors.ADI Trinamic's sophisticated StealthChop2™chopper ensures noiseless operation, maximum efficiency and best motor torque. Its fast current regulation and optional combination with SpreadCycle™allow highly dynamic motion while adding StallGuard4™for sensorless homing. The integrated power MOSFETs handle motor currents up to 2A RMS with protection and diagnostic features for robust and reliable operation. A simple to use UART interface opens up tuning and control options. Store application tuning to OTP memory. Industries’ most advanced Step/Dir stepper motor driver family upgrades designs to noiseless and most precise operation for cost-effective and highly competitive solutions.ApplicationsCompatible Design Upgrade3D PrintersPrinters, POSOffice and home automationTextile, Sewing MachinesCCTV, SecurityATM, Cash recyclerHVACBattery Operated Equipment

The TMC2210 is a high-performance stepper motor driver IC with configuration options via package pins and additional diagnostic outputs. It combines industries’ most advanced stepper motor driver based on the 256 microsteps built-in indexer and two fully integrated 36V, 3.0A (max) H-Bridges plus non-dissipative Integrated Current Sensing (ICS). ADI Trinamic's StealthChop2™chopper ensures absolutely noiseless operation combined with maximum efficiency and best motor torque. High integration, high energy efficiency, and a small form factor enable miniaturized and scalable systems for cost effective solutions while giving best in class performance.APPLICATIONSIOT & Handheld devicesBattery operated motorsPrinters, POSToysOffice and home automationCCTV, SecurityHVACMobile medical devices
